Doughty Doughty Hook Clamp

Doughty Doughty Hook Clamp

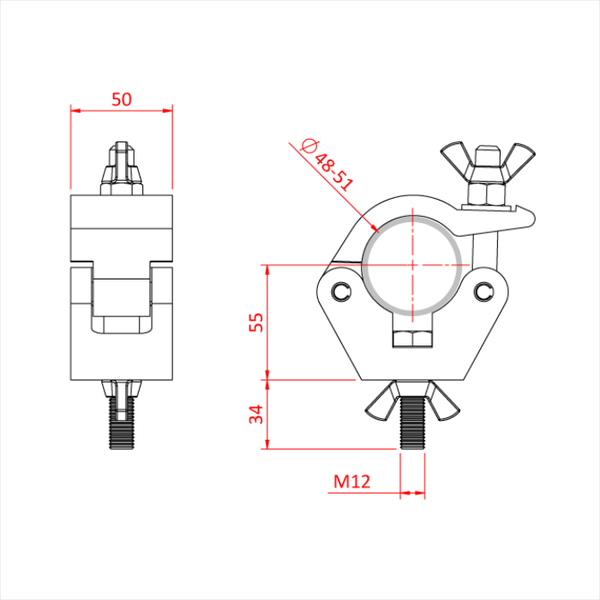

The industry standard half coupler. A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89” – 2.01”) diameter tubes. It has a WLL of 750Kg and is 50mm (1.97″) wide. Slotted to hold captive an M12 nut or bolt head and supplied with an M12 X 30 bolt and wing nut. Ideal for trussing as it will not damage the cords.

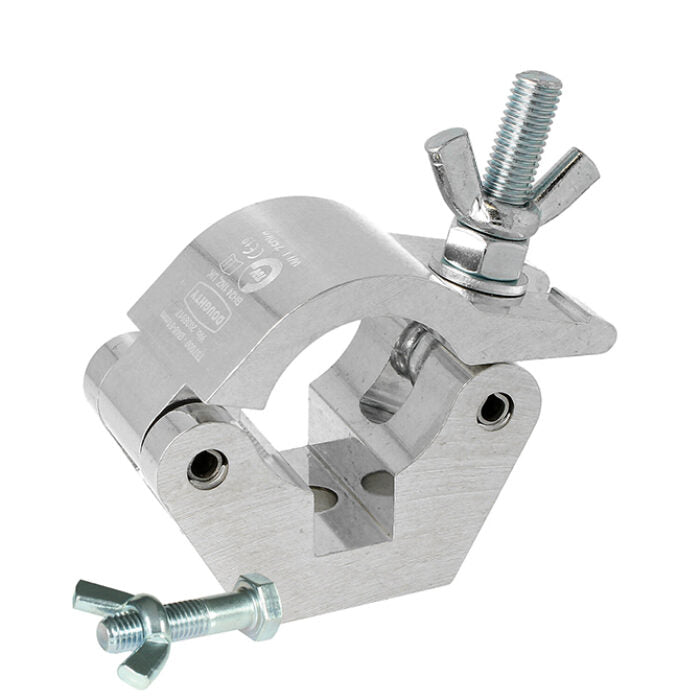

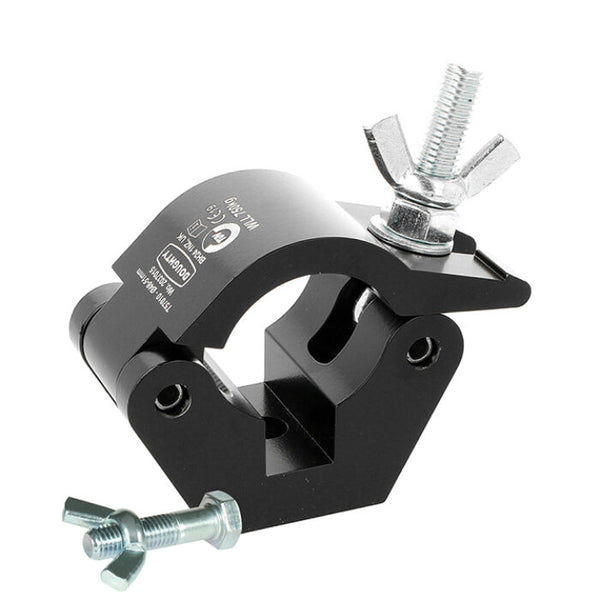

Available in polished silver or powder coated black.

Downloads:

User Manual

Key Features:

• High tensile extruded aluminium construction
• Compatible with 48mm to 51mm (1.89” – 2.01”) diameter tubes
• WLL of 750Kg for secure load support
• Slotted design to hold captive an M12 nut or bolt head
• Supplied with M12 X 30 bolt and wing nut

Specifications:

• WLL: 750kg
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 50mm (1.97")
• Material: High tensile extruded aluminium
• Finish: Polished silver or powder coated black

References:

• Doughty Engineering Product Range
• T57200-T57201 Technical Data Sheet
• Industry Standard Half Coupler
