Doughty 35mm Atom Half Coupler
Product No. T58900
Save $25 when you subscribe to our newsletter (for orders over $250).
Subscribe now
Shipping calculator
Please enter correct zip code
Payment methods
Product details
Doughty 35mm Atom Half Coupler

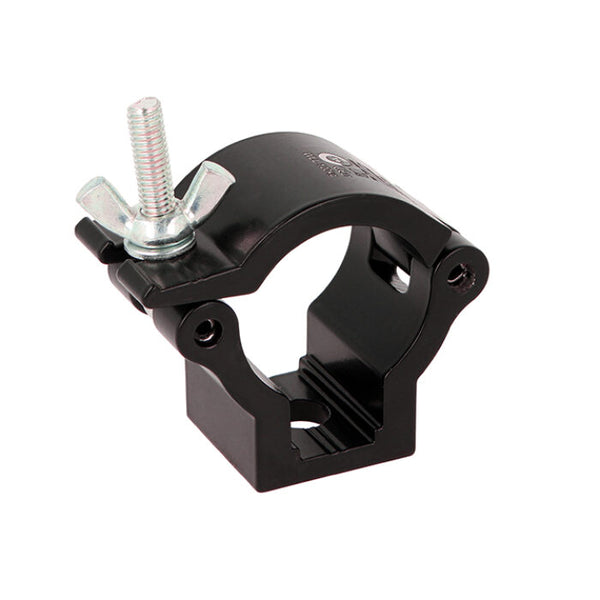

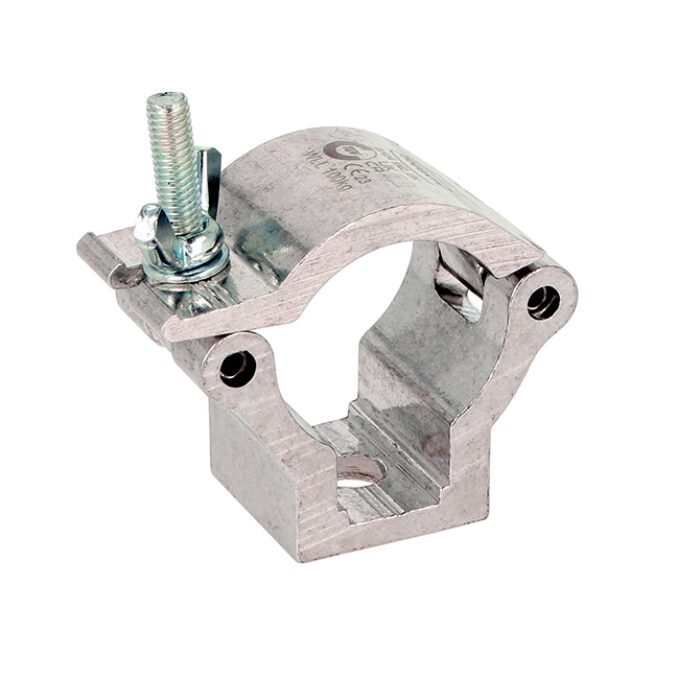

A high tensile extruded aluminium clamp that is suitable for 35mm (1.38″) diameter tubes. It has a WLL of 100Kg and is 30mm (1.18″) wide. Slotted to hold captive an M8 or M10 nut or bolt head. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.
Downloads:
Key Features:
- High tensile extruded aluminium construction
- Compatible with 35mm (1.38″) diameter tubes
- Working Load Limit (WLL) of 100Kg
- Slotted design to hold captive M8 or M10 nut or bolt head
- Available in polished silver or powder coated black finish

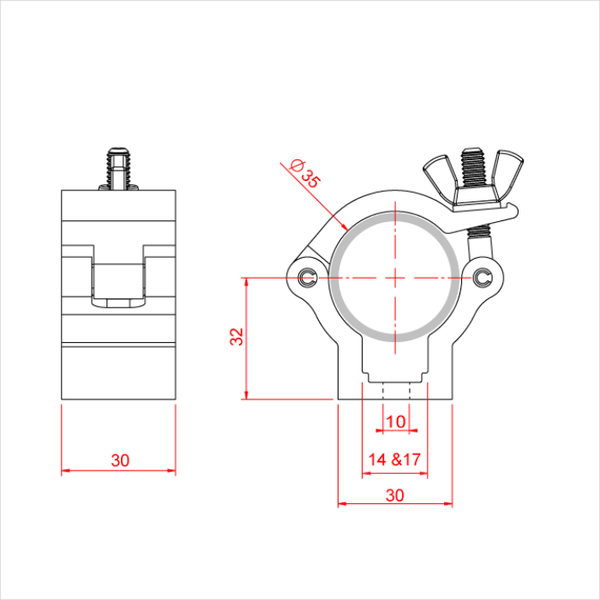

Specifications:
- WLL: 100Kg
- Tube Diameter: 35mm (1.38")
- Clamp Width: 30mm (1.18")
- Material: High tensile extruded aluminium
- Nut/Bolt Compatibility: M8 or M10
References:
- Doughty Engineering Official Data Sheet
- Product Code: T58900 / T5890001
- Decorative Trussing Applications
