Doughty 35mm Atom 90° Fixed Coupler
Product No. T58915
Save $25 when you subscribe to our newsletter (for orders over $250).
Subscribe now
Shipping calculator
Please enter correct zip code
Payment methods
Product details

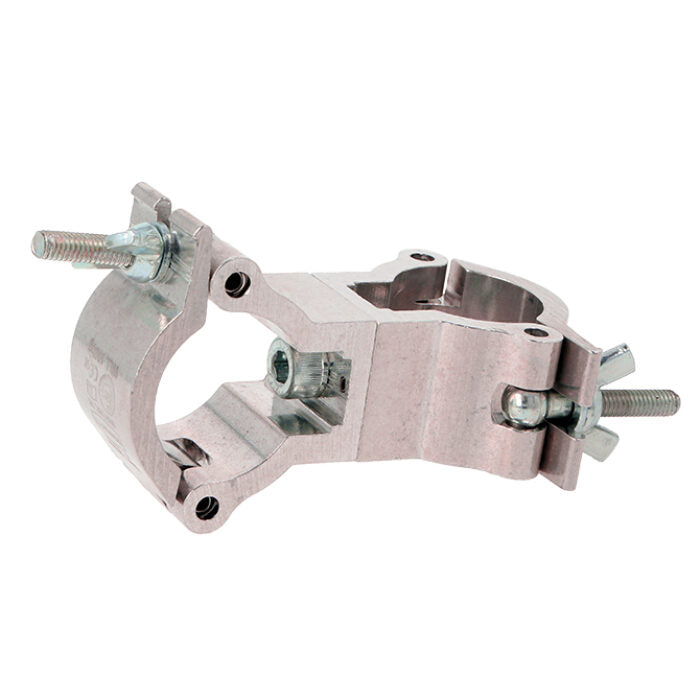

Doughty 35mm Atom 90° Fixed Coupler
Consists of a pair of high tensile extruded aluminium clamps back to back, locked parallel that are suitable for 35mm (1.38″) diameter tubes.
It has a WLL of 100Kg and uses a pair of 30mm (1.18″) wide clamps. Ideal for decorative trussing as it will not damage the cords.

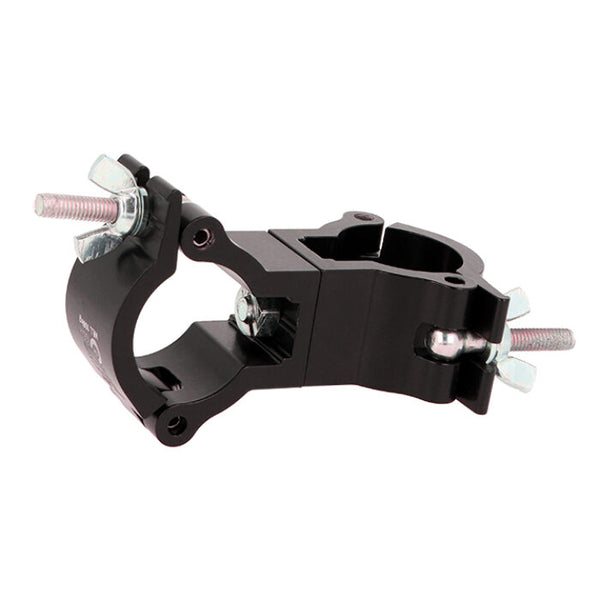

Available in polished silver or powder coated black.
Downloads:
Key Features:
- High tensile extruded aluminium construction
- Designed for 35mm (1.38″) diameter tubes
- 90° fixed coupler with parallel back-to-back clamps
- Will not damage decorative trussing cords
- Available in polished silver or powder coated black
Specifications:
- WLL: 100Kg
- Tube Diameter: 35mm (1.38")
- Clamp Width: 30mm (1.18")
- Material: High tensile extruded aluminium
- Configuration: Fixed 90° back-to-back clamps
References:
- Doughty Engineering official product line
- Suitable for decorative trussing applications
- Refer to user manual for technical specifications
