Doughty 32mm Atom Swivel Coupler

Product No. T58900

COLOUR
Save $25 when you subscribe to our newsletter (for orders over $250). Subscribe now
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Product details

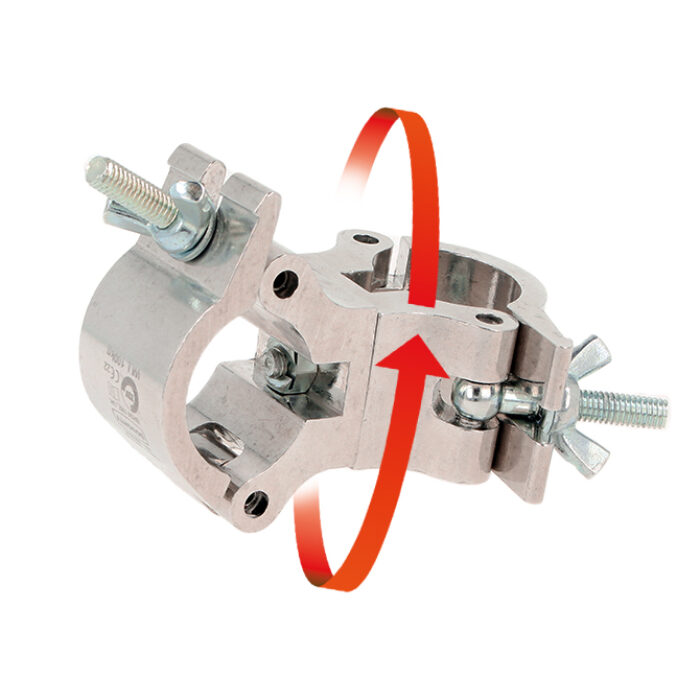

Doughty 32mm Atom Swivel Coupler


Consists of a pair of high tensile extruded aluminium clamps back to back and designed to swivel that are suitable for 32mm (1.25″) diameter tubes. It has a WLL of 100Kg and uses a pair of 30mm (1.18″) wide clamps. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.


Downloads:

User Manual




Key Features:

  • High tensile extruded aluminium construction
  • Swivel design for versatile positioning
  • Compatible with 32mm (1.25″) diameter tubes
  • Clamp width of 30mm (1.18″) ensures secure fit

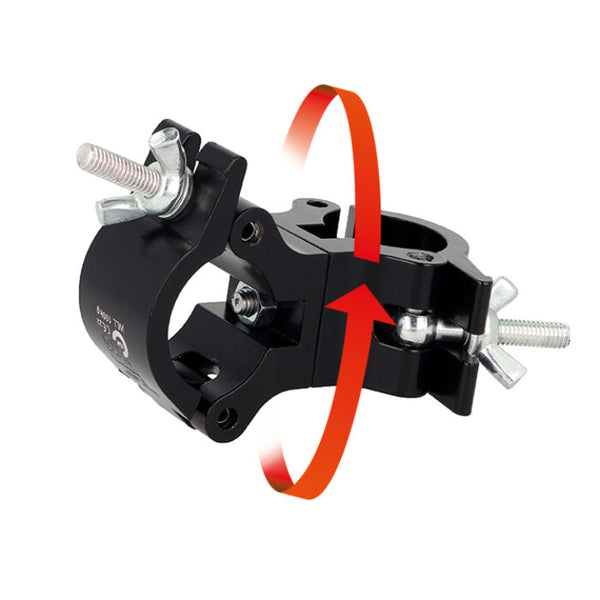

  • Available in polished silver or powder coated black

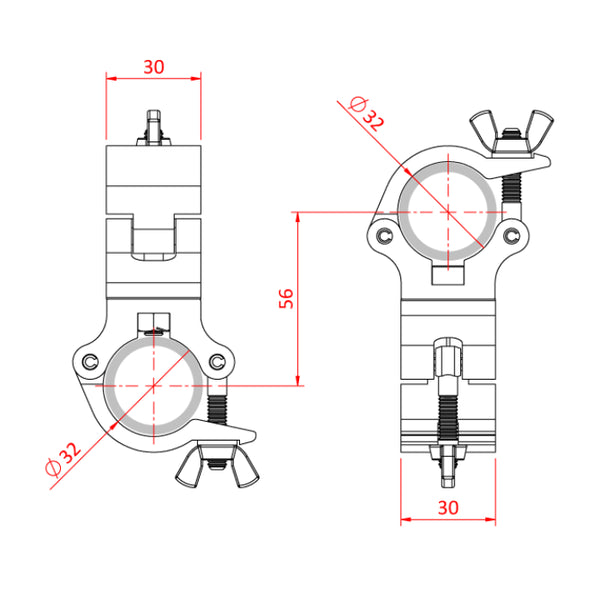

Specifications:

  • WLL: 100Kg
  • Tube Diameter: 1¼"-32mm
  • Clamp Width: 30mm (1.18")
  • Tube Centres: 56mm (2.20")
  • Material: High tensile extruded aluminium



References:

  • Doughty Engineering Official Product Line
  • Product Data Sheet
  • Industry Standard for Decorative Trussing
