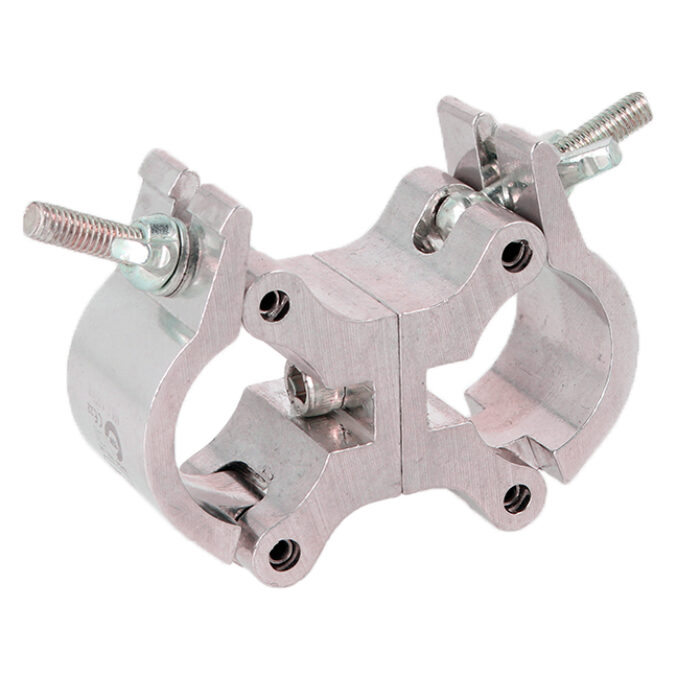

Doughty 32mm Atom Parallel Coupler
Consists of a pair of high tensile extruded aluminium clamps back to back locked in parallel that are suitable for 32mm (1.25″) diameter tubes. It has a WLL of 100Kg and uses a pair of 30mm (1.18″) wide clamps. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.
Downloads:
Key Features:
- High tensile extruded aluminium construction
- Designed for 32mm (1.25″) diameter tubes
- Back-to-back parallel clamp design
- Will not damage decorative truss cords

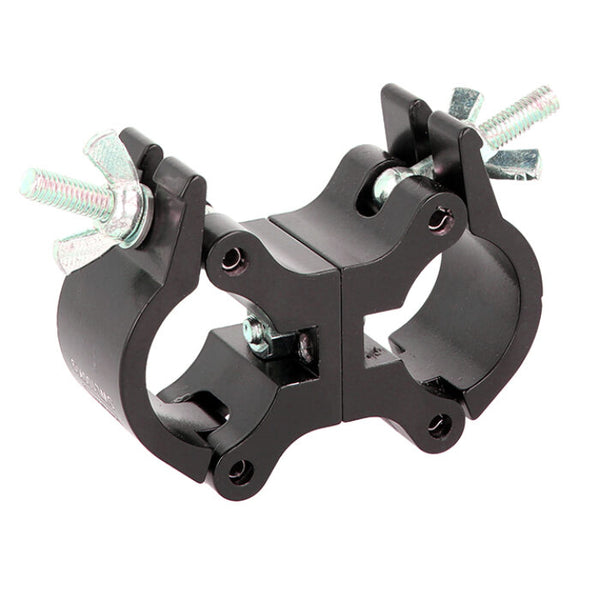

- Available in polished silver or powder coated black

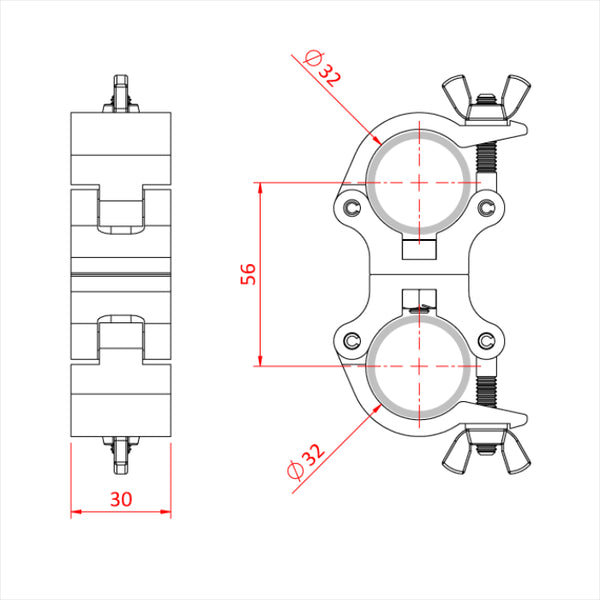

Specifications:
- WLL: 100Kg
- Tube Diameter: 1¼"-32mm
- Clamp Width: 30mm (1.18")
- Tube Centres: 56mm (2.20")
References:
- Doughty Engineering Official Data Sheet
- Product Code: T58815 / T5881501
- Mounting Accessory for Decorative Trussing
