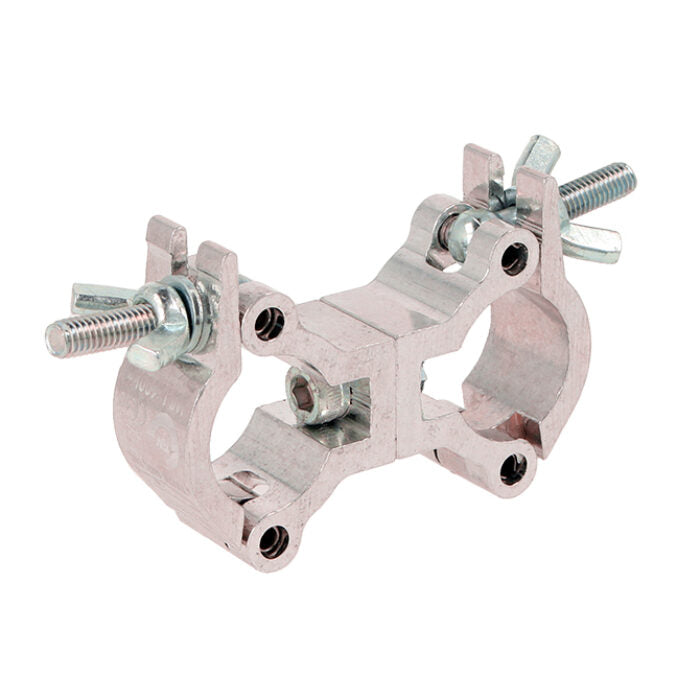

Doughty 25mm Atom Parallel Coupler
Consists of a pair of high tensile extruded aluminium clamps back to back locked in parallel that are suitable for 25mm (1″) diameter tubes. It has a WLL of 100Kg and uses a pair of 21mm (0.83″) wide clamps. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.
Downloads:
Key Features:
- High tensile extruded aluminium construction for durability
- Designed for 25mm (1″) diameter tubes
- Parallel back-to-back clamp configuration
- Ideal for decorative trussing applications

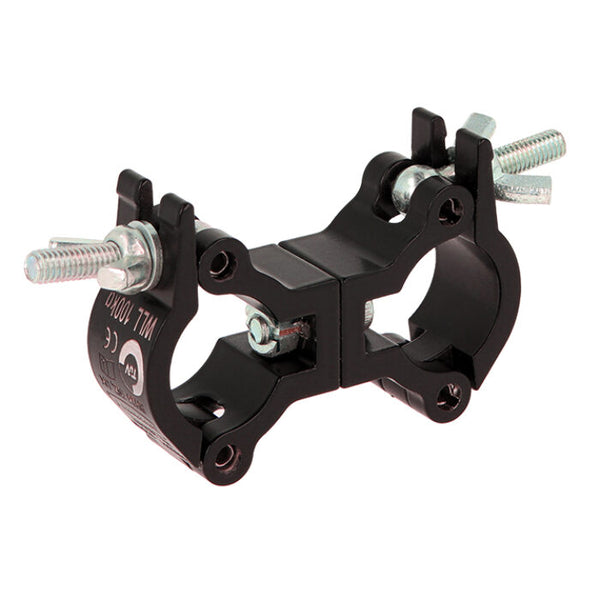

- Available in polished silver or powder coated black finish

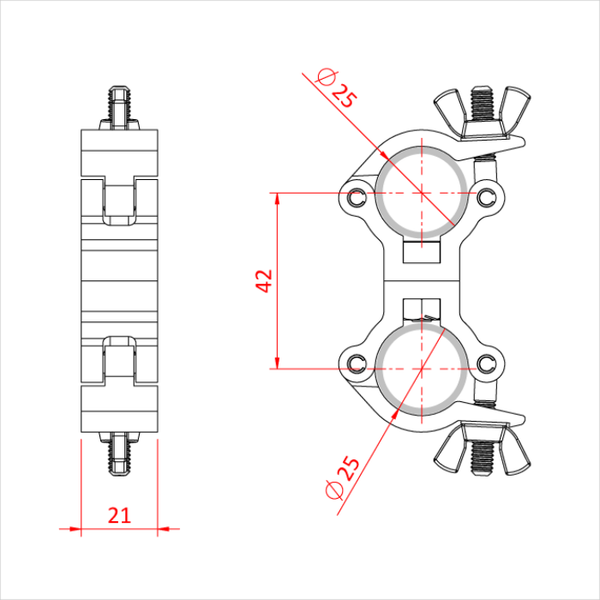

Specifications:
- WLL: 100Kg
- Tube Diameter: 1" - 25mm
- Clamp Width: 21mm (0.83")
- Material: High tensile extruded aluminium
- Finish Options: Polished silver or powder coated black
References:
- Doughty Engineering Manufacturer Specifications
- T58880-T5888001 Data Sheet
- Product Compatibility with 25mm Truss Systems
