• Galvanized Steel Cable and Anchorage Carabiner

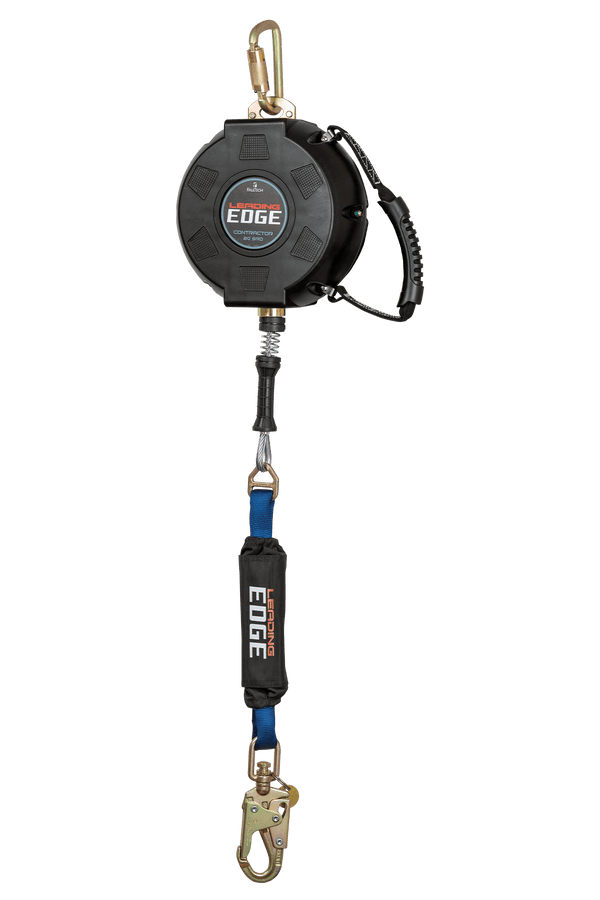

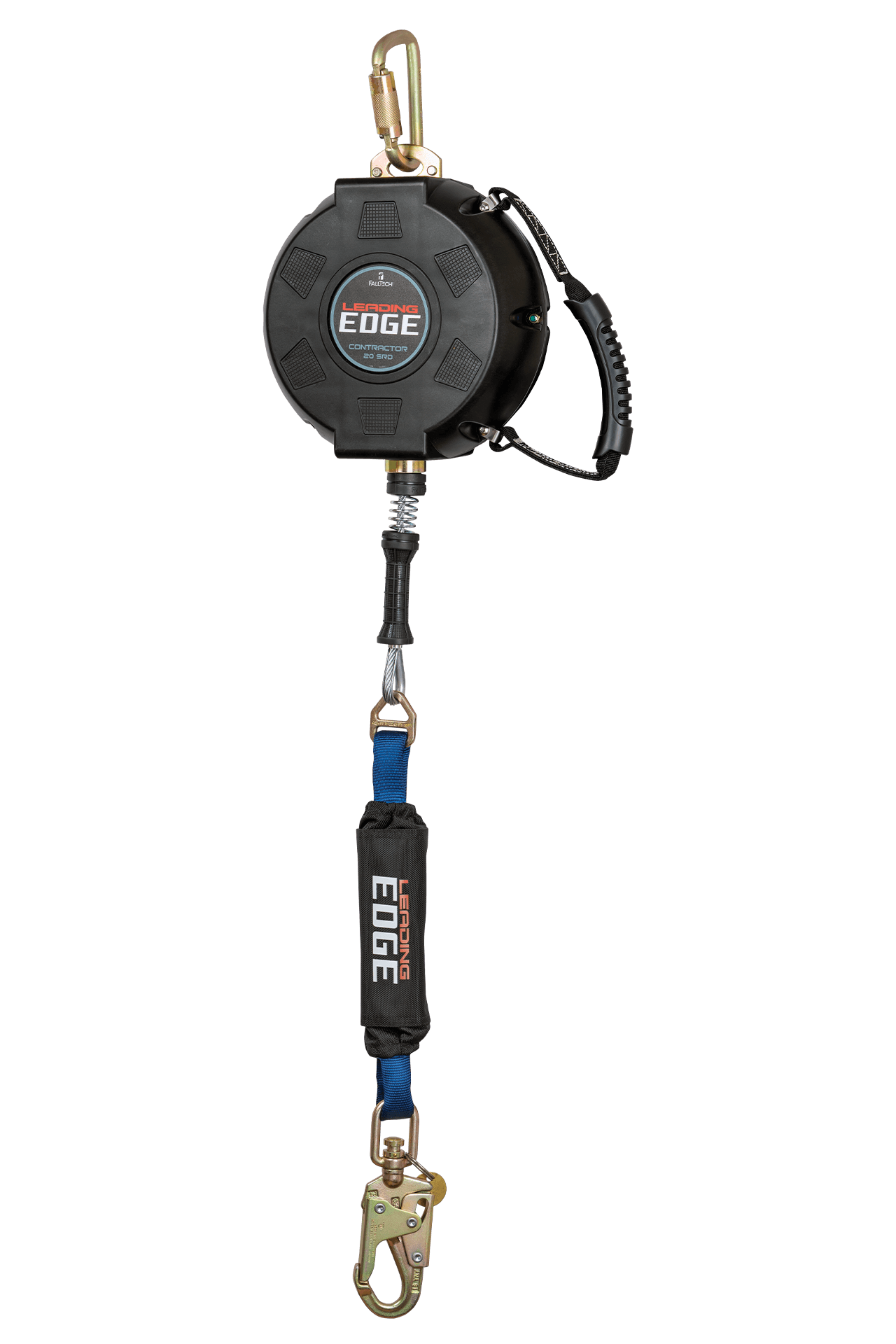

Contractor Leading Edge SRL with 20' Galvanized Steel Cable and Anchorage Carabiner

Product No. 727620LE

Regular price $553.44 USD
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_express apple_pay diners_club discover facebook_pay google_pay master shopify_pay visa
Product details

Contractor Leading Edge SRL with 20' Galvanized Steel Cable and Anchorage Carabiner

FEATURES

  • 7/32" galvanized steel cable lifeline with load-indicating swivel snap hook
  • Internal inertial braking system provides positive stopping action and uniform deceleration.
  • Integrated external ViewPack® energy absorber strengthens the braking system and preserves lifeline integrity
  • Durable glass-filled nylon housing extends service life
  • Integrated lifeline hand-grip simplifies dorsal connection and recoil spring helps prevent lifeline lock-up
  • Load-indicating snap hook provides visual fall event indication
  • Complies with ANSI Z359.14-2021 Class 2 SRL. Learn more and download White Paper

MATERIAL  SPECIFICATIONS

Cable:                                                 7/32" galvanized steel; 3,600 lb min. static strength
Energy Absorber:                              Polyester tear-away
Lifeline Connector:                           Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Anchorage Connector:                     Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

PERFORMANCE  SPECIFICATIONS

Static Strength:                             3,600 lb min.
ANSI SRL Class/Type:                  Class 2 SRL
Avg. Arrest Force:                         1,350 lb
Max. Arrest Force:                        1,800 lb
Max. Arrest Distance:                   42"
ANSI User Capacity:                     130 to 310 lb max.
OSHA User Capacity:                   130 to 310 lb max.

SIZES & PART NUMBERS

  • 727620LE - 20' (ANSI Compliant)
  • 727630LE - 30' (ANSI Compliant)
  • C727630LE - 30' (CSA Compliant)
  • 727650LE - 50' (ANSI Compliant)
  • C727650LE - 50' (CSA Compliant)

COMPLIANT WITH:

OSHA 1926.502 and 1910.66
ANSI Z359.14-2021
