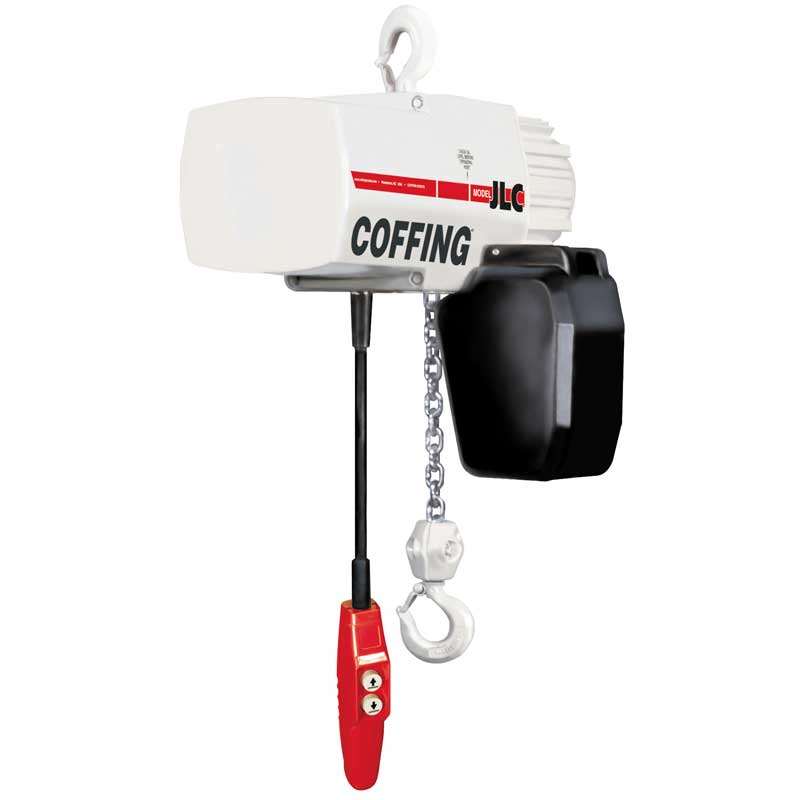

Coffing JLC Electric Chain Hoist - 1 Ton

Product No. JLC2016-1-10

No reviews
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_express apple_pay diners_club discover facebook_pay google_pay master shopify_pay visa
Product details

Coffing JLC Hook & Lug Suspension Models are designed for industrial duty performance. Compact in size, the JLC features a multiple disc motor brake, overload clutch, and chain end stop for safety.


  • Speed: 16 ft/min
  • Lifts Available: 10, 15, 20ft. Standard push button drop is 4-feet less than lift. CSA approved.
  • Voltages - 115/230 - single phase; 230/460 - three phase, 60 hertz
  • Limit switches adjustable to regulate upper and lower load travel. Brass nuts standard for improved repeatability and chain positioning.
  • Precision machined alloy steel gears run in oil bath for longer, quieter operation.
  • NEMA 3R Push button station ergonomic design fits operator's hand for thumb or two-handed operation. 24 Volt Control for operator safety.
  • Compact aluminum housing for portability and ease of installation.
  • Chain containers standard on lifts up to 20 ft. single chain / 10 ft. double chain.
  • Lifetime warranty


Model # CM Part # Voltage Lift (ft) Weight (lb)
JLC2016-1-10 08239W 115V Single Phase 10 94
JLC2016-1-15 08240W 115V Single Phase 15 98
JLC2016-1-20 08241W 115V Single Phase 20 102
JLC2016-3-10 08243W 230/460V 3 Phase 10 94
JLC2016-3-15 08244W 230/460V 3 Phase 15 98
JLC2016-3-20 08245W 230/460V 3 Phase 20 102
