  • Bolt-on D-ring Anchor

Bolt-on D-ring Anchor with Stainless Steel Installation Plate

Product No. 7414SS

Regular price $60.75 $60.75
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Product details

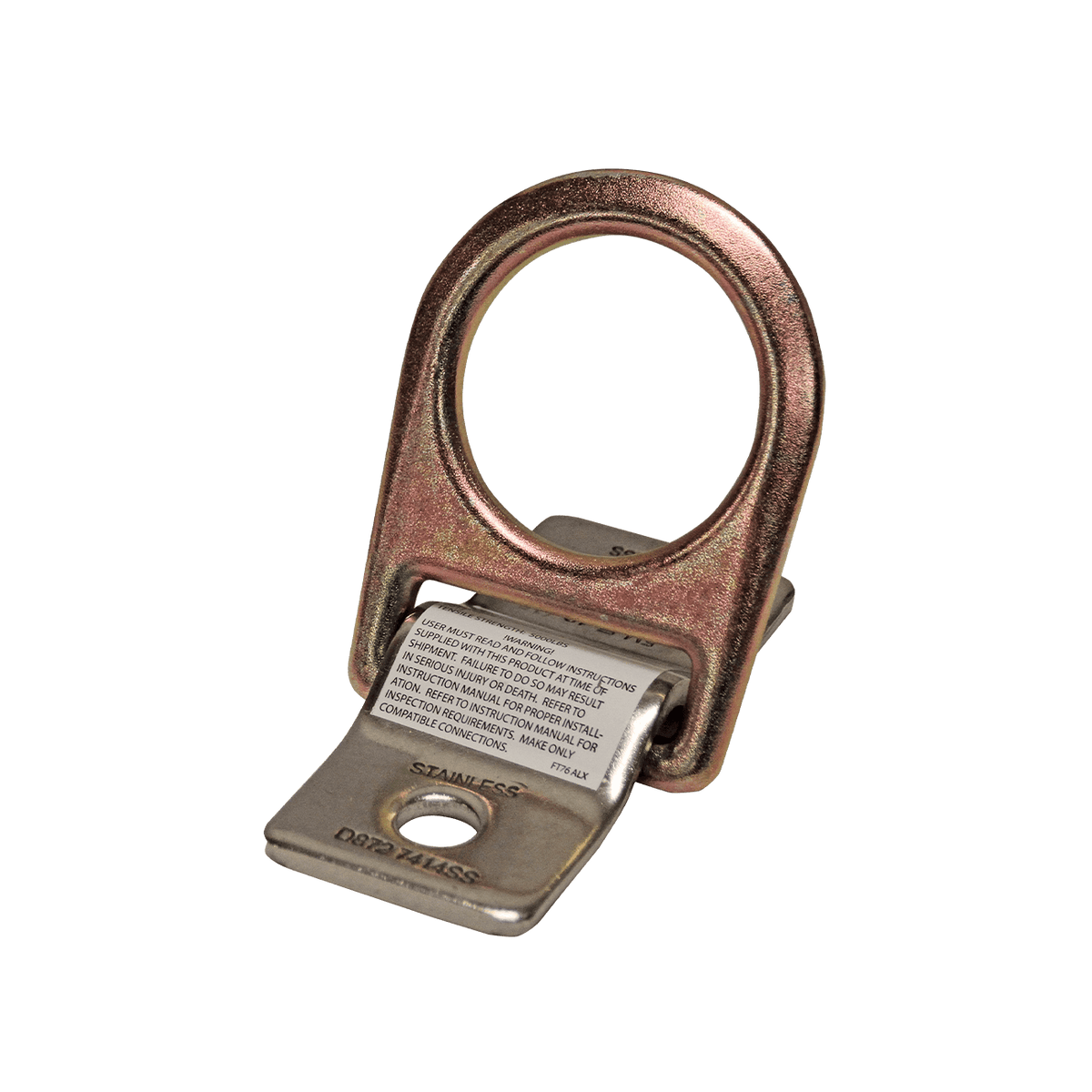

Bolt-on D-ring Anchor with Stainless Steel Installation Plate

FEATURES

  • Features 2" x 4-1/2" stainless steel anchoring plate and alloy steel D-ring
  • 1/2" bolt holes require user-supplied fasteners for fixed position installation.
  • Complies with ANSI Z359.18-2017

MATERIAL  SPECIFICATIONS

Installation Plate:               Stainless steel
D-ring:                                    Plated alloy; 5,000 lb min. static strength

PERFORMANCE  SPECIFICATIONS

Static Strength:                                 5,000 lb min.
ANSI User Capacity:                         130 to 310 lb max.
OSHA User Capacity:                       130 to 425 lb max.

DOWNLOADS

Instruction Manual
Declaration of Conformity

COMPLIANT WITH:

ANSI Z359.18-2017
OSHA 1926.502 and 1910.66
