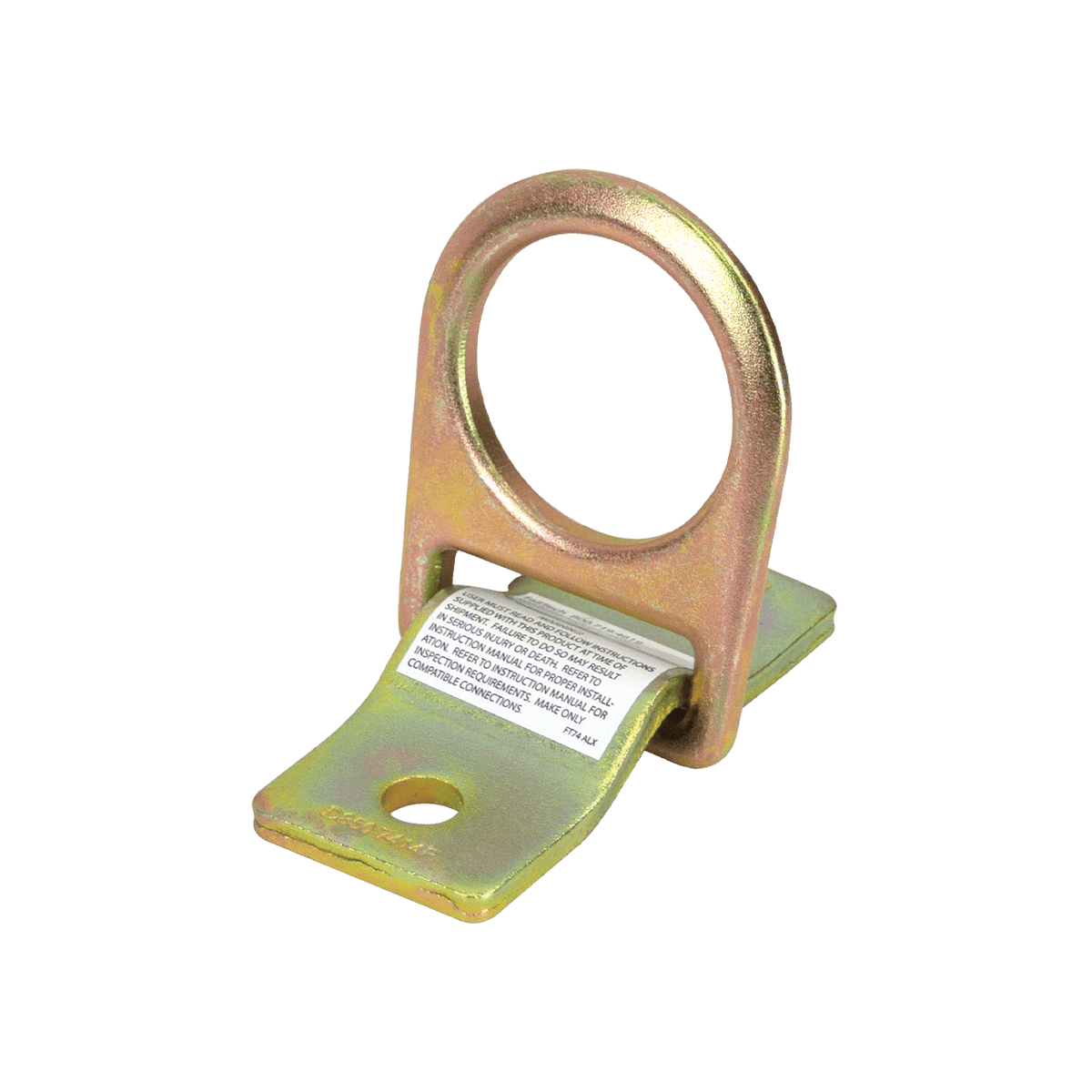

Bolt-on D-ring Anchor with Installation Plate

FEATURES

  • Features 2" x 4-1/2" alloy steel anchoring plate and D-ring
  • 1/2" bolt holes require user-supplied fasteners for fixed position installation.
  • Complies with ANSI Z359.18-2017

MATERIAL SPECIFICATIONS

Installation Plate: Plated alloy steel
D-ring: Plated alloy; 5,000 lb min. static strength

PERFORMANCE SPECIFICATIONS

Static Strength: 5,000 lb min.
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 425 lb max.

DOWNLOADS

Instruction Manual
Declaration of Conformity

COMPLIANT WITH:

ANSI Z359.18-2017
OSHA 1926.502 and 1910.66
