AMH Cable Puller (1700/3400 Lb, 20/10 Ft) / (1000/2000 Lb, 15/7.5 Ft)

Product No. C3400-3H

Regular price $238.00 USD
MODEL
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_express apple_pay diners_club discover facebook_pay google_pay master shopify_pay visa
Product details

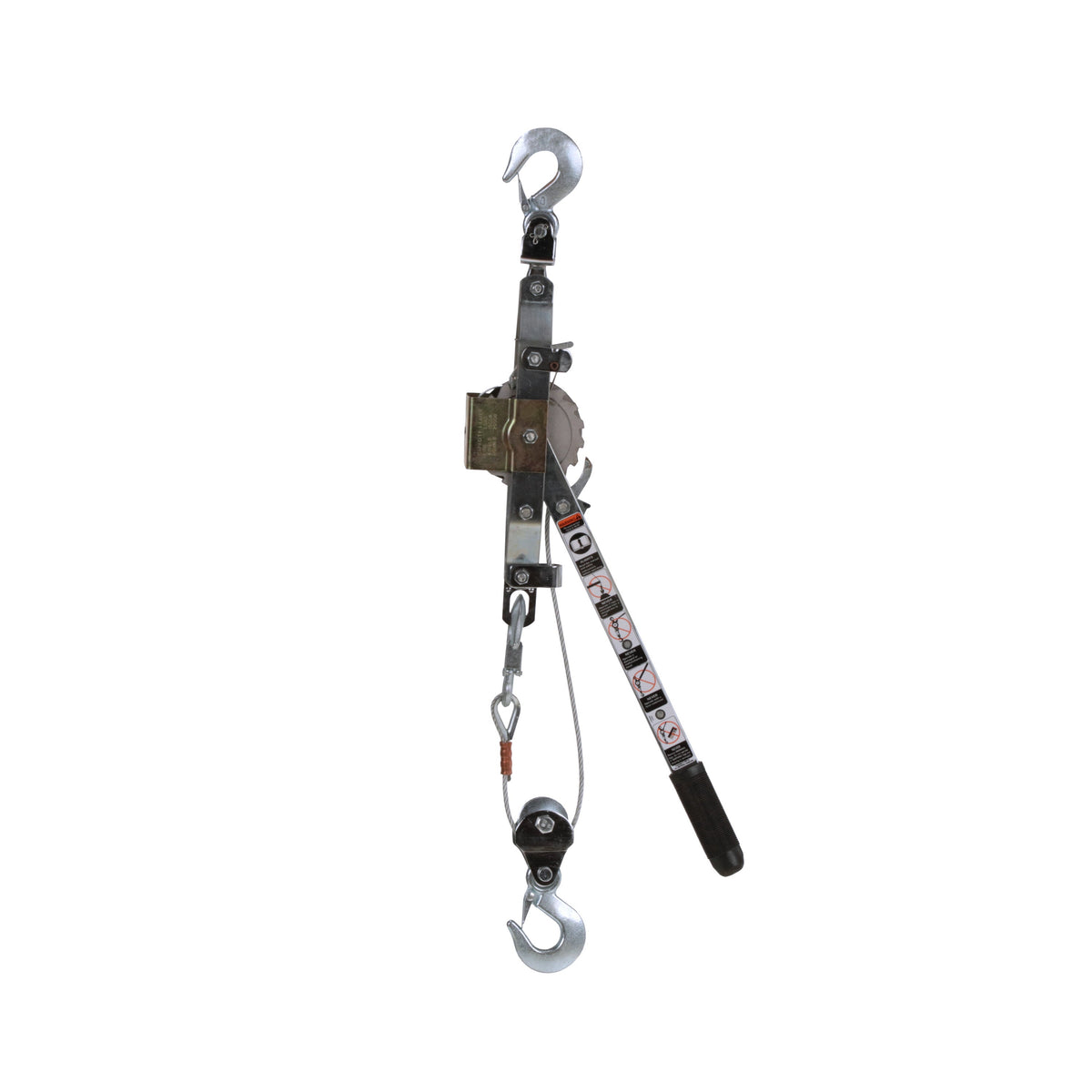

AMH Cable Puller (C3400 model) or (P2000 model)



AMH Cable Puller 1000/2000 Lb, 15/7.5 Ft (C3400 model) features a 3-hook design that allows for 1 or 2 part rigging, providing users with a choice of capacity and lift. The galvanized aircraft quality wire rope, stainless springs, and plated external parts offer excellent resistance to corrosion. The C3400 model boasts a lightweight aluminum frame, while the P2000 model (1000/2000 Lb, 15/7.5 Ft) has a formed steel frame. Both models feature a one-piece cast aluminum drum.

The C3400 model also comes equipped with an overload indicating reversible handle that can be easily adjusted to ensure that the pull is always possible in the right direction against the load. Additionally, the handle on the C3400 model is designed to bend noticeably when overloaded. Safety latches on alloy steel load hooks provide added security during use.

This product features a "one notch at a time" ratchet and pawl lowering system that allows for precise load control. The buttress tooth with solid steel drive and holding dog, no laminated plates makes this product highly durable. The spring steel drum shield helps protect and spool the cable evenly on the drum.

This product meets several safety standards including ASME/ANSl B30.21, OSHA and NASA-STD-8719.9, and is also ATEX rated and certified as II 3 GD c IIB 54º C X for limited use in hazardous environments.



AMH Cable Puller 1700/3400 Lb, 20/10 Ft (C3400 model) Specification:

  • Falls & Lift
    • @ 1 fall & 20 ft lift:
      • Working Load Limit: 1700 lbs
      • A” Min. Between Hooks: 17"
    • @ 2 falls & 10 ft lift:
      • Working Load Limit: 3400 lbs
      • A” Min. Between Hooks: 23.8"
  • Ave. Pull @ Max Load: 80 lbs
  • Cable Size: 1/4″
  • Hook Opening w/Latch: 0.94″
  • Lever Length: 25
  • Weight (lbs): 16 lbs

AMH Cable Puller 1000/2000 Lb, 15/7.5 Ft (P2000 model) Specification:

  • Falls & Lift
    • @ 1 fall & 15 ft lift:
      • Working Load Limit: 1000 lbs
      • A” Min. Between Hooks: 21"
    • @ 2 falls & 7.5 ft lift:
      • Working Load Limit: 2000 lbs
      • A” Min. Between Hooks: 27.5"
  • Ave. Pull @ Max Load: 60 lbs
  • Cable Size: 3/16″
  • Hook Opening w/Latch: 0.91″
  • Lever Length: 18″
  • Weight (lbs): 10 lbs
