Adaptive Technologies Group Screw Pin Anchor Shackle

Adaptive Technologies Group Screw Pin Anchor Shackle

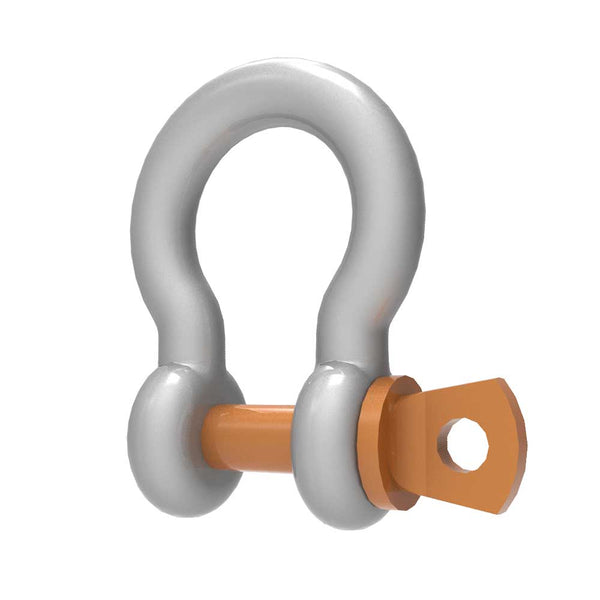

Adaptive Technologies Group screw pin anchor shackles join two closed-end items, such as wire rope assemblies, turnbuckles and eyebolts. A small hole in the pin lets you mouse the shackle with wire or a cable tie so vibration cannot loosen it.

That redundant locking feature is why shackles are rated for overhead suspension. Five sizes run from 1/4 in to 5/8 in, in black or silver (-S).

Key Features and Highlights

• Five sizes: 1/4, 5/16, 3/8, 1/2 and 5/8 in.
• Up to 6,500 lb (2,955 kg): WLL by size.
• Mousing hole in pin: Rated for overhead suspension.
• Design factor: 5:1 (1/4 in); 6:1 (5/16 to 5/8 in).
• Black or silver: Plain SKUs black, -S SKUs silver.

What's in the Box

• 1 shackle

Who Is This Product For?

Ideal for: Riggers making overhead connections to wire rope, chain, eyebolts and beam clamps.

Important: Mouse the pin for permanent overhead installations.

Specifications

• Part Numbers: SK-025, SK-315, SK-375, SK-500, SK-625, with -S silver versions
• Size: 1/4 in (6 mm), 5/16, 3/8, 1/2, 5/8 in
• Design Factor: 5:1 (1/4 in); 6:1 (5/16 to 5/8 in)
• Color: Black; silver (-S)
