Adaptive Technologies Group Quick Link

Adaptive Technologies Group Quick Link

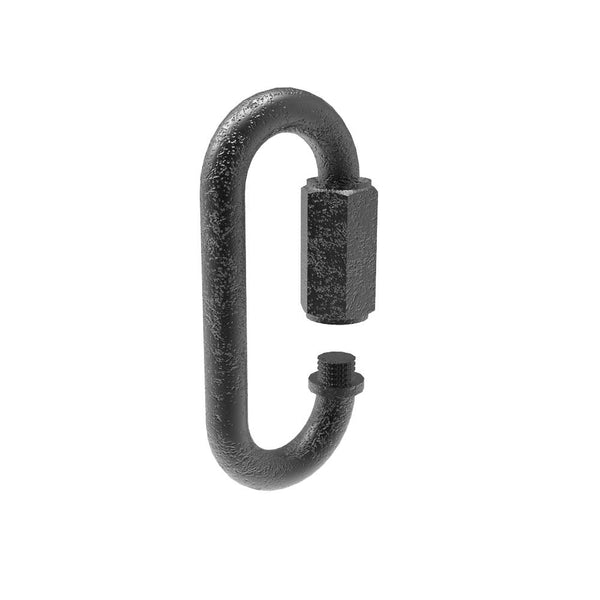

Adaptive Technologies Group Quick Links join two closed-end items, such as wire rope assemblies, turnbuckles and eyebolts, quickly and easily. They carry high working loads for their size.

Four sizes run from 1/4 in to 1/2 in, rated 880 to 3,300 lb vertical at a 5:1 design factor, in black or silver (-S).

Key Features and Highlights

• Four sizes: 1/4, 5/16, 3/8 and 1/2 in.
• Up to 3,300 lb (1,500 kg): Vertical WLL at 5:1.
• Fast coupling: Joins closed-end rigging hardware.
• Black or silver: Plain SKUs black, -S SKUs silver.

What's in the Box

• 1 quick link

Who Is This Product For?

Ideal for: Riggers coupling wire rope, turnbuckles and eyebolts in temporary installations.

Important: The side-locking sleeve can loosen over time, so quick links are not recommended for overhead use. Use shackles for overhead suspension.

Specifications

• Part Numbers: QL-025, QL-315, QL-375, QL-500, with -S silver versions
• Size: 1/4, 5/16, 3/8, 1/2 in
• Vertical WLL: 880 lb (400 kg) 1/4 in; 1,760 lb (800 kg) 5/16 in; 2,200 lb (1,000 kg) 3/8 in; 3,300 lb (1,500 kg) 1/2 in
• Design Factor: 5:1
• Color: Black; silver (-S)
