Adaptive Technologies Group Beam Clamp – Channel Style With One Suspension Point
Adaptive Technologies Group Beam Clamp – Channel Style With One Suspension Point $414.40

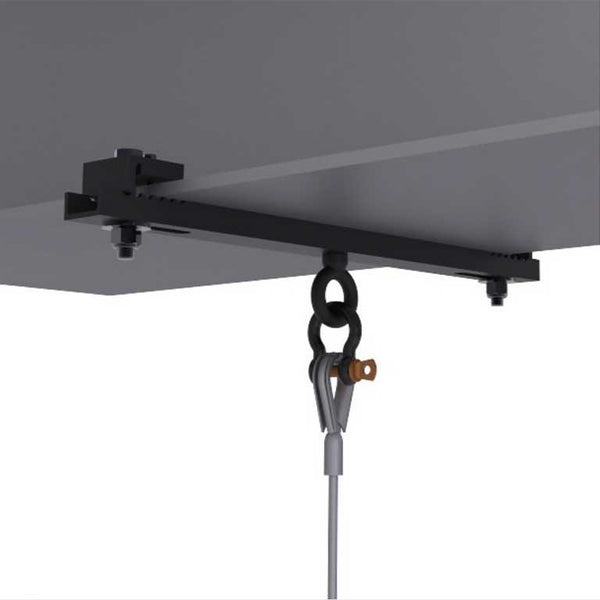

  • Adaptive Technologies Group BC16-21 low profile beam clamp under a steel beam with swivel eye and wire rope thimble

Adaptive Technologies Group Beam Clamp – Channel Style With One Suspension Point

Adaptive Technologies Group |
SKU: BC7-12
$414.40
Beam Width: 7 to 12 inch
Finish: Black
  • Up to 1,600 lb (726 kg) vertical: Carries heavy clusters and arrays from a single overhead point.
  • 7 to 26 in steel flanges: Four widths with spacers to fit most structural I-beams.
  • Central swivel eye: Hang wire rope, rigging chain or span sets and keep the load centered.
  • Galvanized BC7-12-G and BC16-21-G: Corrosion protection for outdoor non-marine installs.
View Full Description Technical Data
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa

Often Bought Together

Select items you want to add together

Included
Adaptive Technologies Group Beam Clamp – Channel Style With One Suspension Point
+
Adaptive Technologies Group Beam Clamp – BC-LAM-KIT Wood Beam Clamp Adapter
+
Adaptive Technologies Group SBC-CA Swivel Arm for Beam Clamps
+
Adaptive Technologies Group Screw Pin Anchor Shackle
Please select country
Please enter correct zip code
Test heading

Adaptive Technologies Group I-Beam Clamp, Channel Style with One Suspension Point

The Adaptive Technologies Group Channel Style Beam Clamp is a pre-engineered I-beam clamp that mounts flush under a steel beam flange and gives one centrally located swivel eye for hanging grids, clusters and arrays. This single hang point beam clamp suits permanent overhead rigging where no drilling into the structure is wanted.

Models cover 7 to 26 in flanges in black powder coat, with galvanized versions for outdoor non-marine use. Spacers let the clamp fit a range of flange thicknesses.

Key Features and Highlights

  • Central swivel eye: Suspend from wire rope, rigging chain, span sets and more.
  • Flange widths 7 to 26 in: 7 to 12, 12 to 17, 16 to 21 and 20 to 26 in models.
  • Vertical WLL up to 1,600 lb (726 kg): Rating depends on width; see the table.
  • Wood beams with BC-LAM-KIT: BC7-12 is rated 300 lb (136 kg) on wood beams with the adapter.
  • Galvanized option: BC7-12-G and BC16-21-G for outdoor non-marine applications.

What's in the Box

  • 1 beam clamp channel with swivel eye
  • 2 locking angle plates
  • 2 flat washers, 5/8 in
  • 2 nyloc nuts, 5/8-11
  • Spacers (BC12-17, BC16-21, BC7-12-G)

Who Is This Product For?

Ideal for: Installers who need I-beam clamps for hanging grids, loudspeaker clusters, line arrays and equipment from overhead steel beams in arenas, venues, warehouses and houses of worship.

Important: Do not exceed 45 degrees off the hang point. Beam flanges must be parallel to the floor. Always install safety cables.

Specifications

  • Part Numbers: BC7-12, BC12-17, BC16-21, BC20-26, BC7-12-G, BC16-21-G
  • Beam Flange Width: 7 to 12, 12 to 17, 16 to 21, 20 to 26 in
  • Wood Beams: 300 lb (136 kg) with BC-LAM-KIT
  • Design Factor: 5:1
  • Finish: Black powder coat; galvanized (BC7-12-G, BC16-21-G)

Explore Adaptive Technologies Group Equipment

Explore the complete Adaptive Technologies Group collection for professional rigging and loudspeaker mounting equipment.

Shop more I-beam mounting clamps in our Beam Clamps collection and the full Rigging Hardware for Live Events range.

For bulk orders, project requirements or pricing, Request a Quote. Have questions about compatibility or product selection? Contact Us.

Frequently Asked Questions

Which Channel Style Beam Clamp size do I need?
Measure the width of your steel beam flange and choose the Channel Style Beam Clamp that covers it: BC7-12 for 7 to 12 in, BC12-17 for 12 to 17 in, BC16-21 for 16 to 21 in, or BC20-26 for 20 to 26 in. Spacers adjust for flange thickness.
How much weight can the Channel Style Beam Clamp hold?
The Channel Style Beam Clamp rating depends on width. The BC7-12 is rated 1,600 lb (726 kg) vertical, the BC12-17 980 lb (445 kg), the BC20-26 600 lb (272 kg) and the BC16-21 315 lb (143 kg). Wider clamps carry less, so always check your model.
Can the Channel Style Beam Clamp be used outdoors?
Yes, with the galvanized versions. The BC7-12-G and BC16-21-G Channel Style Beam Clamps are galvanized for outdoor non-marine applications. The standard black powder coat models are intended for indoor use.
