Adaptive Technologies Group AJ Adjustable Width Wall & Ceiling Speaker Mount
Adaptive Technologies Group AJ Adjustable Width Wall & Ceiling Speaker Mount $212.80

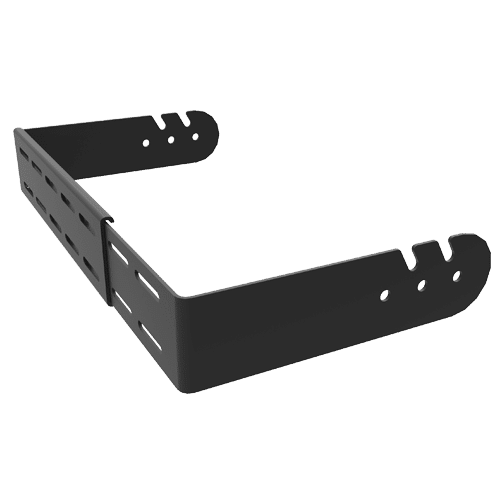

  • Adaptive Technologies Group AJ adjustable width speaker mount, black U-shaped bracket with slotted arms

Adaptive Technologies Group AJ Adjustable Width Wall & Ceiling Speaker Mount

Adaptive Technologies Group |
SKU: AJ-1524-BT
$212.80
Loudspeakers weighs: 60 lbs/27 kg or less
  • 60 lb or 85 lb at 7:1: Two sizes with a high safety margin for permanent speaker installs.
  • Down tilt up to 60°: Aim the speaker at the audience, then lock the angle with lag bolts.
  • Open arm slots: One installer can hang the speaker before tightening the hardware.
  • 16 and 24 in hole centers: Lines up with standard wall and ceiling studs; hardware and gaskets included.
View Full Description Technical Data
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa

Often Bought Together

Select items you want to add together

Included
Adaptive Technologies Group AJ Adjustable Width Wall & Ceiling Speaker Mount
+
Adaptive Technologies Group SBC-CA Swivel Arm for Beam Clamps
+
Adaptive Technologies Group U-Bracket Speaker Mount
Please select country
Please enter correct zip code
Test heading

Adaptive Technologies Group AJ Adjustable U-Bracket Wall and Ceiling Speaker Mount

The Adaptive Technologies Group AJ is an adjustable U-bracket and wall and ceiling speaker mount for loudspeakers on walls, ceilings, under balconies and overhangs. The AJ-1524-BT is rated 60 lb (27 kg) and the AJ-2336-BT 85 lb (38.6 kg), both at a 7:1 design factor.

Speakers rotate in the arms for down tilt up to 60 degrees, and the base has hole centers of 16 in and 24 in to match standard stud spacing.

Key Features and Highlights

  • Two sizes: AJ-1524-BT rated 60 lb (27 kg) and AJ-2336-BT rated 85 lb (38.6 kg).
  • Down tilt up to 60 degrees: Lock the angle permanently with lag bolts through separate side holes.
  • Single-installer friendly: Open side arm slots let one person hang the speaker.
  • Stud spacing: 16 in and 24 in hole centers match wall and ceiling studs.
  • Hardware included: Assorted 1/4 in, 5/16 in and 3/8 in bolts and two 1/4 in sound isolation gaskets.
  • Packed in pairs: Black powder-coated structural steel alloy.

Who Is This Product For?

Ideal for: Installers who need an adjustable speaker bracket for fixed loudspeakers on walls, ceilings, balconies and overhangs. The AJ-2336-BT fits the EAW MK2300i.

Important: Metric hardware kits (UB-M06-BK, UB-M08-BK, UB-M10-BK) are sold separately. Always install safety cables.

Specifications

  • Part Numbers: AJ-1524-BT, AJ-2336-BT
  • WLL (Working Load Limit): 60 lb (27 kg) AJ-1524-BT; 85 lb (38.6 kg) AJ-2336-BT
  • Design Factor: 7:1
  • Tilt: Down tilt up to 60 degrees
  • Hole Centers: 16 in and 24 in
  • Included: Assorted 1/4, 5/16 and 3/8 in bolts, two 1/4 in sound isolation gaskets
  • Material: Structural steel alloy

Explore Adaptive Technologies Group Equipment

Explore the complete Adaptive Technologies Group collection for professional rigging and loudspeaker mounting equipment.

Shop more adjustable and fixed U-brackets in our Brackets collection and the full Rigging Hardware for Live Events range.

For bulk orders, project requirements or pricing, Request a Quote. Have questions about compatibility or product selection? Contact Us.

Frequently Asked Questions

What is the difference between the AJ-1524-BT and AJ-2336-BT?
Both AJ adjustable U-brackets share the same 7:1 design factor, 60 degree down tilt and 16 in and 24 in hole centers. The AJ-1524-BT is rated 60 lb (27 kg), while the larger AJ-2336-BT is rated 85 lb (38.6 kg) and fits the EAW MK2300i.
Can one person install the AJ adjustable speaker bracket?
Yes. The AJ has open side arm slots, so one installer can hang the speaker in the bracket before tightening the hardware. Fully captive arm holes also make it suitable for ceilings, balconies and overhangs.
Can the AJ bracket be used with a swivel arm or beam clamp?
Yes. The AJ mounting pattern mates directly with the Adaptive SBC-CA swivel arm, which mounts under a beam clamp and adds 360 degrees of horizontal pan for aiming speakers from overhead steel or wood beams.
