6' ViewPack® Tie-back Energy Absorbing Lanyard, Single-leg with Aluminum Connectors
Product No. 825623A
Regular price
$104.12 USD
Shipping calculator
Please enter correct zip code
Payment methods
Product details

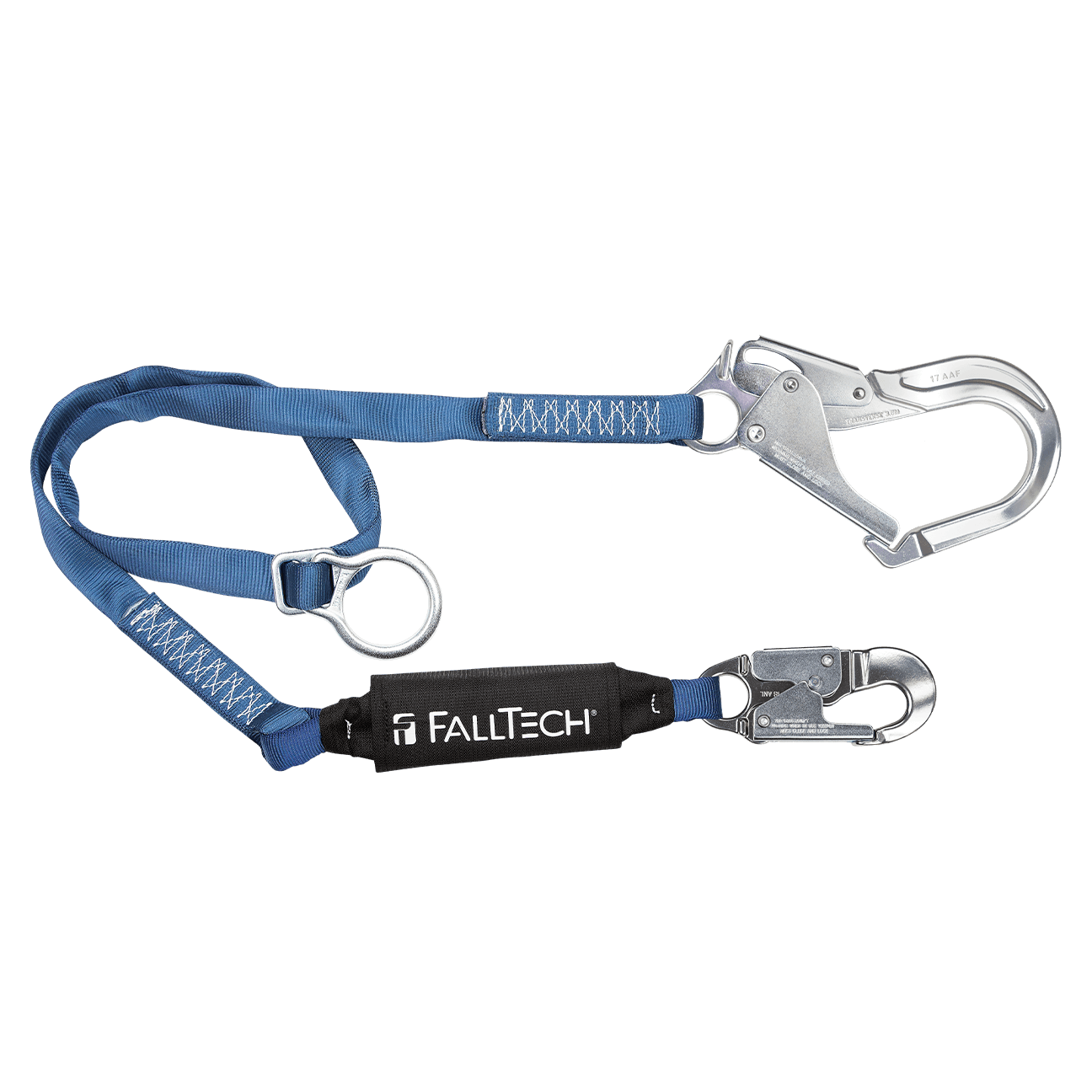

6' ViewPack® Tie-back Energy Absorbing Lanyard, Single-leg with Aluminum Connectors
FEATURES
- Constructed with jacketed double-layer polyester webbing for added strength and abrasion resistance
- Features Tie-back D-ring for wrap-around anchoring and eliminates the need for a separate tie-off anchor point.
- Energy absorber features patented ViewPack® cover with inspection window
- ViewPack® cover also features WrapPack label protection
- Includes aluminum alloy snap hooks for harness attachment and D-ring anchorage connection
- Complies with ANSI Z359.13-2013
MATERIAL SPECIFICATIONS
Webbing: Polyester; 5,000 lb min. static strength
Energy Absorber: Polyester tear-away
Connectors: Aluminum alloy; 5,000 lb min. static strength with 3,600 lb gate strength
D-ring: Plated alloy steel; 5,000 lb min. static strength
PERFORMANCE SPECIFICATIONS
Static Strength: 5,000 lb min.
ANSI Lanyard Class: 6' free fall
Max. Arrest Distance: 48"
Avg. Arrest Force: 900 lb
Max. Arrest Force: 1,800 lb
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 310 lb max.
DOWNLOADS
COMPLIANT WITH:
OSHA 1926.502 and 1910.66
ANSI Z359.13-2013
