Tomcat Truss - Medium Duty

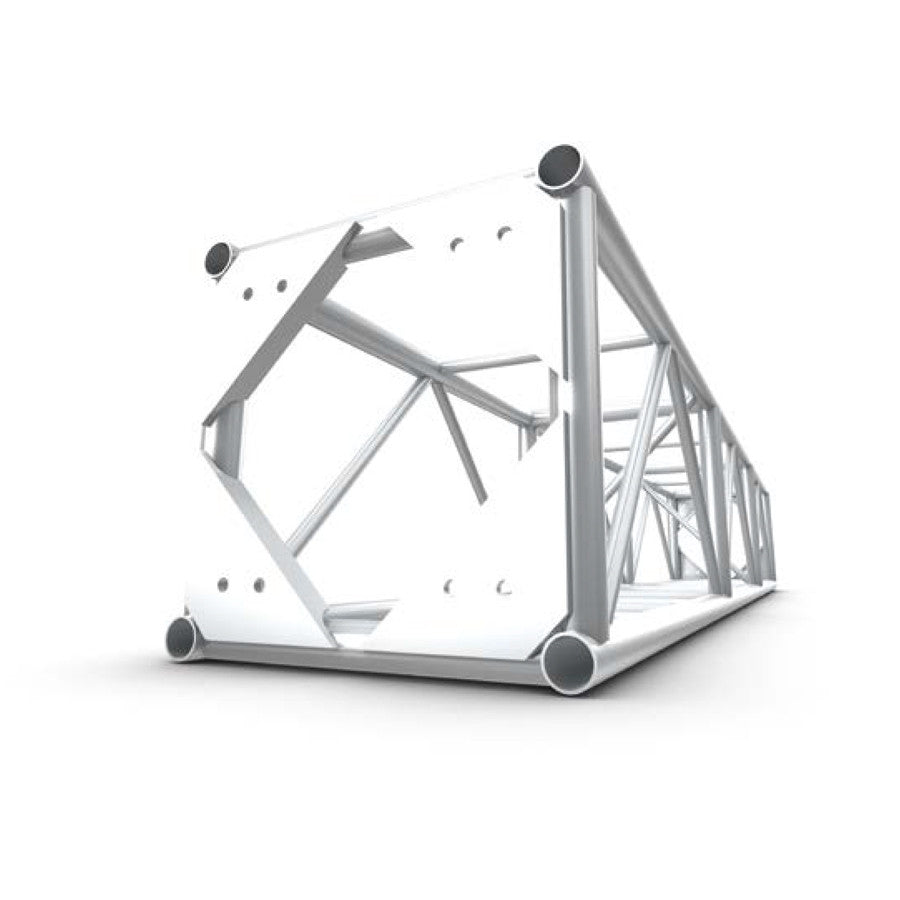

Tomcat truss is renowned for top performance and quality and is compliant with ANSI E1.2-2013 for the best safety assurance. Tomcat manufactures their 20.5 x 20.5 truss using only mill-certified materials that are fabricated by AWS certified welders. Their Medium Duty 20.5 x 20.5 Plated Truss is available in three standard lengths and a 5-Way Corner Block. This truss is equipped with bolts for assembly.

Medium Duty 20.5 x 20.5 Plated Truss’s main chords are 2” OD x 1/8” aluminum and diagonals are 1” OD x 1/8” aluminum. For large orders, call (570)826-5566 for special bulk pricing, or submit a Request For Quote and one of our sales team members will get back to you with our best price.



  • Standard lengths: 10’, 8’ and 5’
  • Weights:
    10’ – 85 lbs
    8’ – 77 lbs
    5’ – 56 lbs
    5-Way Corner Block – 52 lbs
  • Main chords: 2” OD x 1/8” aluminum
  • Diagonals: 1” OD x 1/8” aluminum
  • Studio version: 2” OD x 3/16” main chords
  • Available with casters
  • Custom lengths available upon request
  • Equipped with bolts
  • Fabricated by AWS / SFL certified welders
    Please refer to Tomcat Truss Datasheet for more information
      MAXIMUM ALLOWABLE UNIFORM LOADS
      SPAN (FT) LOAD (LBS/FT) LOAD (LBS) MAX DEFLECTION (IN)
      10 839 8390 0.08
      20 230 4600 0.34
      30 97 2910 0.76
      40 51 2040 1.36
      50 29 1450 2.10



      MAXIMUM ALLOWABLE POINT LOADS
      CENTER POINT THIRD POINT QUARTER POINT
      SPAN (FT) LOAD (LBS) MAX DEFLECTION (IN) LOAD (LBS) MAX DEFLECTION (IN) LOAD (LBS) MAX DEFLECTION (IN)
      10 4744 0.07 3558 0.09 2372 0.08
      20 2306 0.27 1729 0.35 1153 0.32
      30 1464 0.62 1098 0.78 732 0.73
      40 1021 1.13 765 1.39 510 1.30
      50 737 1.80 553 2.16 369 2.05
