• Tomcat Truss - Light Duty 12'' x 12'' Plated

Tomcat Truss - Light Duty 12'' x 12'' Plated

Product No. TC 1212-120B

LENGTH
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_express apple_pay diners_club discover facebook_pay google_pay master shopify_pay visa
Product details

Tomcat Truss - Light Duty

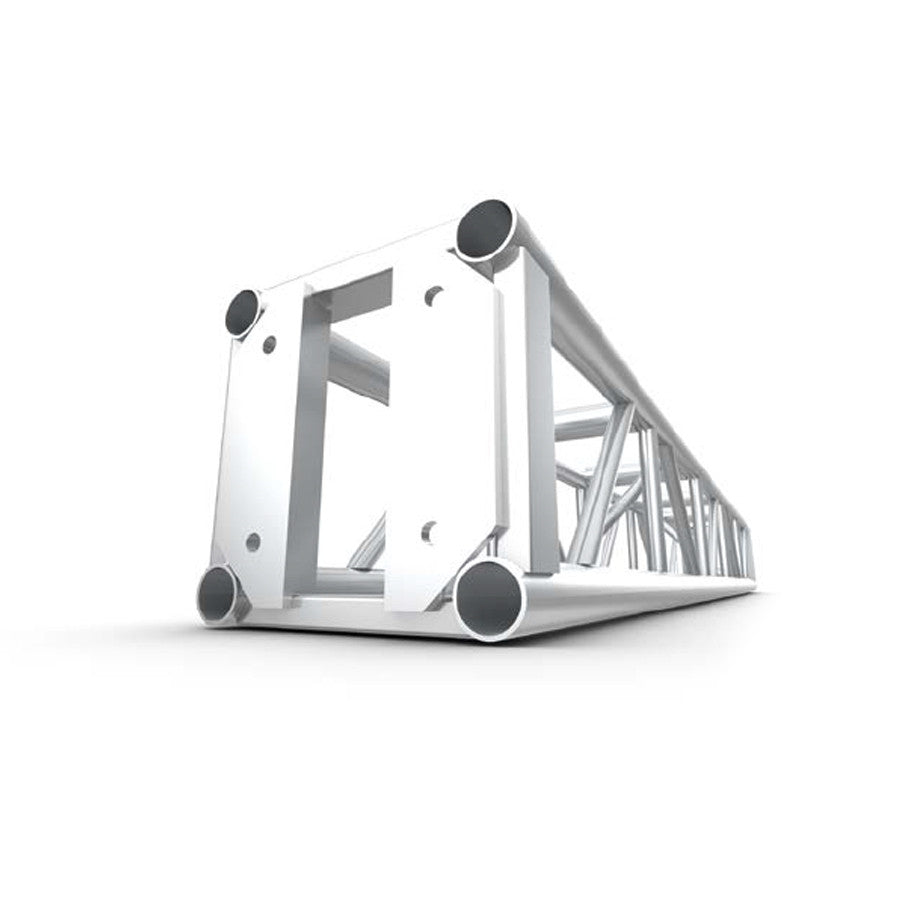

Tomcat truss is renowned for top performance and quality and is compliant with ANSI E1.2-2013 for the best safety assurance. Tomcat manufactures their 12''x12'' truss using only mill-certified materials that are fabricated by AWS certified welders. Their Light Duty 12'' x 12'' Plated Truss is available in three standard lengths and a 5-Way Corner Block. This truss is equipped with bolts for assembly.

Tomcat Truss Light Duty 12'' x 12'' Plated Truss’s main chords are 2” OD x 1/8” aluminum and diagonals are 1” OD x 1/8” aluminum.

For large orders, call (570)826-5566 for special bulk pricing, or submit a Request For Quote and one of our sales team members will get back to you with our best price.

  • Standard lengths: 10’, 8’ and 5’
  • Weights:
    - 10’: 61 lbs
    - 8’: 51 lbs
    - 5’: 36 lbs
    - 5-Way Corner Block: 26 lbs
  • Main chords: 2” Outer Diameter x 1/8” aluminum
  • Diagonals: 1” Outer Diameter x 1/8” aluminum
  • Equipped with bolts
  • Fabricated by AWS / SFL certified welders
  • Custom lengths available upon request
For more details, please refer to Tomcat Truss Datasheet.
    MAXIMUM ALLOWABLE UNIFORM LOADS
    # OF SECTIONS SPAN (FT) LOAD (LBS/FT) LOAD (LBS) MAX DEFLECTION (IN)
    1 10 446 4460 0.14
    2 20 106 2120 0.54
    3 30 43 1290 1.22
    4 40 21 840 2.16



    MAXIMUM ALLOWABLE POINT LOADS
    CENTER POINT THIRD POINT QUARTER POINT
    # OF SECTIONS SPAN (FT) LOAD (LBS) MAX DEFLECTION (IN) LOAD (LBS) MAX DEFLECTION (IN) LOAD (LBS) MAX DEFLECTION (IN)
    1 10 2231 0.11 1673 0.14 1116 0.13
    2 20 1063 0.44 797 0.56 531 0.52
    3 30 650 1.01 487 1.25 325 1.17
    4 40 426 1.85 319 2.21 213 2.10
