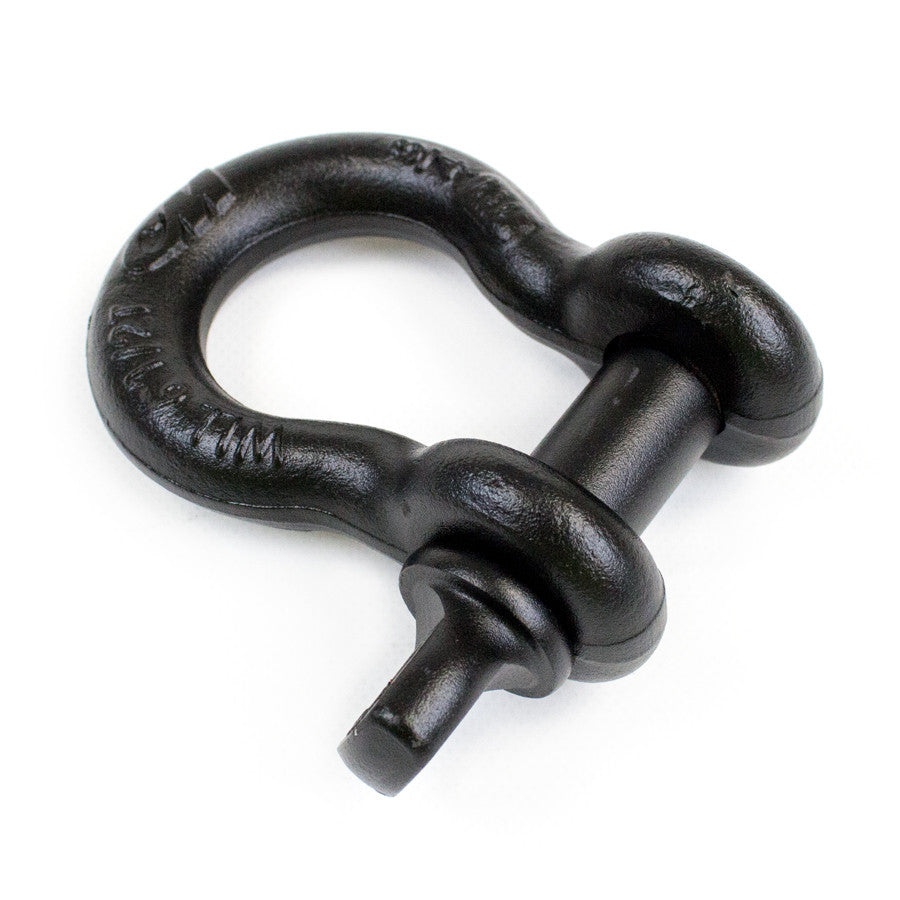

CM Shackle – Screw Pin (Carbon Steel)
- Industry-leading working load limits for carbon steel shackles
- Forged, heat-treated and tempered for high strength and abrasion resistance
- Ultimate strength rated at 5× the working load limit
- Quick-release screw pin design makes frequent rigging changes fast and easy
- CE marked and clearly identified with size and working load limit
Often Bought Together
Select items you want to add together
CM Shackle – Screw Pin
CM Shackle - Screw pin, simply put, has the highest working load limit of any carbon steel shackle in the industry. These shackles consistently perform with superior strength and exhibit more ductility than other carbon steel shackles of the same nominal section size. Our own crew and supervisors use CM shackles every day and on every job site. We rely on these products to perform time and time again, and we stand behind CM’s product line and history of quality.
The CM Carbon Steel Shackles we distribute are batch tested and painted black for low visibility. All shackle bodies and pins are forged from special steel, heat-treated, and tempered to give greater strength and abrasion resistance. CM’s 130+ years of experience shines through in the design and strength of their Carbon Steel Shackles, along with their entire line of rigging items.
Their screw pins are quickly and easily removed from the shackle body, and just as easily secured by torque. This type of shackle is perfect in the entertainment industry, where shackles are frequently moved.
If you are interested in bulk ordering, please contact us via our RFQ form.
- Positive and Easy Identification - All shackles are marked with size (mm and in) and working load limits in tons
- Strength Plus - Ultimate strength equals 5 times working load limit. Proof load equals 2.2 times working load limit
- CE Marked
| Product Code | Size (in) | Working Load Limit (Ton) |
Weight (lbs) |
|---|---|---|---|
| M646B | 1/4" | 3/4 | 0.12 |
| M647B | 5/16" | 1 | 0.2 |
| M648B | 3/8" | 1 1/2 | 0.3 |
| M650B | 1/2" | 3 | 0.75 |
| M651B | 5/8" | 4 1/2 | 1.6 |
| M652B | 3/4" | 6 1/2 | 2.6 |
| Dimensions (in) | ||||||
|---|---|---|---|---|---|---|
| Product Code | D | P | W | L | B | R |
| M646B | 0.31 | 0.36 | 0.47 | 0.75 | 1.13 | 0.75 |
| M647B | 0.38 | 0.45 | 0.53 | 0.84 | 1.25 | 0.81 |
| M648B | 0.44 | 0.52 | 0.66 | 1 | 1.4 | 1 |
| M650B | 0.63 | 0.7 | 0.84 | 1.34 | 1.94 | 1.38 |
| M651B | 0.75 | 0.83 | 1.06 | 1.66 | 2.41 | 1.63 |
| M652B | 0.88 | 0.95 | 1.28 | 1.94 | 2.84 | 1.89 |
RELATED CONTENT
Note: Size 5/8" is currently out of stock. Next restock in 3 weeks.
