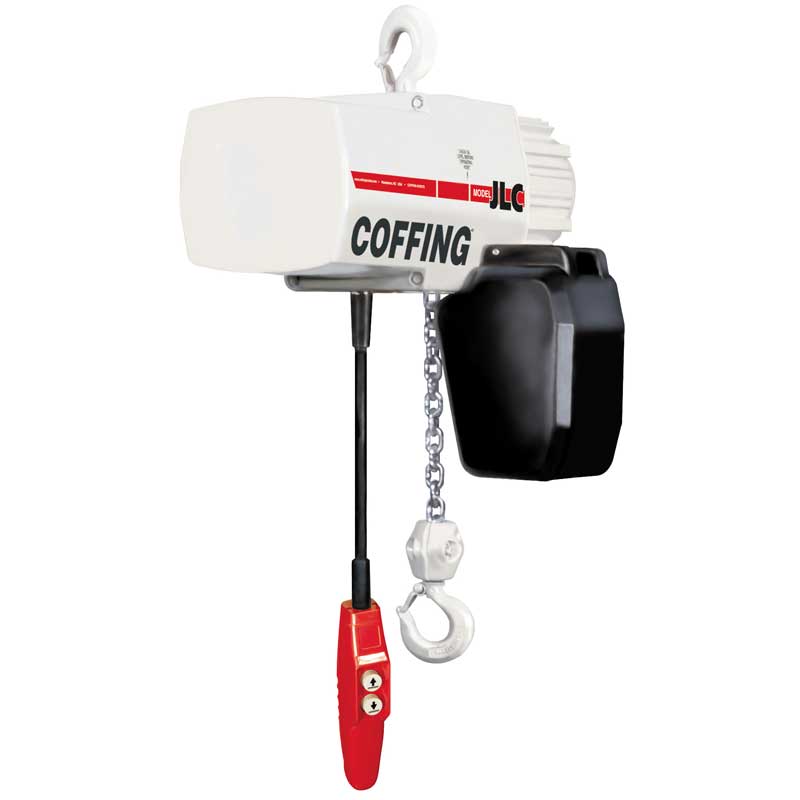

Coffing JLC Electric Chain Hoist - 1/2 Ton

Product No. JLC1016-1-10

VOLTAGE
LIFT
SPEED
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_express apple_pay diners_club discover facebook_pay google_pay master shopify_pay visa
Product details

Coffing JLC Hook & Lug Suspension Models are designed for industrial duty performance. Compact in size, the JLC features a multiple disc motor brake, overload clutch, and chain end stop for safety.

FEATURES:

  • Speed: Available in 16 or 32 ft/min
  • Lifts Available: 10, 15, 20ft. Standard push button drop is 4-feet less than lift. CSA approved.
  • Voltages - 115/230 - single phase; 230/460 - three phase, 60 hertz
  • Limit switches adjustable to regulate upper and lower load travel. Brass nuts standard for improved repeatability and chain positioning.
  • Precision machined alloy steel gears run in oil bath for longer, quieter operation.
  • NEMA 3R Push button station ergonomic design fits operator's hand for thumb or two-handed operation. 24 Volt Control for operator safety.
  • Compact aluminum housing for portability and ease of installation.
  • Chain containers standard on lifts up to 20 ft. single chain / 10 ft. double chain.
  • Lifetime warranty

SPECIFICATIONS:

Model # CM Part # Voltage Lift (ft) Weight (lb) Speed (ft/min)
JLC1016-1-10 08221W 115V Single Phase 10 79 16
JLC1016-1-15 08222W 115V Single Phase 15 83 16
JLC1016-1-20 08223W 115V Single Phase 20 87 16
JLC1032-1-10 08230W 115V Single Phase 10 92 32
JLC1032-1-15 08231W 115V Single Phase 15 96 32
JLC1032-1-20 08232W 115V Single Phase 20 100 32
JLC1016-3-10 08225W 230/460V 3 Phase 10 79 16
JLC1016-3-15 08227W 230/460V 3 Phase 15 83 16
JLC1016-3-20 08228W 230/460V 3 Phase 20 87 16
JLC1032-3-10 08235W 230/460V 3 Phase 10 92 32
JLC1032-3-15 08236W 230/460V 3 Phase 15 96 32
JLC1032-3-20 08237W 230/460V 3 Phase 20 100 32
