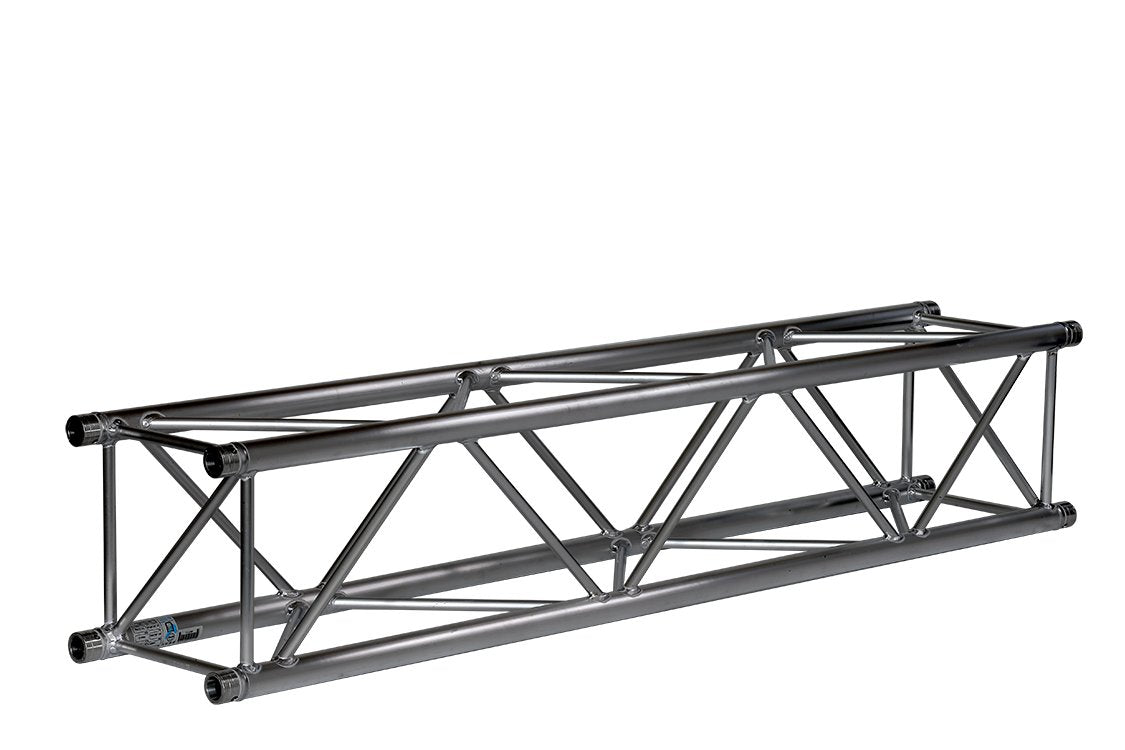

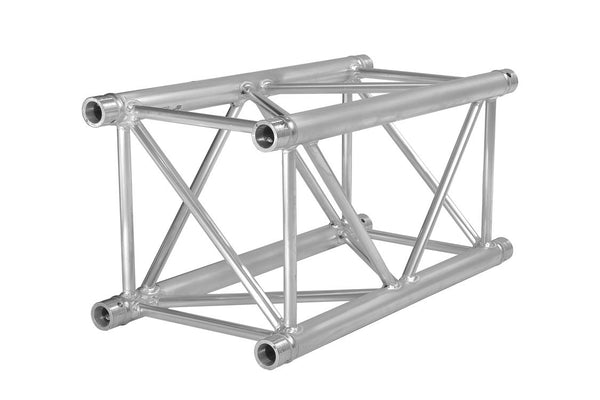

Prolyte H40V Square Truss

Product No. H40V-L050

No reviews
LENGTH
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_express apple_pay diners_club discover facebook_pay google_pay master shopify_pay visa
Product details
H40 Series truss is constructed of main tubes (48,3 x 3 mm) and diago­nals (20 x 2 mm). Equipped with the CCS6 conical coupling system, the H40 truss is fast and easy to assemble. The H40 offers extra strength, next to its flexible application possibilities and is the ideal solution for the event or exhibition market. H40 truss is available in ladder, triangular and square profiles and a range of corners and accessories.

IN-STOCK PRODUCTS WILL SHIP WITHIN 3 BUSINESS DAYS; SOME PRODUCTS MAY TAKE LONGER

LOADING TABLE
Span
Maximum Uniformly Distributed Load Maximum Centre Point Load
Length (m) Total Weight (kg) Load (kg/m) Deflection (mm) Load (kg/m) Deflection (mm)
3 20.7 835.4 7 2198.9 6
6 41.4 414.6 29 1234.4 23
9 62.1 218 65 861.7 52
12 82.8 119.9 116 653.1 93
15 103.5 74.5 182 517.9 146
Download full loading table
