3M™ DBI-SALA® ExoFit NEX™ Rope Access/Rescue Harness - Blackout

The 3M™ DBI-SALA® ExoFit NEX™ Rope Access/Rescue Harness - Blackout is the most comfortable and reliable fall protection harness out there for stage and event rigging. This comfortable and light wearing safety harness is easy to don, thanks to its vest-style design. It features hybrid shoulder, back and leg comfort padding, a stand-up lightweight aluminum back D-ring, lightweight aluminum front and suspension D-rings, body belt/hip pad with lightweight aluminum side D-rings, Duo-Lok™ quick connect chest and leg straps, as well as equipment loops. The ExoFit Nex™ Rope Access/Rescue Harness -Blackout, with 4 D-ring locations, is extremely versatile allowing users to perform a variety of climbing, positioning, descent and rescue applications.

For a full list of ExoFit NEX™ features, click here.

For any inquiries please contact us via Chat.

About ExoFit NEX™

ExoFit NEX™ harnesses are the most advanced safety harnesses in the industry. These fall protection products are the result of years of experience and ongoing research to identify the best materials and features for the worker’s benefit. These harnesses are manufactured to be lightweight with speed and efficiency as product requirements. ExoFit NEX™ full-body harnesses provide the freedom and confidence for workers to perform at their maximum potential.

SPECIFICATIONS

• Capacity: 420 lbs
• Weight:
  1113370 - 5.4 lbs
  1113371 - 5.5 lbs
  1113372 - 5.7 lbs
  1113373 - 5.9 lbs

• Tensile Strength: 6000 lbs
• Body Belt: Yes
• Subpelvic Strap: Yes
• Buckle Type: Duo-Lok™ Quick Connect
• Torso Buckle Material: Zinc Plated Steel
• Leg Buckle Material: Zinc Plated Steel
• Padding Location: Back/Hip, Shoulder/Back and Leg
• iSafe Equipped: Yes
• Recommended Industry: Construction, General Industrial, Oil & Gas, Utilities, Wind Energy
• Standards: ANSI A10.32, ANSI Z359.1, ANSI Z359.3, ANSI Z359.4, NFPA 1983, NFPA 1983-06, OSHA 1910.66, OSHA 1926.502

FEATURES

• Black-out Color Design:
  - Blending into its surroundings when you do not want to be noticed

• Hybrid Shoulder, Back and Leg Comfort Padding:
   - Lightweight, moisture-wicking and breathable padding with soft edging wrap around the wearer for the ultimate in comfort, security, and no-tangle donning

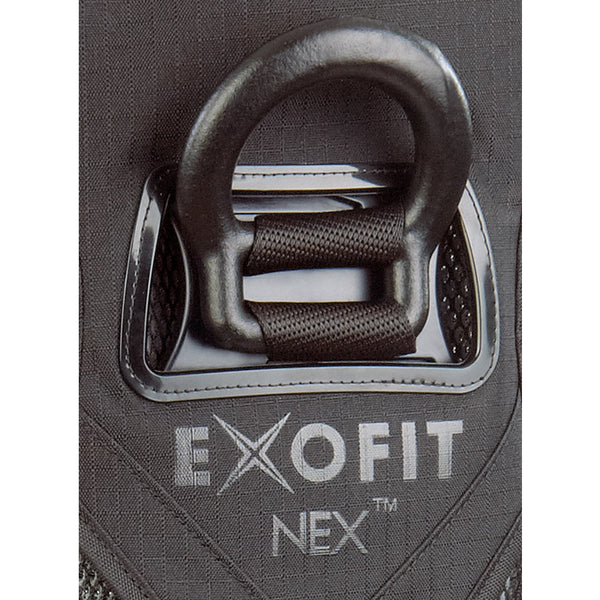

• Stand-up Tech-Lite™ Aluminum Back D-Ring:
  - Patented spring-loaded design automatically stands-up ensuring fast, easy and safe connections to your fall arrest system
  - Tech-Lite™ D-Ring features material 7075 Aluminum Alloy with T-Strength 5,000 lbs. (Apply to all Tech-Lite™ D-Rings)

• Tech-Lite™ Aluminum Front and Suspension D-Rings:
  - Versatile frontal D-ring locations are ideal for ladder climbing, descent, rescue or work positioning tasks

• Body Belt/Hip Pad with Tech-Lite™ Aluminum Side D-Rings:
  - Provides hip D-rings ideal for positioning, additional back lumbar support and tool carrying options

• Equipment Loops:
  - Three equipment loops with protective sheathing provide easy access to extra tools and gear

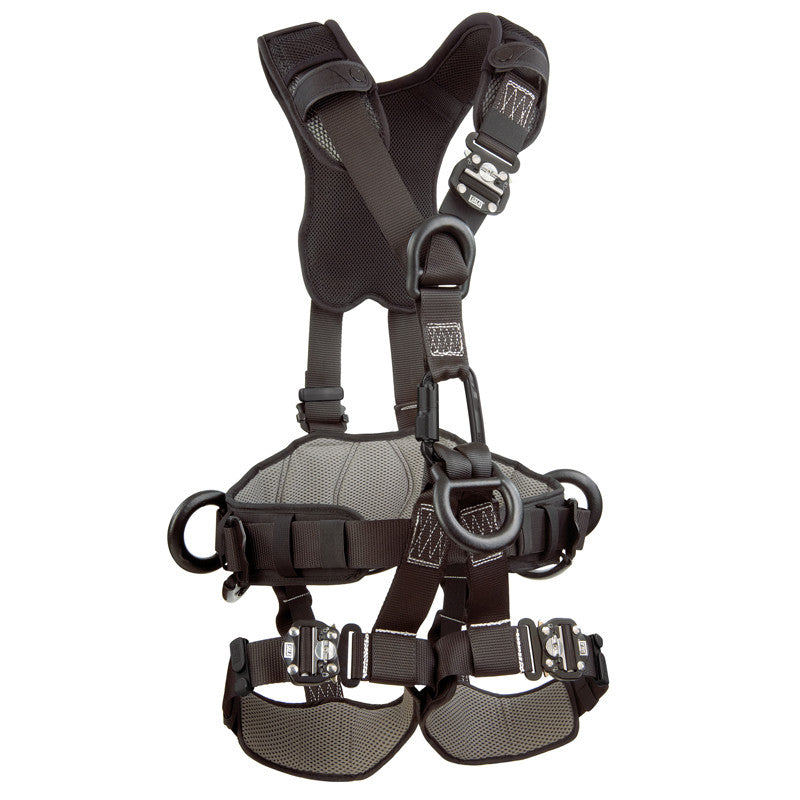

• Duo-Lok™ Quick Connect Chest and Leg Straps:
  - Lightweight one-handed use with memory fit web-lock ensures fast, non-slipping connections
  - Duo-Lok™ Quick Connect Buckle features materials 7075 & 6061 Aluminum Alloy, Stainless Steel per ASTM A240 and Alloy Steel SAE AMS 6350 (zinc plated finish), with the Strength of 4,000lbs (1,815kg)

• Repel™ Polyester Webbing:
  - Water repellent to reduce the attraction of mold and dirt – also has more abrasion resistance
  - The technology features Nanosphere treament

• Built-in lanyard keeper:
  - Molded lanyard keepers hold your unused snap hooks and break away to avoid trip hazards

• Impact indicator:
  - Rip-stitch indicators allow you to inspect the harness at a glance, for prior damaging impact loads

• Protected labels, equipped with i-Safe™:
  - A hip pad snap closure protects harness labels and holds an i-Safe™ identification tag for recording and storing information on inspections
