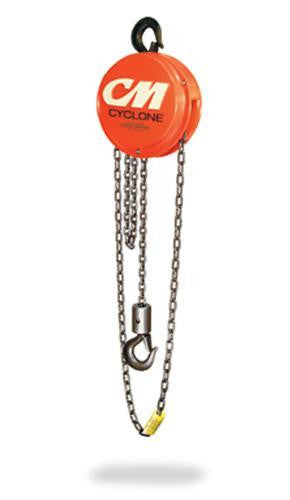

CM Cyclone Hand Chain Hoist
Product No. 4621
Regular price
$1,551.00 USD
Shipping calculator
Please enter correct zip code
Payment methods
Product details
As the most interchangeable in the industry, its no surprise that the CM Cyclone remains one of the most popular and reliable hand chain come along hoists ever designed. The Cyclone combines superior engineering, efficiency and durability to deliver a safe and smooth lift.
The CM Cyclone is made in the U.S.A. and is inspected over 75 times to meet or exceed HMI, ASME and ANSI performance and safety standards. It is equipped with a standard load limiter and an enclosed Weston-type automatic brake for positive load control.
Product Literature
RELATED CONTENT
• Capacity: 1/4 Ton; 1/2 Ton; 1 Ton; 1.5 Ton; 2 Ton; 3 Ton; 4 Ton; 5 Ton; 6 Ton; 8 Ton; or 10 Ton
• Lift: 15', 20' or 30'
| PRODUCT CODE | RATED CAPACITY (TONS) | STANDARD LIFT (FT) | HAND CHAIN PULL TO LIFT RATED LOAD (LBS) | HAND CHAIN OVERHAULED TO LIFT LOAD 1' (FT) | APPROX. SHIPPING WEIGHT (LBS) |
| 4621 | 1/4 | 10 | 23 | 22.5 | 40 |
| 4722 | 1/4 | 15 | 23 | 22.5 | 48 |
| 4732 | 1/4 | 20 | 23 | 22.5 | 55 |
| 4622 | 1/2 | 10 | 46 | 22.5 | 40 |
| 4723 | 1/2 | 15 | 46 | 22.5 | 48 |
| 4733 | 1/2 | 20 | 46 | 22.5 | 55 |
| 4624 | 1 | 10 | 69 | 30 | 43 |
| 4724 | 1 | 15 | 69 | 30 | 52 |
| 4734 | 1 | 20 | 69 | 30 | 60 |
| 4625 | 1.5 | 10 | 80 | 40.5 | 69 |
| 4725 | 1.5 | 15 | 80 | 40.5 | 81 |
| 4735 | 1.5 | 20 | 80 | 40.5 | 93 |
| 4626 | 2 | 10 | 83 | 52 | 68 |
| 4893 | 2 | 15 | 83 | 52 | 80 |
| 4894 | 2 | 20 | 83 | 52 | 92 |
| 4627 | 3 | 10 | 85 | 81 | 103 |
| 4726 | 3 | 15 | 85 | 81 | 122 |
| 4736 | 3 | 20 | 85 | 81 | 140 |
| 4628 | 4 | 10 | 88 | 104 | 103 |
| 4727 | 4 | 15 | 88 | 104 | 122 |
| 4737 | 4 | 20 | 88 | 104 | 140 |
| 4629 | 5 | 10 | 75 | 156 | 138 |
| 4728 | 5 | 15 | 75 | 156 | 164 |
| 4738 | 5 | 20 | 75 | 156 | 189 |
| 4630 | 6 | 10 | 90 | 156 | 142 |
| 4729 | 6 | 15 | 90 | 156 | 168 |
| 4739 | 6 | 20 | 90 | 156 | 193 |
| 4631 | 8 | 10 | 89 | 208 | 247 |
| 4730 | 8 | 15 | 89 | 208 | 280 |
| 4740 | 8 | 20 | 89 | 208 | 312 |
| 4632 | 10 | 10 | 95 | 260 | 250 |
| 4731 | 10 | 15 | 95 | 260 | 290 |
| 4741 | 10 | 20 | 95 | 260 | 329 |
- Most interchangeability of parts in the industry
- Standard Load Limiter™ for simple, automatic overload protection
- Enclosed contoured Weston-type automatic brake for positive load control
- High-efficiency spur gearing for greater lift with minimum effort
- Rugged Hoistaloy chain for added strength and durability
- Fully machined, forged liftwheel pockets for easier lifting and smooth free chaining
- High-strength aluminum alloy castings in frame and covers
- Inspected over 75 times to meet or exceed HMI and ASME/ANSI performance and safety standards
- Standard hand chain drop is 2 feet less than lift, (example: 8 foot lift hoist has 6 foot hand chain drop)
- Lifetime warranty
- Metric rated
- Made in U.S.A.
