MTN Double Hook Chain Hoist Bag
Product No. MPDH13S
Shipping calculator
Payment methods
Product details

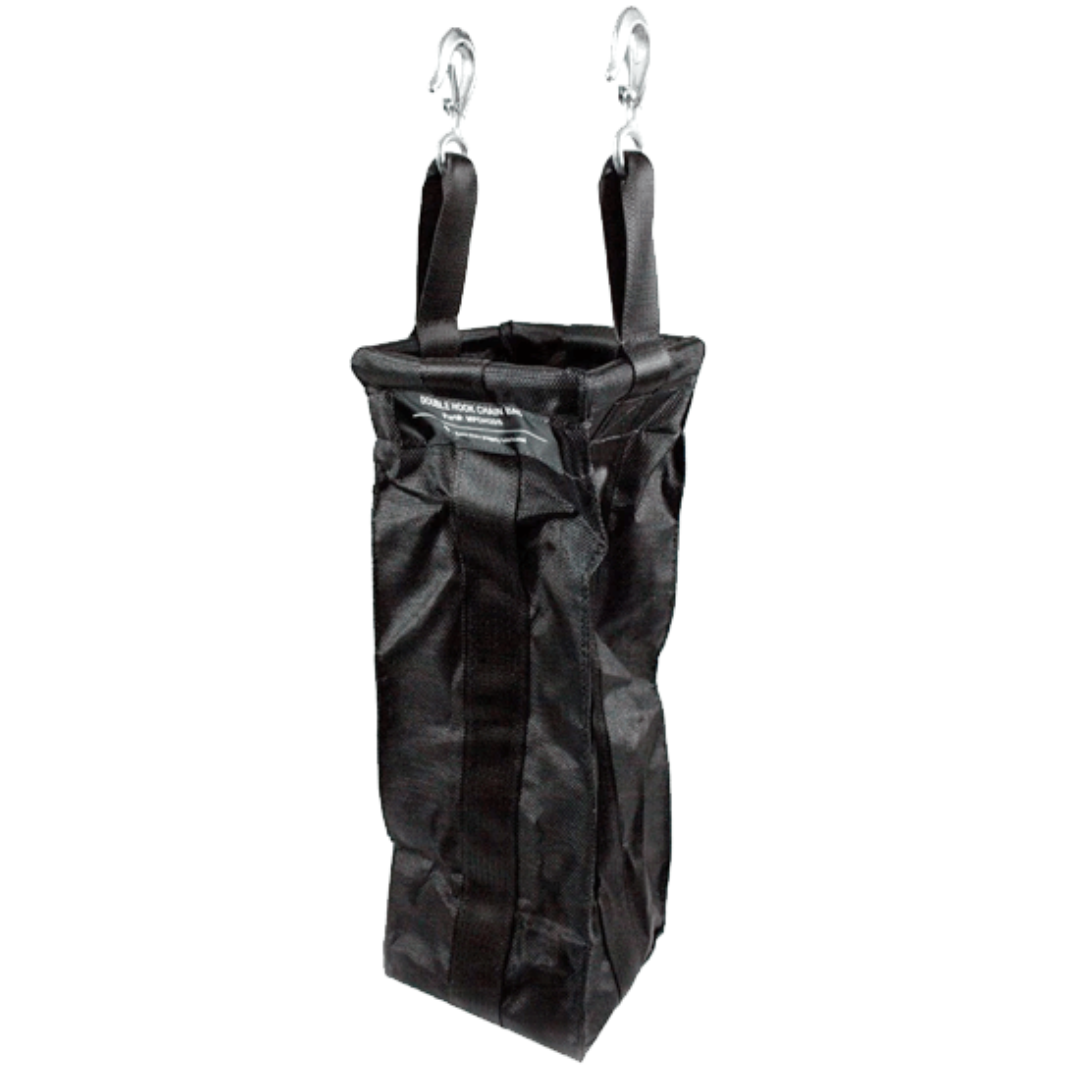

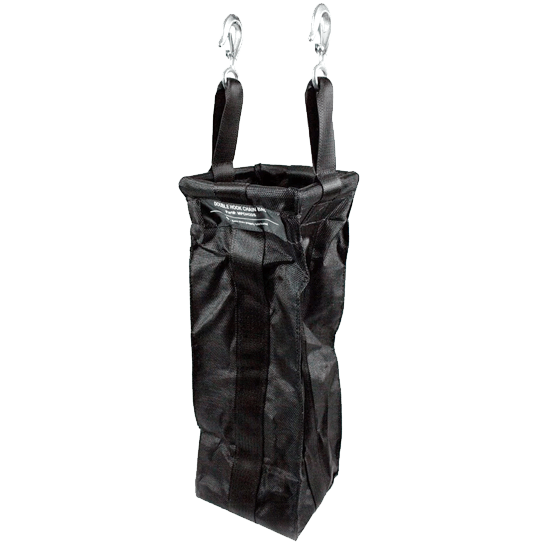

In house, we’ve been manufacturing chain bags for years, and the Double Hook Chain Bag has been one of our most popular chain container options. Our chain bags are manufactured using a heavy vinyl mesh for increased durability and have a reinforced steel frame opening to ensure easy filtering of chain in and out of the bag.

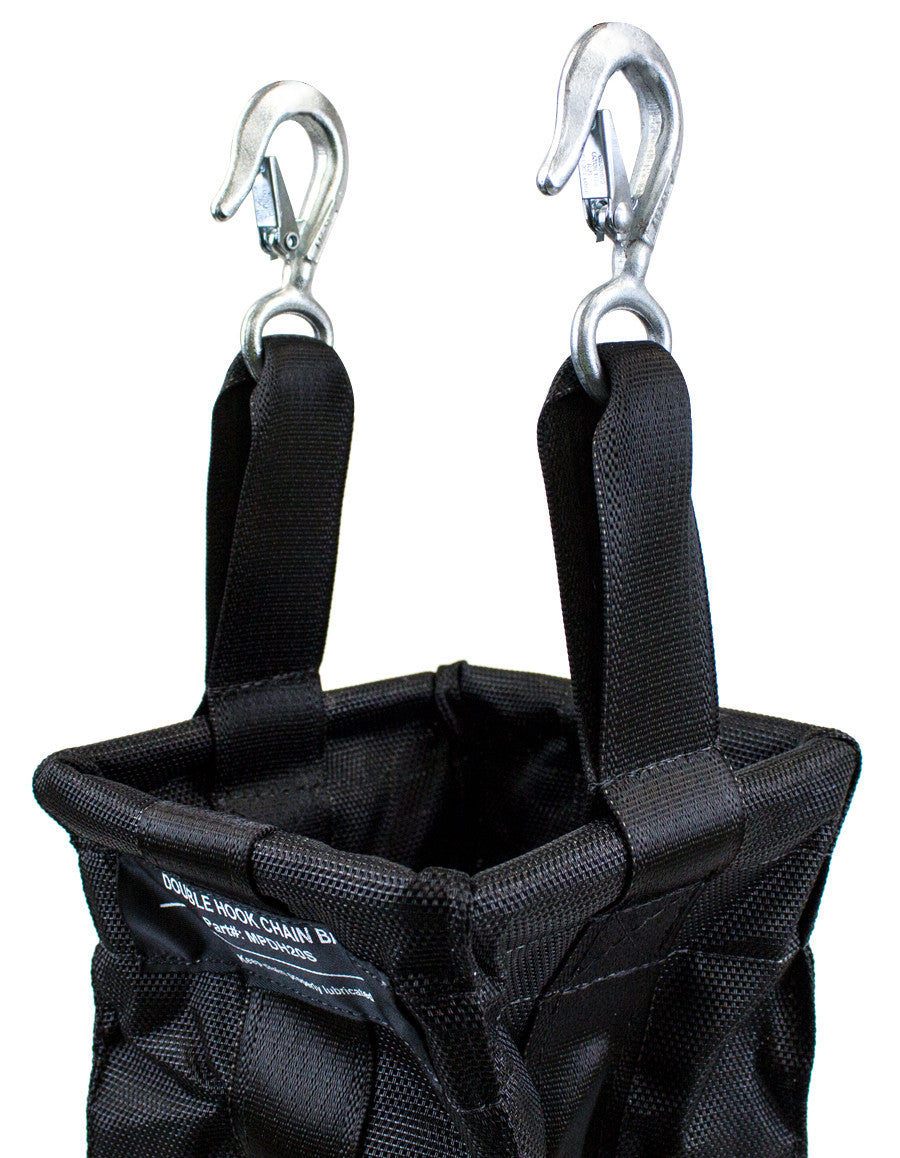

The Double Hook Chain Bag is to be used with the MPDH (Mountain Productions’ Double Hook) Bracket, which is sold separately (view the MPDH bracket here). This chain bag has two 7/16” genuine CM steel snap hooks that attach to the MPDH bracket installed to the hoist body. The Double Hook Chain Bag can be used both indoors and outdoors and in either the motor up or down positions.
The chart below will help you determine which size bag is right for your application, based on the type of hoist (V1/Small Frame hoists use 1/4" chain, V2/Large Frames use 5/16", and the model RRS uses 10mm) and the maximum lift you require:
| Max Chain Capacity | ||||
| Size | Item # | 1/4" Chain | 5/16" Chain | 10mm Chain |
| 13" | MPDH13S | 40' | 20' | 10' |
| 16" | MPDH16S | 60' | 30' | 20' |
| 20" | MPDH20S | 100' | 70' | 55' |
| 25" | MPDH25S | 130' | 100' | 70' |
| 32" | MPDH32S | N/A | 120' | 90' |
| 36" | MPDH36S | N/A | 160' | 130' |
| 40" | MPDH40S | N/A | 200' | 150' |
FEATURES
• Steel frame opening allows chain to easily enter and exit bag during usage
• Dual sewn edging helps extend the life span of chain bag
• Reinforced nylon strapping strengthens bag to prevent chain blow-outs
• Designed for any application
