Lift All Steelflex Round Sling- Stage Rigging

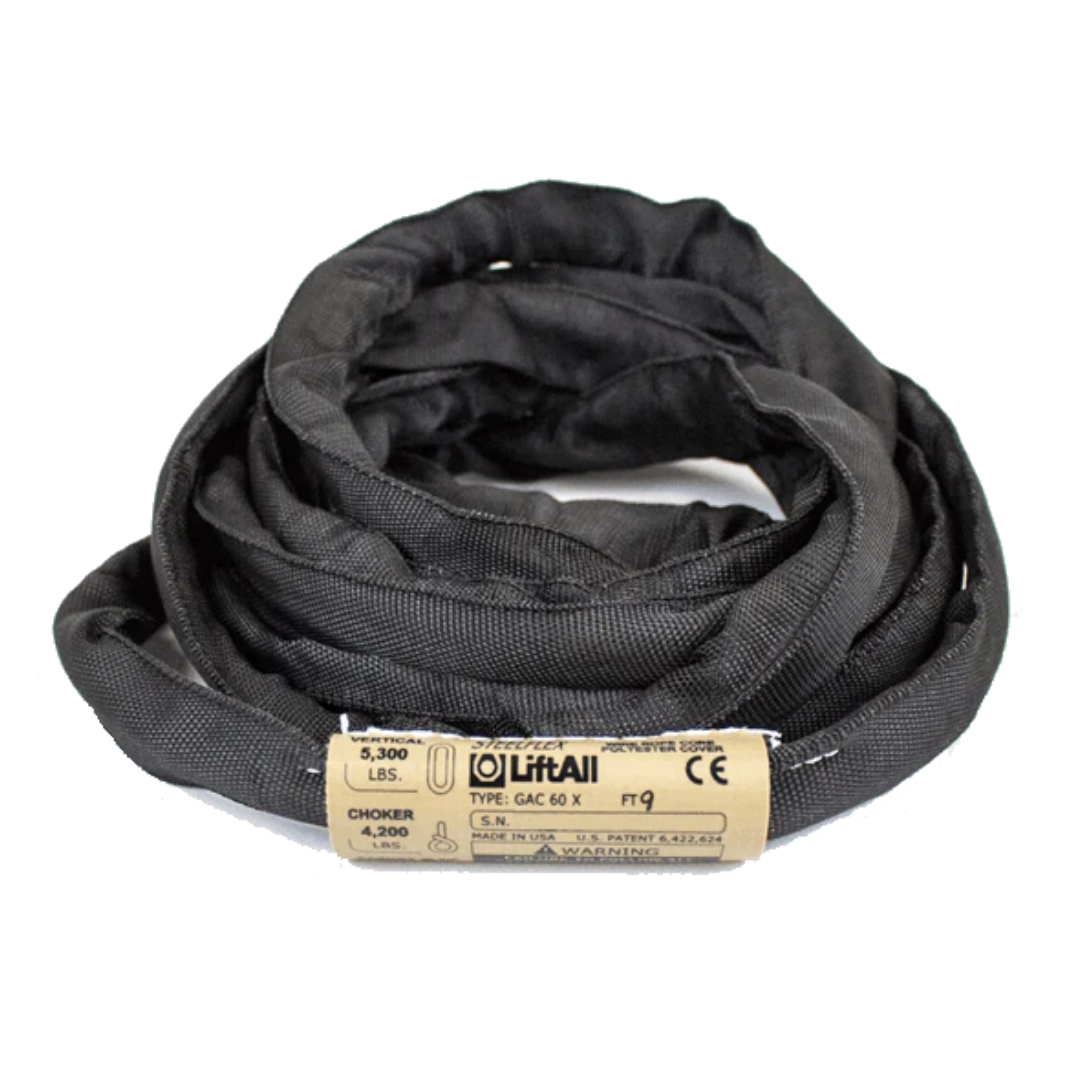

Lift-All® SteelFlex GACEN60 Round Sling – Stage Rigging Essential

The Lift-All® SteelFlex GACEN60 Round Sling is engineered for overhead suspension applications where metal slings are required. Combining the strength of galvanized aircraft cable with the flexibility of a fabric cover, it offers a reliable and efficient solution for stage and entertainment rigging.

Key Features

• Robust Construction: Features a galvanized aircraft cable wound in an endless configuration, encased in a black double-wall polyester jacket.

• Inspection Window: Equipped with a unique inspection window to easily check the core for broken wires and corrosion.

• Heat Resistance: Designed to withstand temperatures up to 400°F (204°C), suitable for various rigging environments.

• No Backup Rigging Needed: Eliminates the need for wire rope backup, simplifying setup and reducing equipment load.

• Compliance: Meets or exceeds OSHA and ASME B30.9 standards, ensuring safety and reliability.

Specifications

• Vertical Load Capacity: 5,300 lbs

• Choker Load Capacity: 4,200 lbs

• Basket Load Capacity: 10,600 lbs

• Weight per Foot: 0.75 lbs

• Body Diameter (Relaxed): 7/8"

• Width at Load: 1 1/2"

• Stretch at Rated Capacity: Approximately 1%

Round Sling Inspection Video

Ideal Applications

• Stage Rigging: Suspending lighting, sound equipment, and trusses in theaters and concert venues.

• Entertainment Productions: Reliable lifting solutions for events and performances.

• Overhead Lifting: Suitable for various overhead suspension tasks in industrial and entertainment settings.

-
