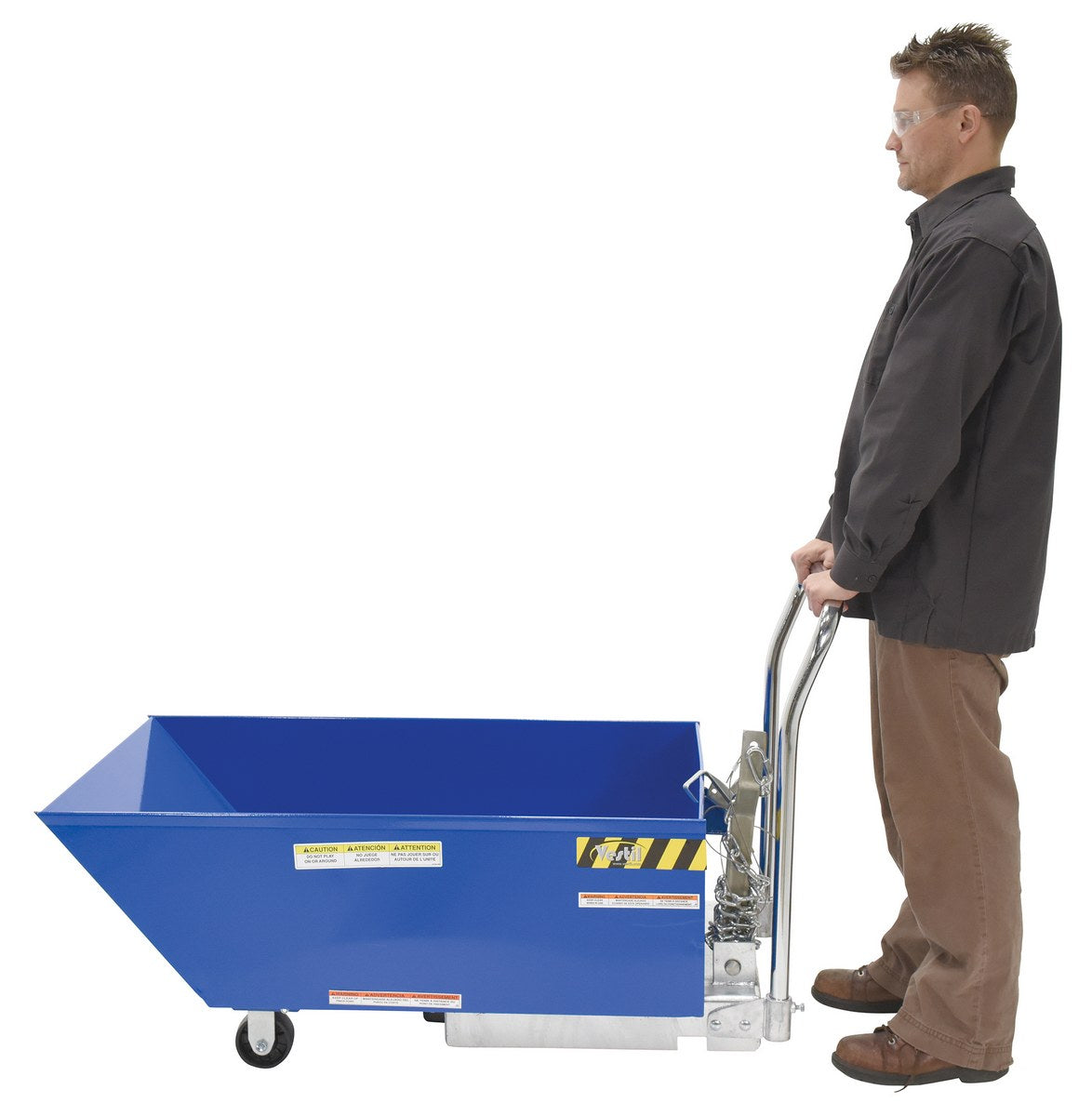

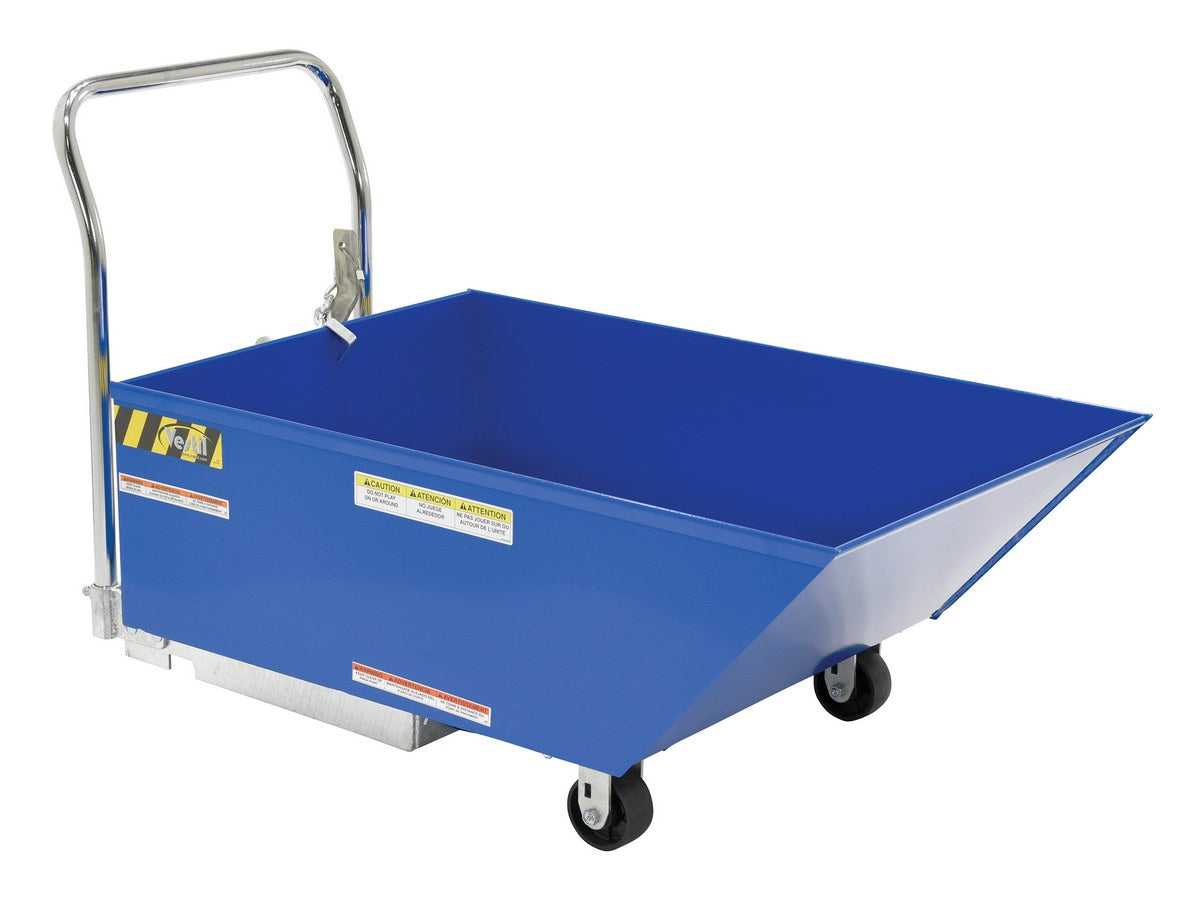

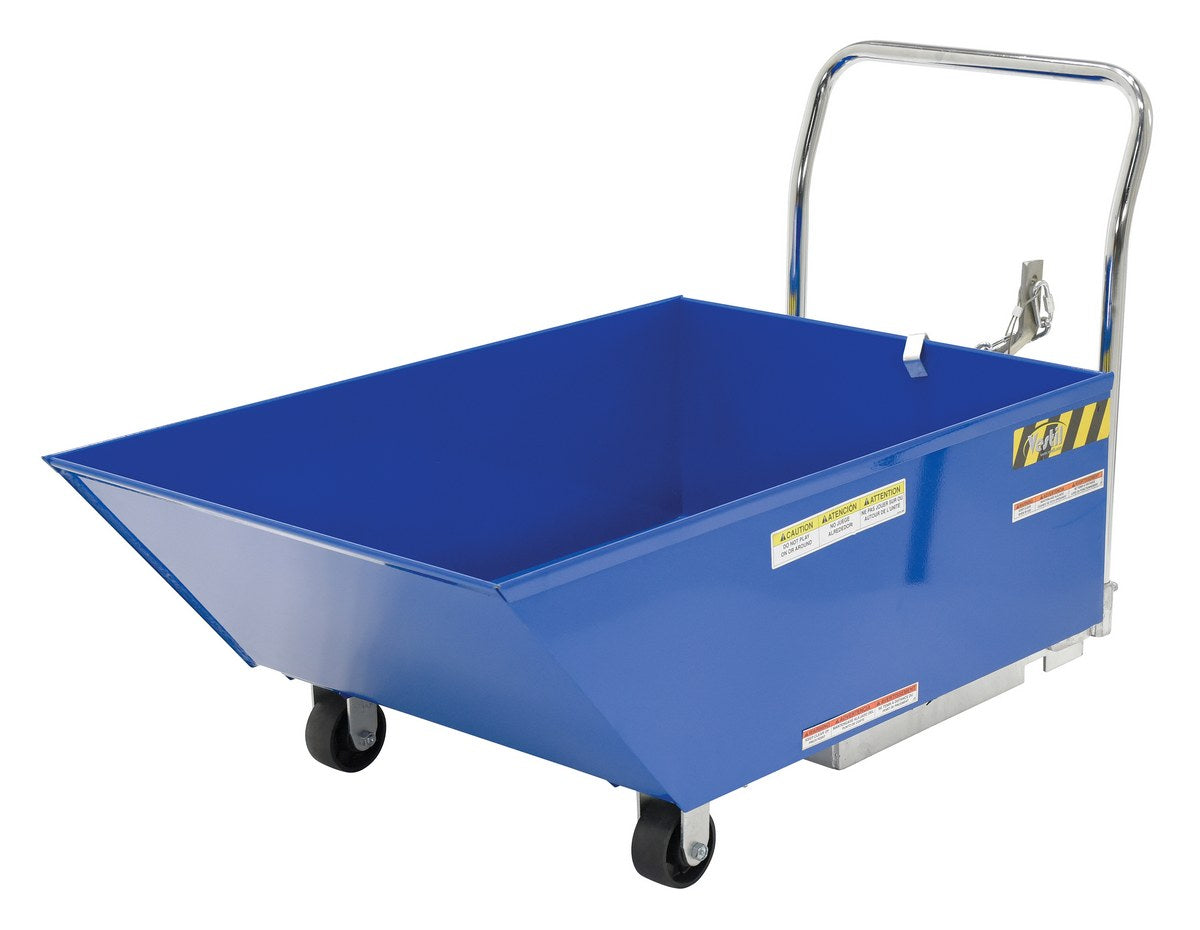

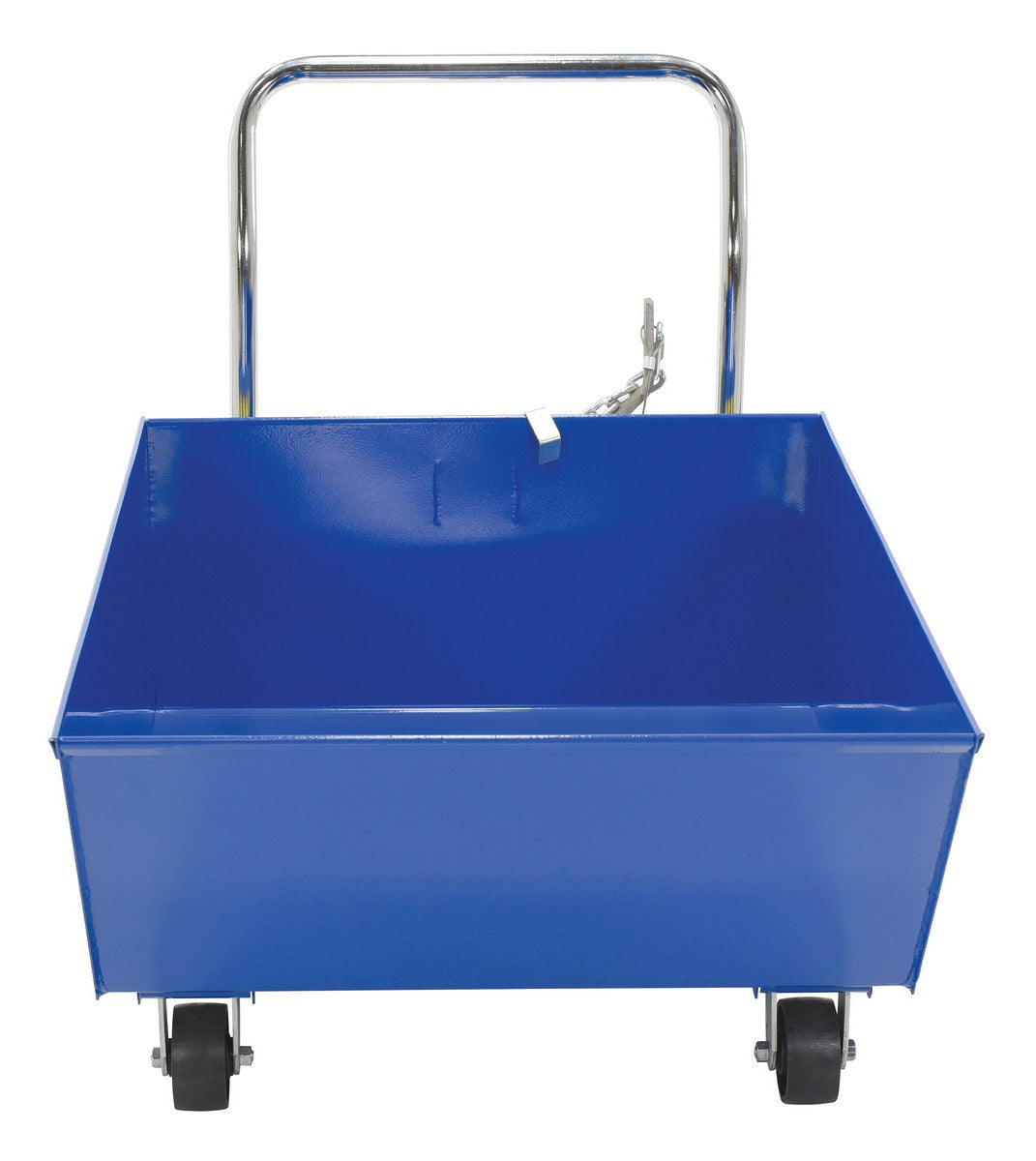

Vestil Manufacturing Corp Low Profile Parts Hoppers

Vestil Manufacturing Corp Low Profile Parts Hoppers

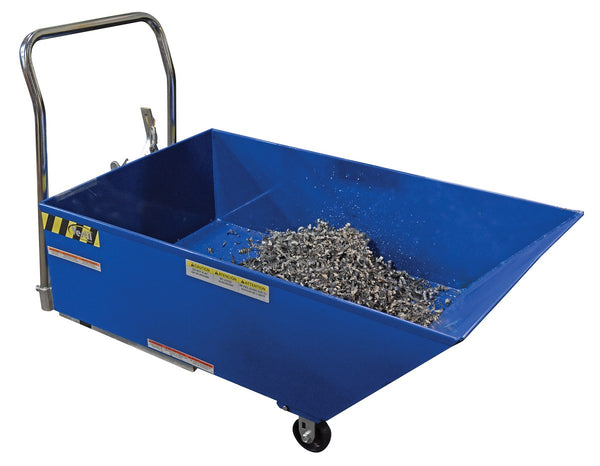

Ideal for use in machine shops for chip and machining recycling!

These unique products have been designed to function as parts hoppers that may be dumped with the assistance of a fork truck. The low profile design allows the hoppers to be placed underneath machinery as a catch basin for parts. The hoppers reduce the hazards, inconveniences, and time associated with collecting parts off the floor. Blue baked-in powder-coated toughness. The 10 gauge parts hoppers have 7"W x 2"H usable fork pockets for dumping the hoppers 90 degrees with a fork truck. HOP-LP roll smoothly on four (4) wheels, 4" x 2" glass-filled nylon, two (2) rigid, one (1) swivel and one (1) swivel with brake. Model HOP-LP-N rolls on three (3) wheels, two (2) rigid and one (1) swivel with brake. Includes a removable push handle. Once the material is dumped, the hopper will return to the locked position when lowered to the ground. Must be attached to fork truck when dumping. Options, including leak proof chute welds, model LEKP, 3/4" drainage plug, model H-DPLG-75, and 2" drain plug model H-DPLG-2 leak proof chute welds included with drainage plugs.

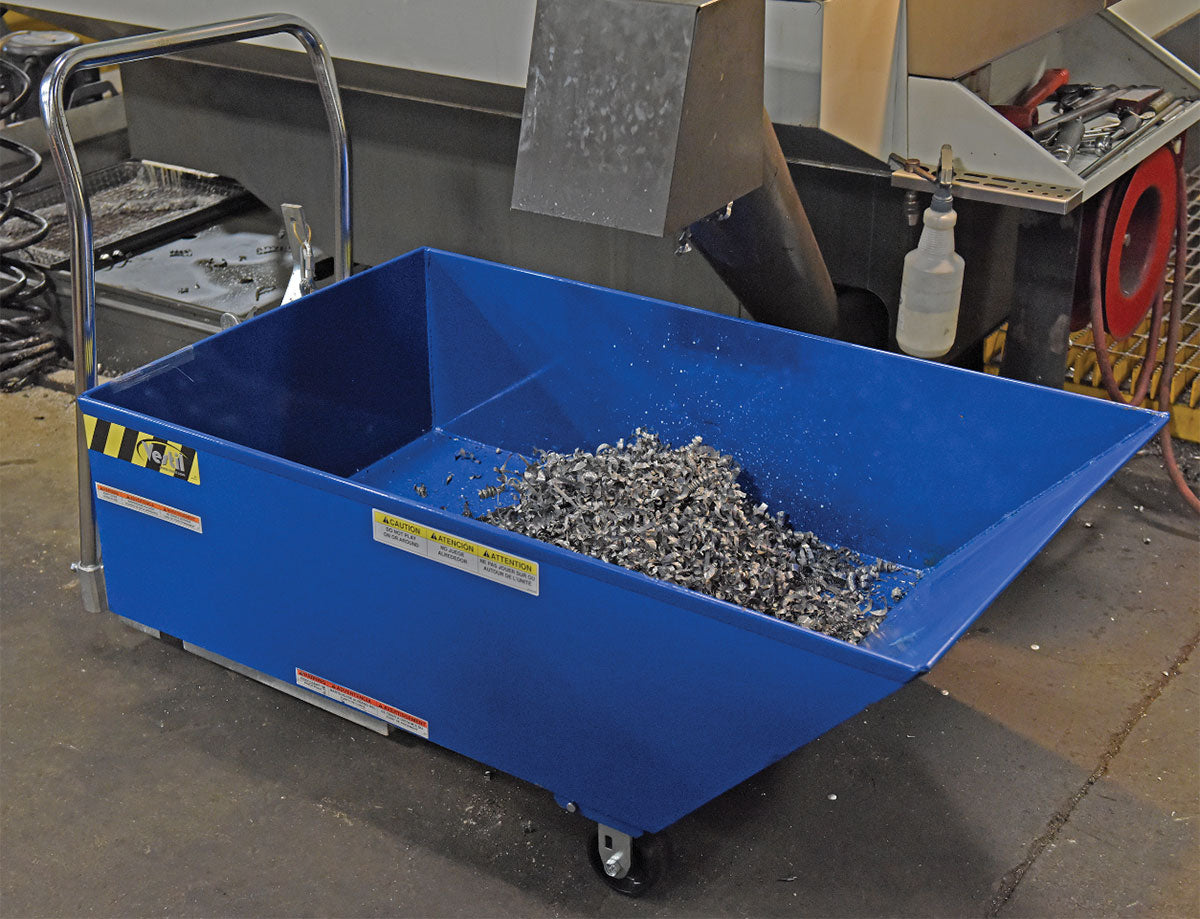

• Special low-profile design catches parts under machinery dispensing chutes
• Unique design returns to upright & locked position when lowered to floor

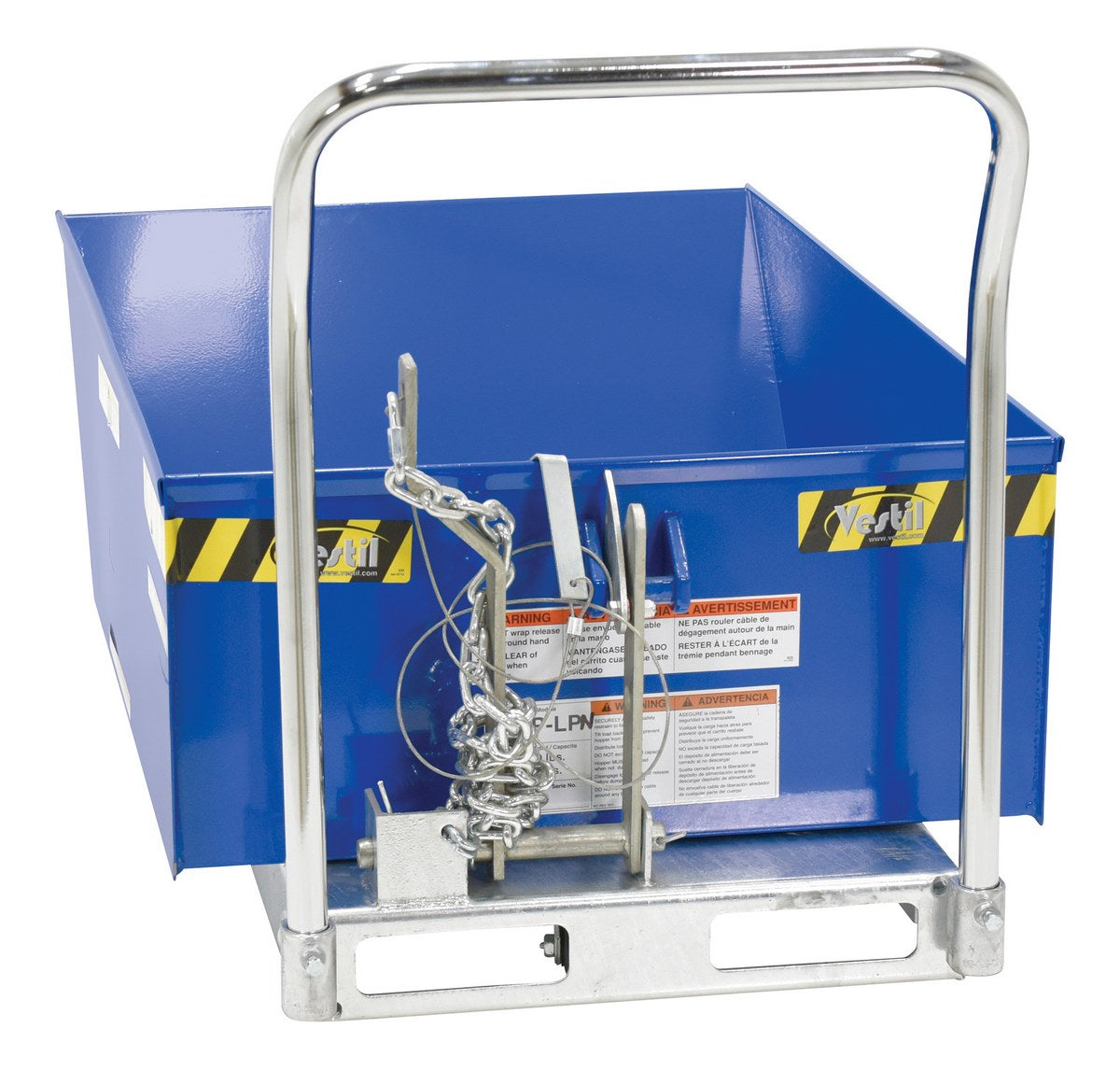

• Safety restraint secures hopper to fork truck
• Two rigid and one locking swivel casters make the unit portable

Manuals

HOP-LP Owners Manual
HOP-LP-N Owners Manual

Testing Certificates

HOP-LP-N
