Vestil Manufacturing Corp Integral Scale for Scissor Tables

Vestil Manufacturing Corp Integral Scale for Scissor Tables

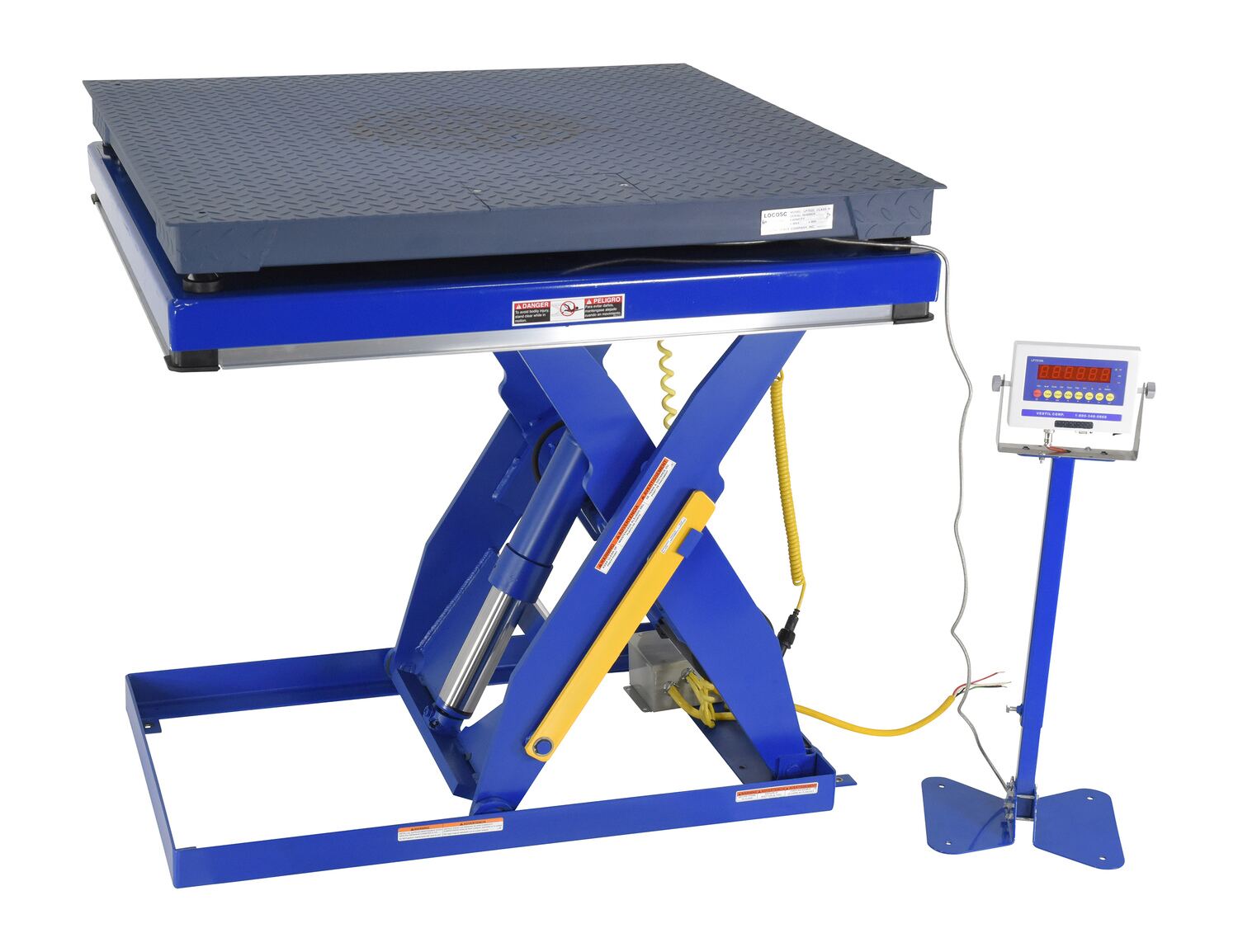

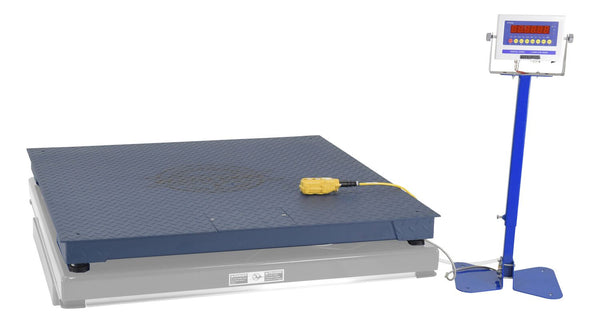

Creating efficient shipping and receiving areas just got easier! With the addition of a scale fixed directly onto the scissor lift surface, weighing and lifting products is significantly streamlined. The scale fits squarely onto the scissor lift platform with no overhang. A functional weight readout screen mounted to a stabilizing pedestal is also included. Approximately 4-1/4" is added to the overall height to the scissor lift table when scale is in place.

• Validate number of pieces or parts
• Know exactly how much weight is on your table
• Bolt-on corner retainers
• No holes or bolting required
• Installs and removes in seconds
• Expedite your shipping & palletizing process
• Available in 36" x 36", 48" x 48", and 48" x 60" platform tops (rests on top of table)
• Adds approximately 4-1/4" to overall height
• Scale functions: zero weight and tare weight
• Weighing units: pounds or kilograms

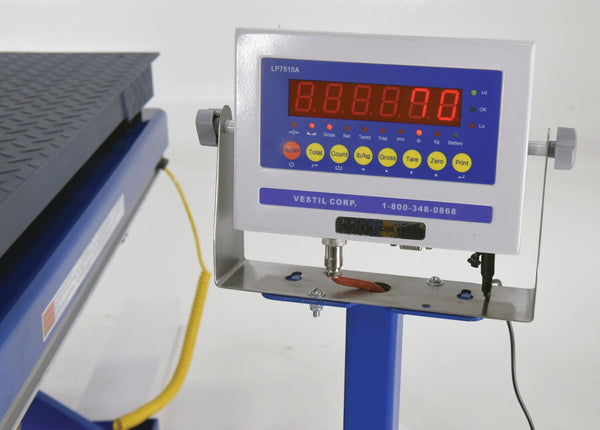

• Indicator mounted on pedestal, 110VAC
• Scale capacity, maximum 5,000 lb.
• Scissor table not included, select next higher capacity scissor table

Manuals

SCALE-MU Owners Manual
