SteelGrip I-Beam Stanchion for HLLs
Product No. 603024K
🎄 Due to the busy Christmas period, please note that orders placed between Monday 16th December and Thursday 2nd January may take longer than usual to be delivered.
Regular price
$358.75 USD
Shipping calculator
Please enter correct zip code
Payment methods
Product details

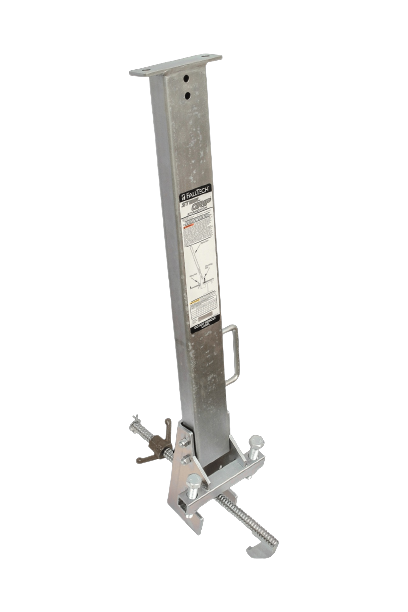

SteelGrip I-Beam Stanchion for HLLs
FEATURES
- SteelGrip® I-Beam Stanchion with 12" clamp for Temporary Cable HLLs
- Plated steel I-beam stanchion with adjustable clamping rod.
- Clamping rod and wing nut adjust to fit flanges from 4" up to 12" wide
- Stanchion base fits I-beam flanges up to 2-1/4" thick
- Stanchion base includes 7/8" Grade 5 securing bolts
- Features integrated carrying handle
- Meets OSHA 1926.502 and 1910.66 regulations
MATERIAL SPECIFICATIONS
Stanchion: Plated carbon steel post, base and clamp; 8,000 lb min. static strength
Fasteners: 7/8" and 1/2" grade 5 carbon steel
PERFORMANCE SPECIFICATIONS
Static Strength: 8,000 lb Min
OSHA User Capacity: 310 lb max. per user; 2 users max. per single span
SIZES & PART NUMBERS
- 603012K - 4"-12" Flange Beam Clamp
- 603024K - 4"-24" Flange Beam Clamp
DOWNLOADS
COMPLIANT WITH:
OSHA 1926.502 and 1910.66
