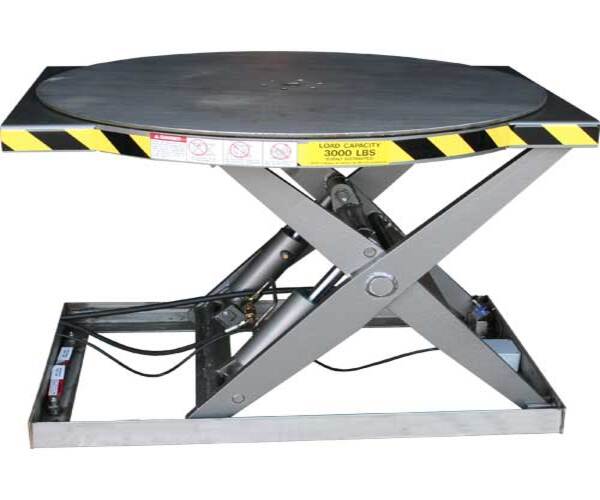

Semi-Stainless Roto-Max SS
Roto-Max was designed from the ground up with the operator in mind. The Roto-Max electric hydraulic work positioner places the load at the operator to determine where he or she would like the work load positioned.
The Semi-Stainless Steel Edition of The Roto-Max features the following:
- Stainless Steel Round Top
- Stainless Steel Base Frame
- Steel-It Scissor Arms
- Water Resistant Remote Power Unit
- Stainless Steel Bearings
- Water Proof Lift Limit Switch
Standard Features
-
360 Degree rotating top with heavy duty cam rollers and exclusive Roto-Bearings.
-
Cylinders with internal stops, hard chrome plated, polished shafting hydraulic cylinder piston rods
-
Surfaces degreased and descaled
-
Integral gear pump with check valve, relief valve, solenoid valve
-
Smooth stainless steel top with yellow and black safety strips
-
10 foot power cord (Connector not included)
-
Control box NEMA constant pressure, magnetic backed
-
S.A.E. hoses and fittings
-
Internally mounted motor
-
Includes hydraulic oil and filter
Options
-
Rotation Brake
-
Fork Pockets
-
Spring Activated Detents
-
Rectangular Top
-
Stainless Steel Sub Top
-
Fork Entry Bars
Specifications
| Base Model |
Vertical Travel |
Capacity | Height | Platform Size |
Up Speed |
Base Frame |
Motor | Voltage | |
|---|---|---|---|---|---|---|---|---|---|
| Lower | Upper | ||||||||
| RTMX-25HS-SS | 26" | 2,500 lbs | 6.5" | 32.5" | 43" Dia. | 10 sec | 30" x 45" | 1.5HP | 115 |
| RTMX-30-SS | 26" | 3,000 lbs | 6.5" | 32.5" | 43" Dia. | 14 sec | 30" x 45" | 1.5HP | 115 |
| RTMX-35-SS | 26" | 3,500 lbs | 6.5" | 32.5" | 43" Dia. | 19 sec | 30" x 45" | 2HP | 230/460 |
