Petzl JAG SYSTEM Haul Kit

P044AA00

$329.95

Length

3.3 ft

6.6 ft

16.4 ft

Qty

Category: Professional Rope Access, Pulleys, Rope Grabs & Ascenders

This product ships directly from the manufacturer and lead times may vary. To request an estimated lead time, enter your email address below and press the "Request Lead Time" button:

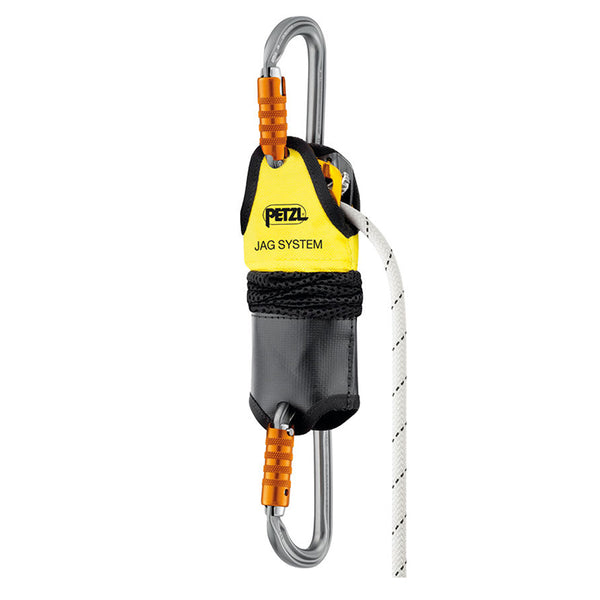

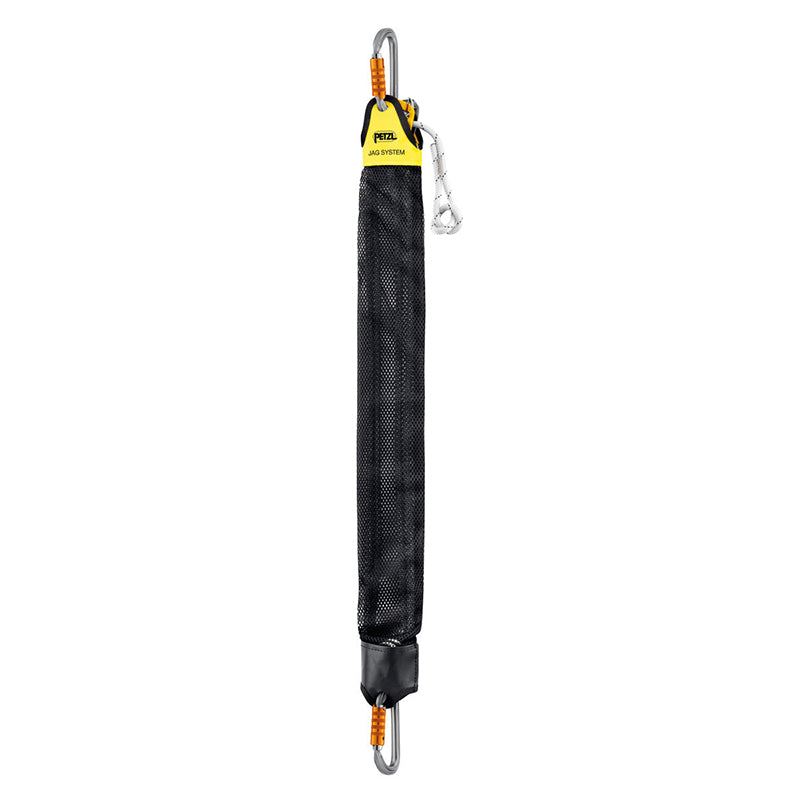

Petzl JAG SYSTEM Haul Kit

The Petzl JAG SYSTEM Haul Kit allows pickoffs, making a releasable anchor, or tensioning a system, thanks to its 4:1 mechanical advantage and excellent efficiency (sheaves with sealed ball bearings). This collapsed kit is highly compact, allowing it to be used even when the distance to the anchor is very short. The JAG SYSTEM haul kit is quick and easy to deploy: it is ready to use thanks to the flexible cover that prevents any risk of tangling. The haul end is color-coded for instant identification. This haul kit also comes with two Am'D TRIACT-LOCK auto-locking carabiners. The JAG SYSTEM is available in three lengths: 3.3 ft, 6.6 ft and 16.4 ft.

For any inquiries please contact us via Chat.

SPECIFICATIONS

Material(s): Aluminum, Nylon, Polyurethane
Sheave Type: Sealed Ball Bearings
Certification(s): EAC

SKU	P044AA00	P044AA01	P044AA02
Deployed Length	3.3 ft	6.6 ft	16.4 ft
Collapsed Length	1.05 ft	1.1 ft	1.3 ft
Weight	1.34 lbs	1.77 lbs	3.2 lbs
Rope Diameter	0.31''	0.31''	0.31''
Working Load	6 kN	6 kN	6 kN
Breaking Strength	16 kN	16 kN	16 kN
Efficiency	91%	91%	91%

FEATURES

Versatile:
- Allows pickoffs, making a releasable anchor, tensioning a system...
- Can be coupled with an I'D descender to make a reversible rescue kit to pick off and evacuate a victim
Hauling effectiveness:
- 4:1 mechanical advantage allows user effort to be divided by 4
- Excellent efficiency due to sheaves mounted on sealed ball bearings
- Deployment possible even when the distance to the anchor is very short, thanks to the extreme compactness of the collapsed system
- 0.31'' lightweight rope diameter. The mechanical advantage guarantees a good grip.
Quick and easy to deploy:

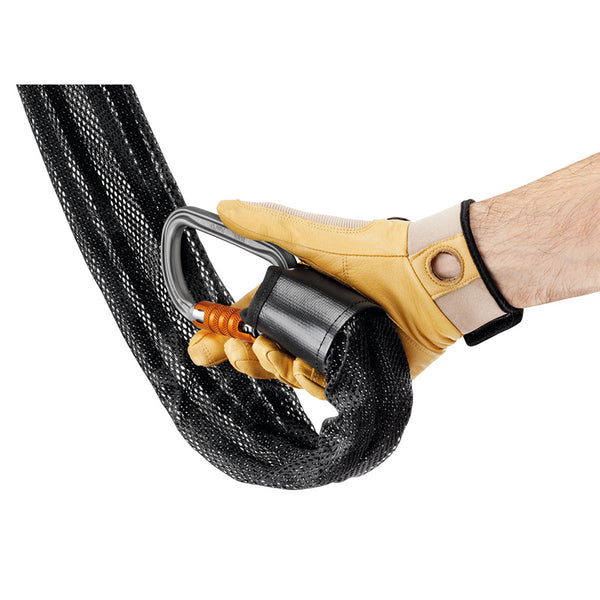

- Kit always ready to use, thanks to the flexible cover that prevents any risk of tangling
- Haul end immediately identifiable, thanks to the yellow color of the end of the cover
- The ends of the cover hold the connectors in position to facilitate clipping
Comes with two Am'D TRIACT-LOCK auto-locking carabiners
Available in three lengths: 3.3 ft, 6.6 ft and 16.4 ft
JAG and JAG TRAXION pulleys also available separately for making long haul systems (e.g. confined space descent/ascent system)

RESOURCES

Technical Notice

PPE Inspection Procedure
