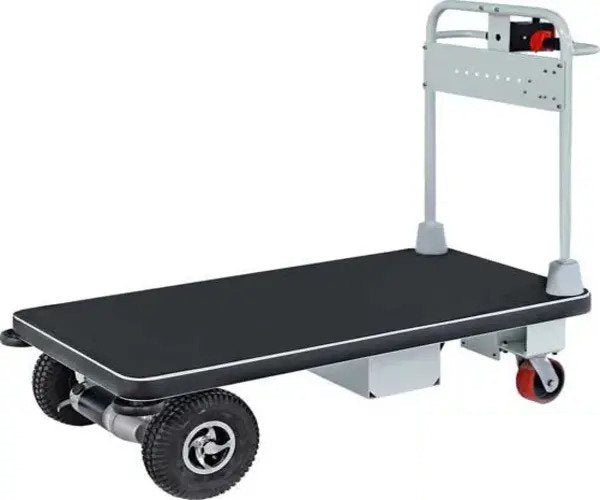

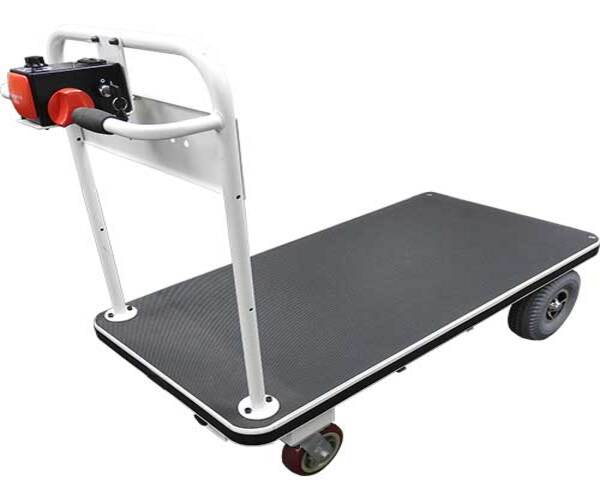

Moto-Cart Jr.
The Moto-Cart Jr. is an economical solution to electric cart applications. Designed as a more basic model than the standard Moto-Cart, this cart still offers Transaxle drive and advanced roller grip controls.
One major difference between the Moto-Cart Jr. and Moto-Cart is that it features a front wheel transaxle drive versus the center wheel drive on the standard Moto-Cart. While the front wheel drive does increase the turning radius of the unit, it also allows for improved incline performance and can be used in applications with inclines up to 8°
The 4-Wheel Moto-Cart Jr. comes in two popular sizes and has a 1,100 lb capacity. The maintenance free batteries are rechargeable with an remote onboard charger that runs on standard 115 voltage.
Standard Features
-

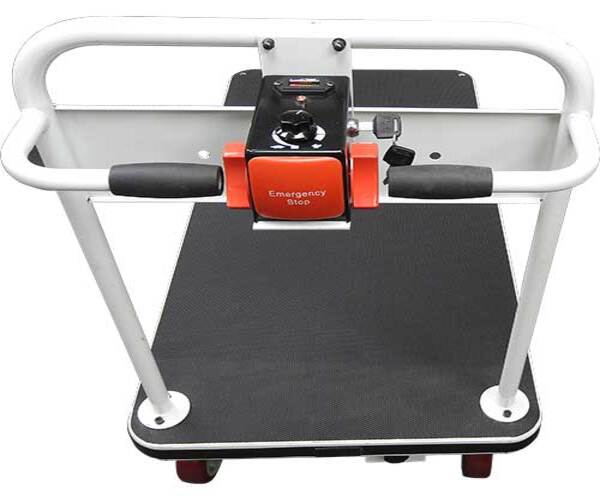

Roller Grip Controls
-
Variable Speed
-
Adjustable Top Speed
-
Power Red Light
-
Emergency Stop Bump Switch
-
Key Switch
-
Automatic Breaking
-
24 Volt Electrical System
-
Curtis Controls
-
Color: White w/Black Deck Mat
-
Battery Reset Switch
-
Slide Out Battery Tray
-
Brake Disengage Button
-
(2) 33 AMP Batteries
-
On-Board UL-Charger
-
Free Wheel Mode
-
Pneumatic Rubber Drive Wheels
-
Poly Casters
-
Front Wheel Transaxle Drive
-
Battery Gauge
-
Full Perimeter Bumper
-
Back-Up Beeper
Options
-
Wire Shelving
-
Totes
-
Custom Designs
Specifications
| Model | Capacity | Useable Deck |
Overall Size |
Height | Max Incline |
Weight | |
|---|---|---|---|---|---|---|---|
| Deck | Handle | ||||||
| JRMC-11-SC | 800 lbs | 24" x 36" | 24" x 38.5" | 12.5" | 43" | 8° | 243 lbs |
| JRMC-11 | 1,100 lbs | 24" x 45.5" | 25" x 52.5" | 12.5" | 43" | 8° | 395 lbs |
| JRMC-11-W | 1,100 lbs | 34" x 45.5" | 36" x 52.5" | 12.5" | 43" | 8° | 430 lbs |
