Motion Labs P14 Hoist Motor Cable, Overmolded 16/7 SEOOW
- P14 Souriau Connectors: 14 pin, 1/4 turn bayonet style, aluminium body, with overmolded ends.
- 16/7 SEOOW, 13A: 600V, 105°C hoist power and control cable, with a dog clip on the hoist end.
- 25 ft to 150 ft: Six lengths, from 7 lb at 25 ft to 32 lb at 150 ft.
- Overmolded Strain Relief: Replaces metal backshells and reduces twisting at the connector.
Motion Labs P14 Hoist Motor Cable, Overmolded 16/7 SEOOW

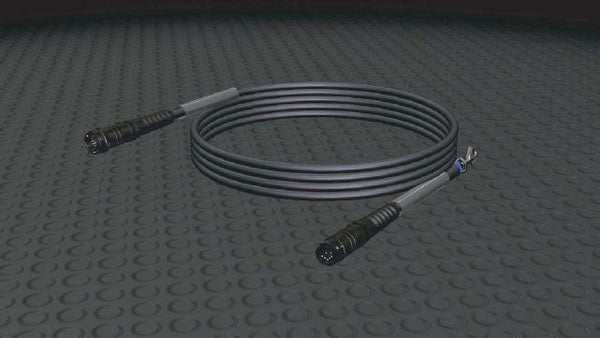

The Motion Labs P14 Hoist Motor Cable is a 16/7 SEOOW hoist power and control cable with overmolded Souriau 14 pin bayonet connectors. Rated 13A at 600V and 105°C, it comes with a dog clip on the hoist end and is available in lengths from 25 ft to 150 ft.
Key Features and Highlights
- P14 Souriau Connectors: 14 pin multi-pin connectors with a 1/4 turn bayonet coupling, shell size 20, black aluminium bodies and crimp termination, UL Listed.
- 16/7 SEOOW Cable: 600V, 105°C, UL/CSA Listed cable carrying hoist power and control.
- 13A Rating: Connectors are rated 15A, and the cable is rated 13A.
- Dog Clip: Strain relief clip on the hoist end.
- Six Lengths: 25, 50, 75, 100, 125 or 150 ft, weighing from 7 lb to 32 lb.
- Ready to Label: 6 in clear heat shrink on each end for your labels.
Why Choose This Product?
On a mechanical connector, the conductors can become stressed at the terminations and the insert can loosen and spin. Overmolding locks the cable and connector together, which Motion Labs states improves shock absorption, pull strength and flex relief. It also removes torsion between the cable and connector, reducing the risk of burnt or pushed-back pins, shorts and hot spots.
Who Is This Product For?
Ideal for: riggers, production crews and rental houses running chain hoists and controllers with P14 connections.
Important: Size your hoist load to the 13A cable rating, not the 15A connector rating.
Materials and Construction
Motion Labs uses a two-step overmolding process. First, an injected polymer encapsulates the conductors and pins or sockets in a custom mold. Then a rubberised outer layer is molded over the assembly, replacing the metal backshell. To check your 14 pin hoist cables before each job, Motion Labs also makes the CT-002 touchscreen cable tester.
