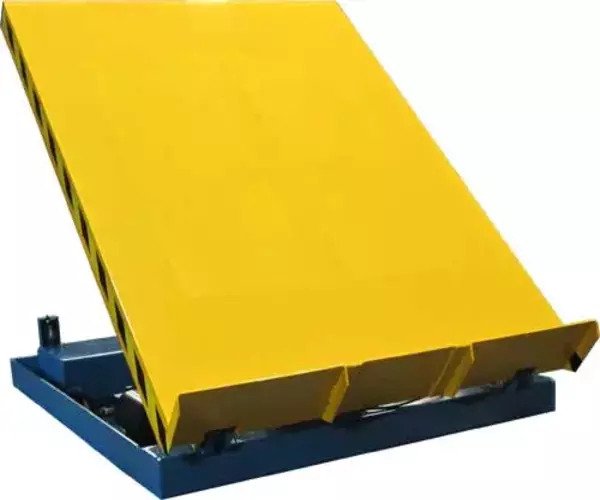

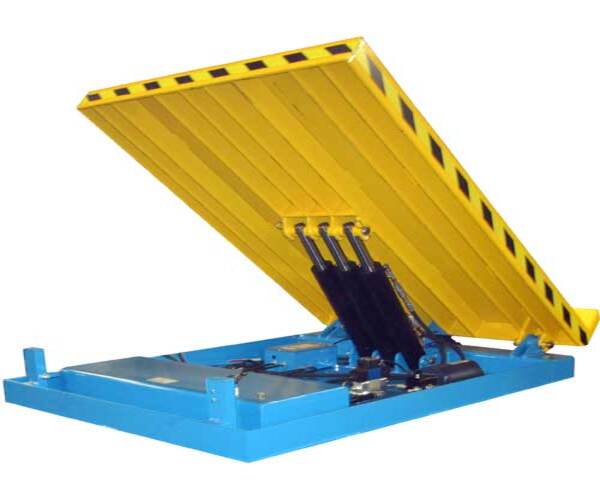

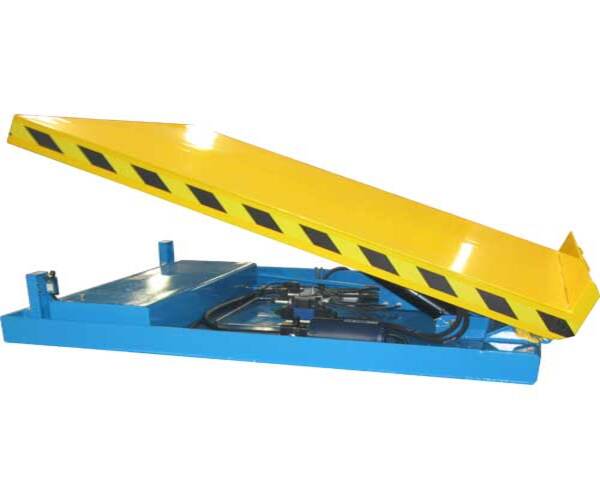

Max-Tilt Hydraulic Tilt Tables
Max-Tilt tables are designed for those applications where tilting the load provides for improved access to the product. Tables availble with 45° or 90° tilt.
Max-Tilt tables are electric hydraulic with the 45° models powered up and gravity down, while the 90° models are powered both up and down with double acting cylinders.
With capacities of 2,000 - 6,000 lbs., the Max-Tilt series can handle most applications.
Standard Features
-
1.5 HP triple duty internal motor
-
Regreasable zerk fittings on pivot points
-
Ribbed steel reinforced platform deck
-
115/230 single or 230/460 3 phase voltage
-
30 amp dedicated circuit is required for 115 volt
-
10' power cord (connector not included)
-
Hydraulic gear pump
-
Check & solenoid valve, filter and velocity fuse
-
Color yellow top with blue frame
-
Powered up / gravity down on 45° tilt
-
Powered up / powered down on 90° tilt
-
Tilt limit switch
-
Push button magnetic back control box
-
Smooth steel deck with 4" high lip on hinge end
-
High quality chrome plated cylinder
-
Control box with magnetic starter transformer
-
Thermal overload and fuses in control box
-
Designed for surface or lift table mounting
Options
-
Foot control switch
-
Tapered toe guards
-
Lowering beeper
-
Raised base
-
Remote power unit
-
Safety skirting
-
Special color
-
Adj. tilt limit switch
-
Custom lip
-
Side walls
-
V-cradle top
-
Remote control
-
Custom platform sizes
-
Custom platform shapes
-
Custom tilt speeds
Specifications
| Base Model |
Capacity | Tilt | Platform Size | Lowered Height |
Tilt Speed |
Cylinders | |
|---|---|---|---|---|---|---|---|
| Min | Max | ||||||
| LPTT-20 | 2,000 lbs | 45°/90° | 24" x 36" | 72" x 72" | 10" | 16s/20s | 1 |
| LPTT-40 | 4,000 lbs | 45°/90° | 24" x 36" | 72" x 72" | 10" | 19s/28s | 2 |
| LPTT-60 | 6,000 lbs | 45°/90° | 24" x 36" | 72" x 72" | 10" | 24s/48s | 3 |
