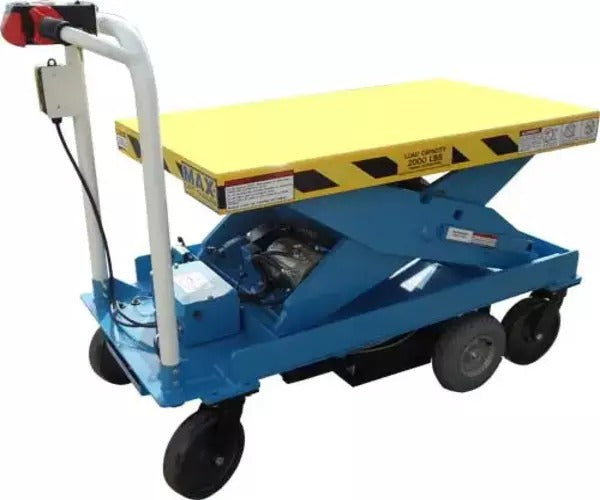

LPMC Self Propelled Lift Carts
The LPMC series of self propelled industrial lift carts is a hybrid product created by mounting a heavy duty transaxle drive system to our Max-Lift table. Additional changes are made to ensure the most stable and maneuverable lift cart possible.
The lift cart features roller grip controls for moving while lifting is achieved by a handle mounted push button pendent control. In order to create a safe working environment, the lifting function is disabled during horizontal travel.
The LPMC mobile lifts are built-to-order and are highly customizable. We can alter the lift table in numerous ways including custom platform sizes, shapes and top designs as well as the underlying electric platform truck's controls, size and caster arrangement.
Standard Features
- Heavy duty 24V DC electronics and drive motor
- 24V DC operating control voltage
- Constant pressure up-down push controls
- Cylinders with internal stops
- S.A.E. hoses and fittings
- Integral safety restraint maintenance bars
- NEMA1 prewired controls & electrical connectors
- Control box contains contactor and fuses
- Chrome plated shafting cylinder piston rods
- Surfaces degreased & descaled
- Surfaces finished with Yellow & Blue enamel
- Top with yellow & black safety strips
- Gear pump with check, relief, & solenoid valve
- Lift inactive while cart is in motion
- Limited speed while lift is raised
- Includes hydraulic oil and filter
- Roller variable speed forward/reverse controls
- Rabbit/turtle switch for top speed control
- Power on green light
- Flashing green light when battery is low
- Emergency stop bump switch
- Horn and key switch
- Automatic braking (Dynamic regenerative)
- Automatic parking brake (Electro-mechanical)
- Splash proof electronics
- Release brake drive inhibit
- Charge mode drive inhibit
- Throttle fault inhibit
- On-Board battery charger
- Free-wheel mode
- Heavy duty articulated transaxle drive
- Two 35 amp maintenance free batteries
Options
-
Custom platform sizes
-
Custom platform shapes
-
Conveyor Top
-
Magnet backed lift controls
-
Curtis control programming
-
Top side walls
-
Outboard mounted casters
-
Safety skirting
-
Custom colors
Specifications
| Base Model |
Vertical Travel |
Height | Capacity (lbs) |
Platform Size | Max Speed |
||
|---|---|---|---|---|---|---|---|
| Lower | Upper | Min | Max | ||||
| LPMC-24 | 24" | 17" | 41" | 26" x 41" | 48" x 60" | 2.6 MPH | |
| LPMC-36 | 36" | 17" | 53" | 26" x 48" | 48" x 72" | 2.6 MPH | |
| LPMC-48 | 48" | 17.5" | 65" | 26" x 64" | 48" x 84" | 2.6 MPH | |
