Lift Products Inc LPBD Hydraulic Drum Dumpers
Product No. LPDD
Shipping calculator
Payment methods
Product details

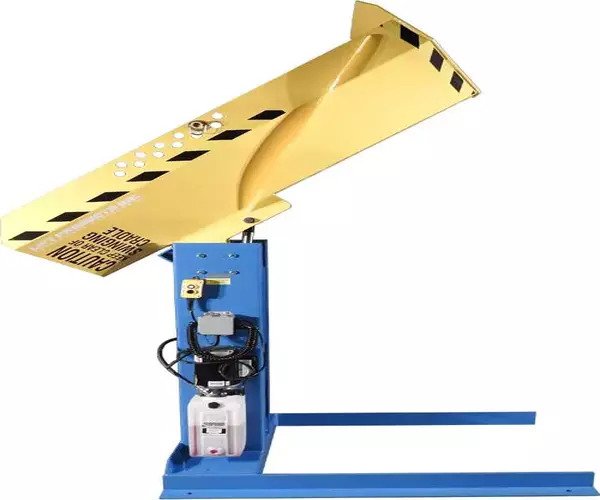

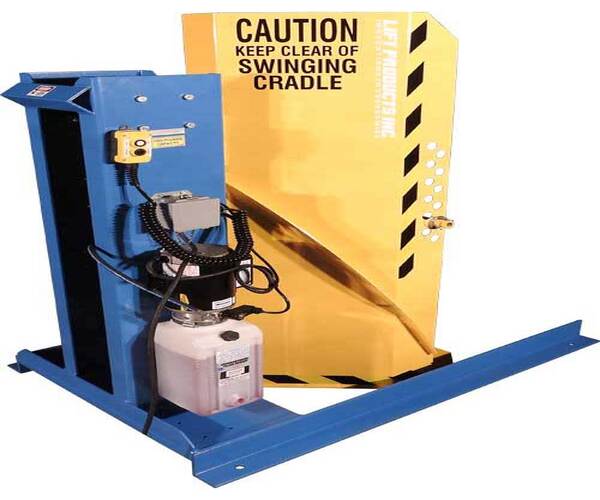

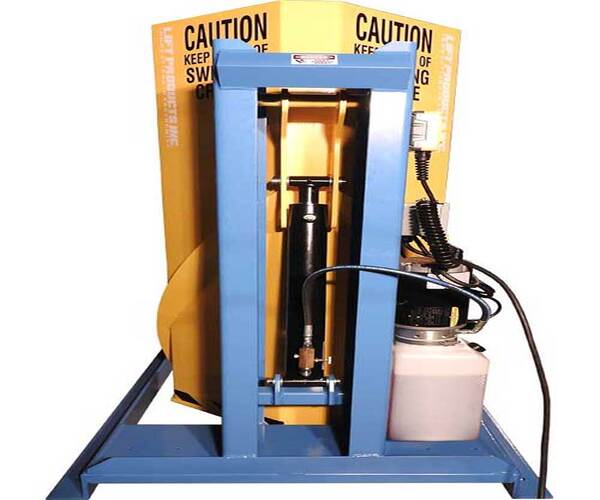

LPBD Hydraulic Drum Dumpers
Lift Products’ Hydraulic Drum Dumpers allow for safe and efficient drum dumping of a wide variety of drum sizes and heights. Constructed of heavy-gauge carbon steel with a powder coat finish, The LPDD series of drum dumpers handle weights up to 1,500 lbs. with dump heights of 36”, 48”, or 60”. An adjustable hold down bar secures the drum and accommodates drum heights of up to 43”. Custom hold down bar heights are available. With an up speed of only 25 seconds, material from a drum is quickly dumped at a 45-degree angle down the reinforced steel chute. Standard chute reach lengths are between 7” and 11” and can be customized per application.
For increased safety, the LPDD Drum Dumper features an adjustable flow control to safely lower the chute to its down position. The unit features a NEMA12 power up and gravity down power unit that is equipped with a 1 HP motor and 1 GPM pump. Units are available in both stationary and portable designs to fit all applications.
Standard Features
-
Handles containers up to 24" in diameter
-
1/60/110V Power unit
-
Operation: Hydraulic up / Gravity down system
-
Gravity down system with adjustable flow control to safely lower chute
-
Heavy-gauge carbon steel construction with powder coat finish
-
Magnetic backed control box to power chute up
-
45° maximum dumping angle
-
Adjustable hold-down bar keeps container from shifting
-
1 HP motor anda 1 GPM pump
-
25 second up speed quickly dumps drums
Options
-
Custom Chute Sizes
-
Custom Dump Heights
-
Continuous Duty Cycle Motor
-
Foot Controls
-
Custom Hold Down Bar Heights
Specifications
| Model | Dump Height |
Capacity (lbs) |
Chute | Clearance | Footprint (L x W) |
Weight (lbs) |
||
|---|---|---|---|---|---|---|---|---|
| Height | Reach | Overhead | Horizontal | |||||
| LPDD-010-36 | 36" | 1,000 | 58.5" | 11" | 96.5" | 60" | 52" x 36" | 363 |
| LPDD-010-48 | 48" | 1,000 | 65.5" | 9" | 112.5" | 68" | 52" x 36" | 404 |
| LPDD-010-60 | 60" | 1,000 | 72.5" | 7" | 129.5" | 76" | 52" x 36" | 446 |
| LPDD-015-36 | 36" | 1,500 | 58.5" | 11" | 96.5" | 60" | 52" x 36" | 660 |
| LPDD-015-48 | 48" | 1,500 | 65.5" | 9" | 112.5" | 68" | 52" x 36" | 690 |
| LPDD-015-60 | 60" | 1,500 | 72.5" | 7" | 129.5" | 76" | 52" x 36" | 720 |
