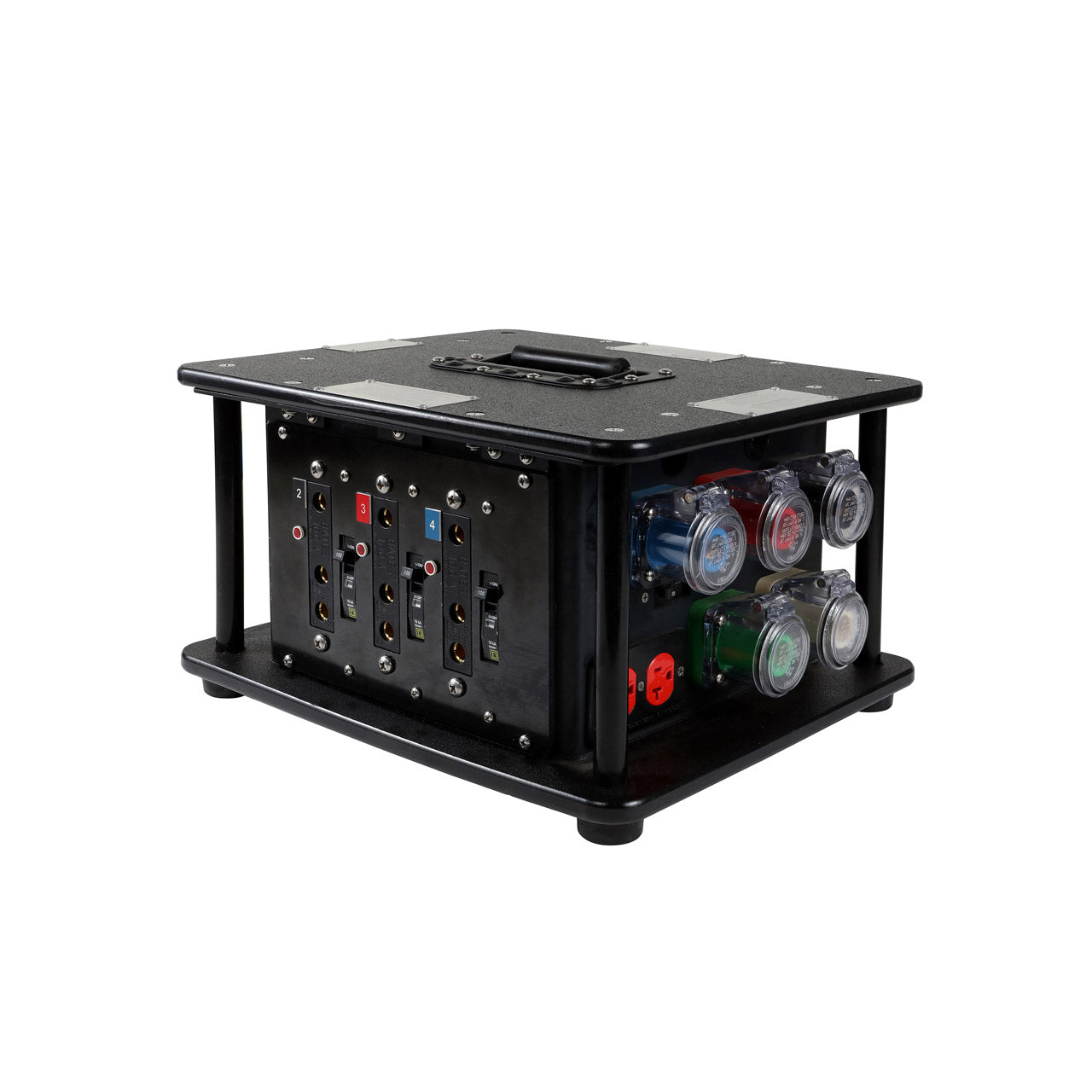

Lex 600 Amp CineBox

Product No. PH400A1-N2J-26BC2CC

Regular price $4,209.05 USD
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_express apple_pay diners_club discover facebook_pay google_pay master shopify_pay visa
Product details

Provides 100 Amp stage pin receptacles for high power lighting effects or to distribute power further downstream. 5-20 Duplex receptacles provide convenient power for smaller lights. The feed thru feature allows multiple boxes to be placed along the same feed.

SPECIFICATIONS

  • Rating 400 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
  • Environmental Rating NEMA 1 Indoor
  • Input (1) set of (5) 16 Series Cam-type color-coded plugs, panel mount
  • Output (6) 100 Amp, 2 Pole, 3 Wire, 120 VAC, stage pin receptacles; (2) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC, duplex receptacles
  • Feed Thru (1) set of (5) 16 Series Cam-type color-coded plugs, panel mount
  • Overcurrent Protection (6) 100 Amp, Single Pole branch-rated circuit breakers. (2) 20 Amp, Single Pole branch-rated circuit breakers
  • Dimensions 14.125” D x 16.25” W x 9.75” H
  • Weight 48.0 lbs

FEATURES

  • Stackable compact design for easy storage and portability
  • Heavy-duty, non-conductive material construction is electrically insulated and resistant to shock, impact and corrosion
  • Breakers are mounted for easy access and circuit identification
  • Hydraulic magnetic breakers will not nuisance trip at higher temperatures
