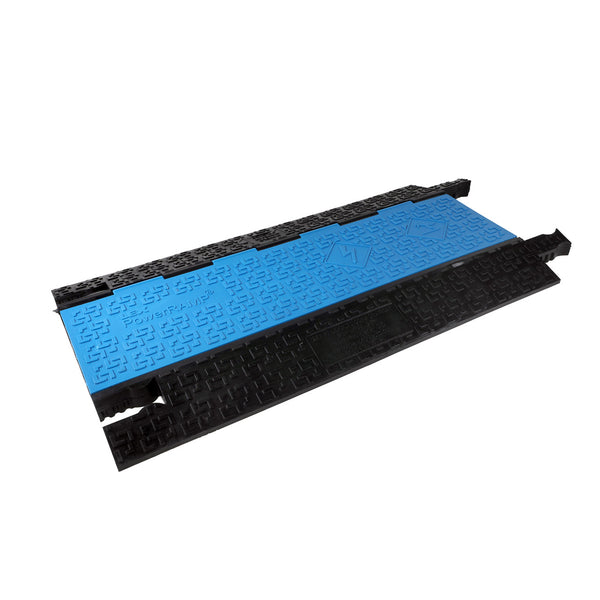

Lex 5 Channel Crossover Cable Protector

PRC-5


Category: Cable Management, Film


Protects cables and hoses from damage when run across roads, parking lots, sidewalks and pathways, providing safe crossing for pedestrian and vehicle traffic.

SPECIFICATIONS

  • Length: 35.5"
  • Width: 19.75"
  • Height: 2"
  • Weight: 27 lbs.
  • Slot Height: (5) 1.25" Channels
  • Slot Width: (4) 1.25" Channels / (1) 1.625" Center Channel
  • Material: Base & Lid: Base & Lid: Polyurethane / Hinge Pin: Reinforced Fiberglass
  • Load Capacity Per Tire/Axle: 16,300 lbs. Per Tire / 32,600 lbs. Per Axle at 70ºF
  • Safety Warning Symbols: Per ANSI Z535.3-2011-Molded in Lid
  • Operating Temperature: -40ºF to 120ºF / -40ºC to 48ºC

FEATURES

  • Heavy-duty, nonconductive polyurethane construction provides safe crossing for pedestrians and vehicles while protecting electrical cables and hose lines
  • Rugged industry standard connectors with exclusive "slip notch" friction release design provides easy mating and un-mating
  • Mates with major cable protector brands and products

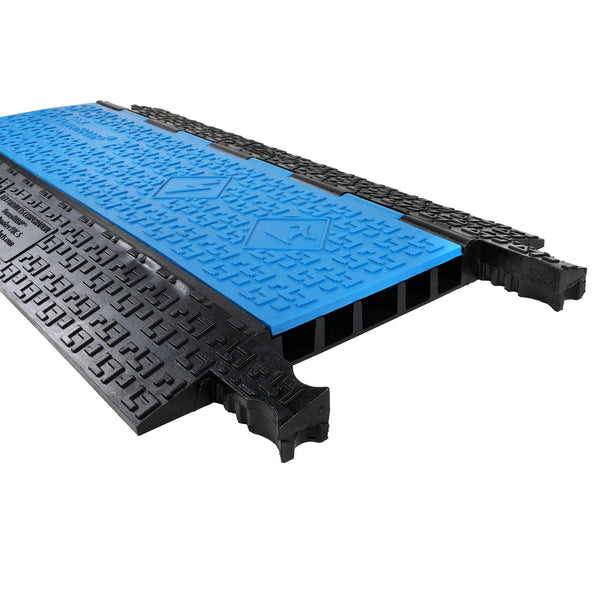

  • 5-channel design can accommodate up to 1.25 inch diameter cables and hoses
  • 1.625 inch wide center channel allows for up to #2 AWG 5-wire banded sets

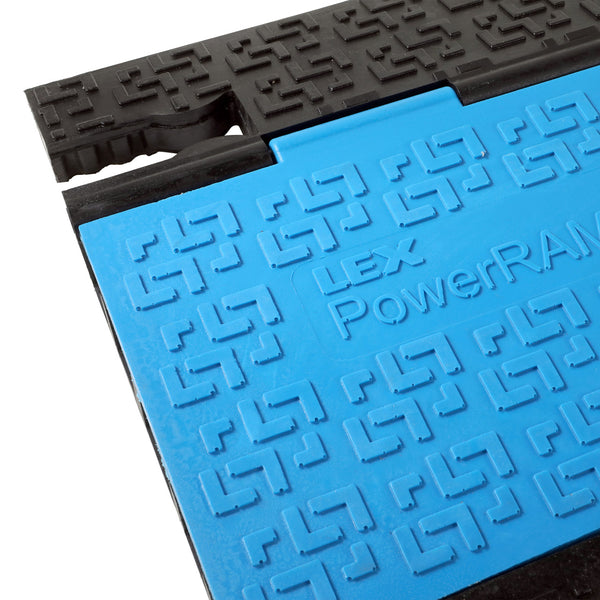

  • Exclusive tread design provides excellent traction

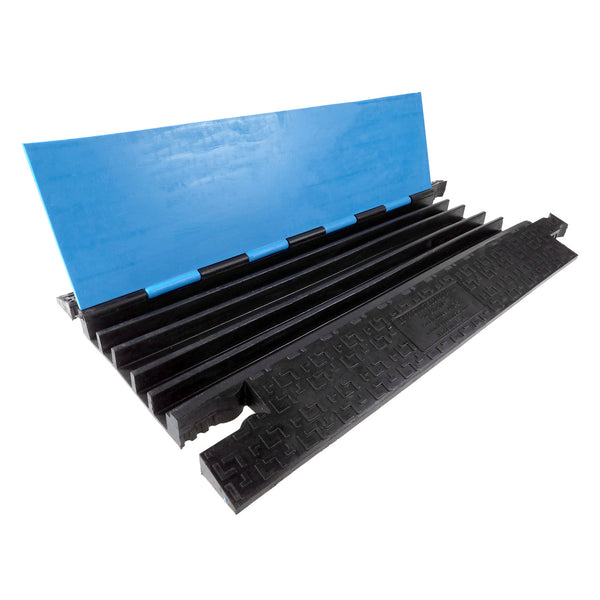

  • Hinged lid provides easy access for insertion and removal of cables and hoses
  • Made from UV stabilized material for prolonged use in direct sunlight
  • High-visibility blue lid and black base
  • Company name or logo can be molded into lid for easy identification
