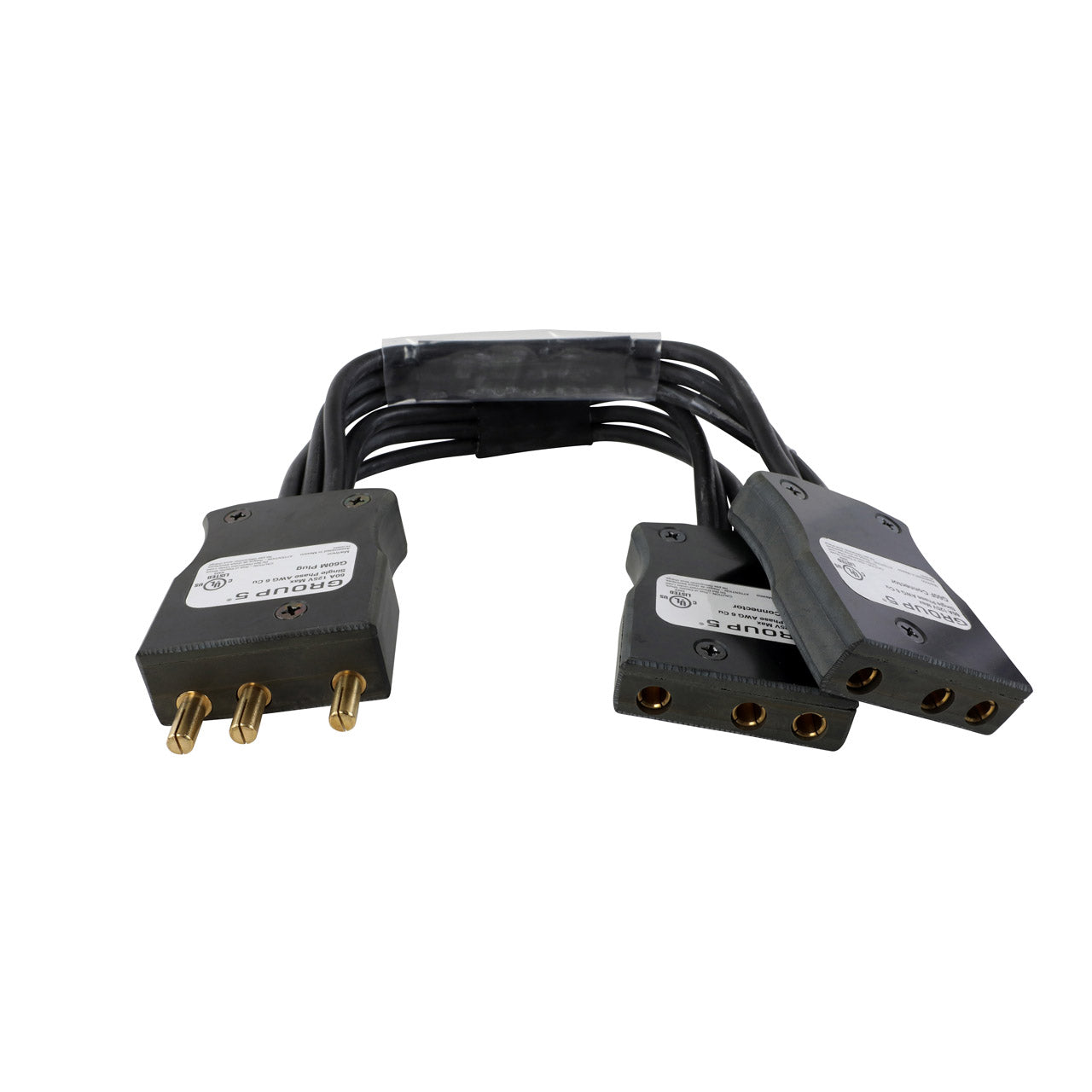

Lex 100 Amp Male Bate to Two 100 Amp Female Bates On 2' Tails

Lex 100 Amp Male Bate to Two 100 Amp Female Bates On 2' Tails

Stage pin splitters break out a single stage pin plug into two connectors. Splitters should never be used to pull a load greater than 100 Amps.

Specifications

• Rating: 100 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC
• Male Connector: (1) 100 Amp stage pin plug
• Cable: #4 AWG Type SC, 2'
• Female Connector: (2) 100 Amp stage pin connectors

Features

• Splitters are made with single conductor type SC cable
• Splitters feature stage pin connectors machined from high temperature phenolic material
• Double set screw terminals for secure terminations
• Stage pin connectors are ETL Listed

Downloads

Lex SP100-100 Data Sheet
