Harken TR31 Straight Rail Section - 3M

Harken TR31 Straight Rail Section - 3M

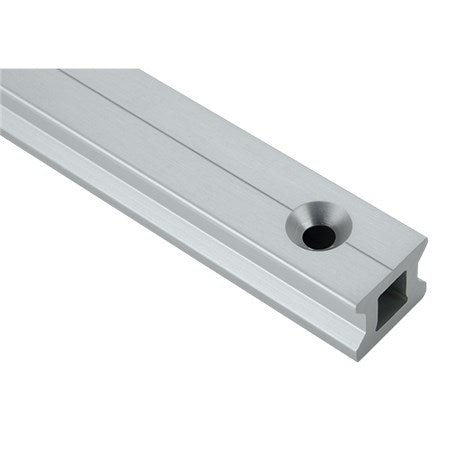

The Harken TR31 Straight Rail Section - 3M, a revolutionary component of the Tight Radius rail and trolley system designed specifically for fall protection and movable anchorage points. This straight rail section delivers exceptional performance and flexibility for various applications.

The Tight Radius rail and trolley system features a combination of straight and curved sections that seamlessly change direction in both the horizontal and vertical planes. This innovative design allows trolleys to navigate around tight radii and joints effortlessly, ensuring smooth and reliable operation.

The TR31 Straight Rail Section, with its adaptability, can be bent to accommodate directional changes with a radius of up to 350 mm (13.8"). This enables the rail to be flexibly customized to meet the specific demands of your project. Constructed from high-strength marine-grade 6061-T6 aluminum, the rail section offers outstanding durability and corrosion resistance. An anodized finish provides maximum protection, ensuring long-lasting performance even in challenging environments.

For a seamless and streamlined installation, the TR31 Straight Rail Section is equipped with countersunk M10 fasteners. These specially designed fasteners not only secure the rail section firmly but also contribute to its overall structural integrity, enhancing the safety and reliability of the system.

NOTE
Arc length is to the inside of the radius.

Specification:

• Weight:
• (g) 3840 g
• (lb) 8.47 lb
• Fasteners:
• (mm) M10 mm
• Endstop: 548
• Bend information: Straight
• Bend radius:
• (mm) 200 mm
• Arc length:
• (m) 3 m
• (ft/in) 9' 10 1/16" ft/in

Certification:

The Harken Industrial TR31 system meets ANSI Z359 and is OSHA compliant.
