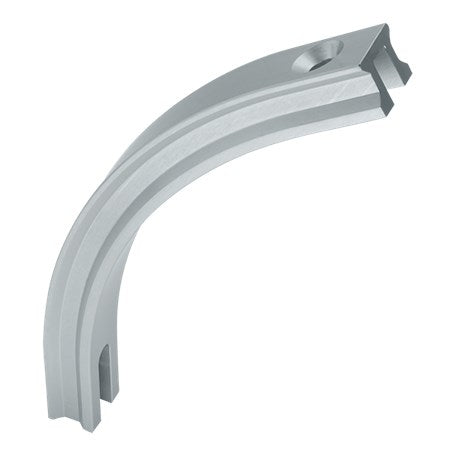

Harken TR31 Corner Rail - Vertical 60°

Harken TR31 Corner Rail - Vertical 60°

The Harken TR31 Corner Rail - Vertical 60°, an innovative solution for fall protection and movable anchorage points. This corner rail, part of the Tight Radius rail and trolley system, is engineered to provide a secure and flexible rail system for a wide range of applications.

The Tight Radius rail and trolley system features a combination of straight and curved sections that seamlessly change direction in both the horizontal and vertical planes. This design enables trolleys to glide exceptionally smoothly around tight radii and joints, ensuring optimal performance and safety.

Standard curved sections of the TR31 Corner Rail have a radius of 200 mm (7.9"), facilitating precise maneuverability around corners and curves. Constructed from high-strength marine grade 6061-T6 aluminum, the rail offers exceptional durability and corrosion resistance. It is further enhanced with an anodized finish, providing maximum protection and longevity.

For a seamless and flush fitting, the TR31 Corner Rail is equipped with countersunk M10 fasteners. These fasteners not only ensure a secure attachment but also contribute to the rail's structural integrity, resulting in a clean and streamlined appearance.

NOTE
Arc length is to the inside of the radius.

Specification:

• Weight:
• (g) 470 g
• (lb) 1.03 lb
• Fasteners:
• (mm) M10 mm
• Bend information: Vertical 60°
• Bend radius:
• (mm) 200 mm
• Arc length:
• (m) 0.28 m
• (ft/in) 11" ft/in

Certification:

The Harken Industrial TR31 system meets ANSI Z359 and is OSHA compliant.
