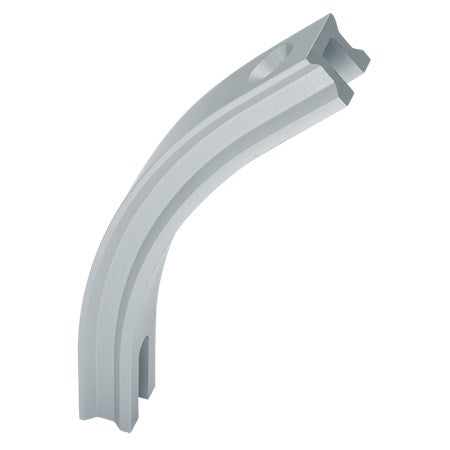

Harken TR31 Corner Rail - Vertical 45°

Harken TR31 Corner Rail - Vertical 45°

The Harken TR31 Corner Rail - Vertical 45°, a groundbreaking solution for fall protection and movable anchorage points. As part of the highly efficient Tight Radius rail and trolley system, this corner rail is meticulously designed to provide a secure and flexible rail system for various applications.

The Tight Radius rail and trolley system is engineered with a combination of straight and curved sections that seamlessly change direction in both the horizontal and vertical planes. This advanced design allows trolleys to effortlessly glide around tight radii and joints, delivering unparalleled smoothness and reliability.

The TR31 Corner Rail features standard curved sections with a radius of 200 mm (7.9"), enabling precise maneuverability around corners and curves. Constructed from high-strength marine grade 6061-T6 aluminum, the rail offers exceptional durability and corrosion resistance. An anodized finish provides maximum protection, ensuring longevity and reliability even in challenging environments.

For a seamless and flush fit, the TR31 Corner Rail is equipped with countersunk M10 fasteners. These fasteners not only secure the rail but also contribute to its structural integrity, resulting in a clean and streamlined appearance.

NOTE
Arc length is to the inside of the radius.

Specification:

• Weight:
• (g) 370 g
• (lb) 0.81 lb
• Fasteners:
• (mm) M10 mm
• Bend information: Vertical 45°
• Bend radius:
• (mm) 200 mm
• Arc length:
• (m) 0.23 m
• (ft/in) 9 1/16" ft/in

Certification:

The Harken Industrial TR31 system meets ANSI Z359 and is OSHA compliant.
