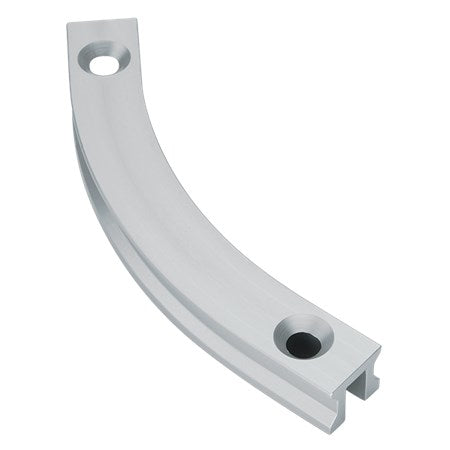

Harken TR31 Corner Rail - Horizontal 45°

Harken TR31 Corner Rail - Horizontal 45°

The Harken TR31 Corner Rail - Horizontal 45°, a breakthrough solution for fall protection and movable anchorage points. This corner rail, a key component of the Tight Radius rail and trolley system, is specifically engineered to deliver a secure and flexible rail system for various applications.

The Tight Radius rail and trolley system comprises straight and curved sections that seamlessly change direction in both the horizontal and vertical planes. This innovative design enables trolleys to glide with exceptional smoothness around tight radii and joints, ensuring superior performance and safety.

Standard curved sections of the TR31 Corner Rail boast a radius of 200 mm (7.9"), providing precise maneuverability around corners and curves. Crafted from high-strength marine grade 6061-T6 aluminum, the rail exhibits exceptional durability and resistance to corrosion. Additionally, it is meticulously anodized to offer maximum protection, ensuring long-lasting performance and endurance.

For a seamless and flush installation, the TR31 Corner Rail features countersunk M10 fasteners. These fasteners ensure a secure fit, enhancing the rail's overall structural integrity while providing a clean and streamlined appearance.

Specification:

• Weight:
• (g) 350 g
• (lb) 0.77 lb
• Fasteners:
• (mm) M10 mm
• Bend information: Horizontal 45°
• Bend radius:
• (mm) 200 mm
• Arc length:
• (m) 0.22 m
• (ft/in) 8 11/16" ft/in
