Harken TR31 Corner Rail - Horizontal 30°

Harken TR31 Corner Rail - Horizontal 30°

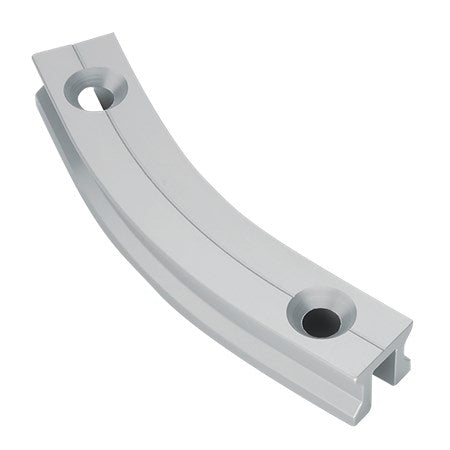

The Harken TR31 Corner Rail - Horizontal 30°, an innovative solution for fall protection and movable anchorage points. This corner rail, part of the Tight Radius rail and trolley system, is designed to provide a secure and flexible rail system for various applications.

The Tight Radius rail and trolley system is engineered with a combination of straight and curved sections, allowing for smooth directional changes in both the horizontal and vertical planes. With this advanced design, trolleys can effortlessly navigate around tight radii and joints, providing exceptional performance and safety.

Standard curved sections of the TR31 Corner Rail have a radius of 200 mm (7.9"), enabling precise maneuverability around corners and curves. Constructed from high-strength marine grade 6061-T6 aluminum, the rail offers outstanding durability and resistance to corrosion. It is further enhanced with an anodized finish, providing maximum protection and longevity.

For a seamless and sleek installation, the TR31 Corner Rail features countersunk M10 fasteners. These fasteners not only ensure a flush fit but also contribute to the rail's overall structural integrity.

Specification:

• Weight:
• (g) 260 g
• (lb) 0.57 lb
• Fasteners:
• (mm) M10 mm
• Bend information: Horizontal 30°
• Bend radius:
• (mm) 200 mm
• Arc length:
• (m) 0.17 m
• (ft/in) 6 11/16" ft/in

NOTE
Arc length is to the inside of the radius.

Certificate:

The Harken Industrial TR31 system aligns with ANSI Z359 standards and adheres to OSHA regulations.
