Harken 98mm Stainless Steel Diamond Standard Padeye

Product No. IN689

No reviews
Regular price $57.20 USD
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_express apple_pay diners_club discover facebook_pay google_pay master shopify_pay visa
Product details

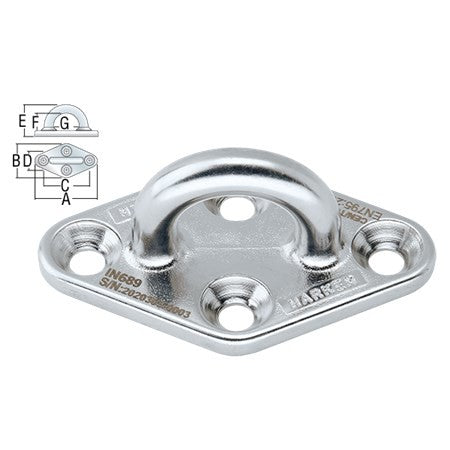

Harken 98mm Stainless Steel Diamond Standard Padeye



The Harken 98mm Stainless Steel Diamond Standard Padeye IN689 stainless steel diamond anchorage point, constructed from 316 stainless steel, is engineered for permanent installation on a structure. Its purpose is to provide a secure point for attaching anchor devices or personal protective equipment, ensuring safety when working at heights. This anchorage point offers ample space for attachments and is compatible with carabiners, allowing for unrestricted movement.

It has undergone rigorous testing and meets the standards of EN795:2012 CLASS A. The padeye is suitable for single-person use in both fall arrest and rope access applications when used with an energy absorber compliant with EN 355.



Specification:

  • Weight:
    • 213 g
    • 7.5 oz
  • Fasteners:
    • 8 FH mm
    • 5/16 FH in
  • Maximum Rated Load:
    • 15.75 kN
  • Breaking Load:
    • 63 kN
  • Maximum Number of Users:
    • 3
  • A Dimension:
    • 98 mm
    • 3 7/8 in
  • B Dimension:
    • 59 mm
    • 2 5/16 in
  • C Dimension:
    • 73 mm
    • 2 7/8 in
  • D Dimension:
    • 35 mm
    • 1 3/8 in
  • E Dimension:
    • 40 mm
    • 1 9/16 in
  • F Dimension:
    • 22 mm
    • 7/8 in
  • G Dimension:
    • 27 mm
    • 1 1/16 in
