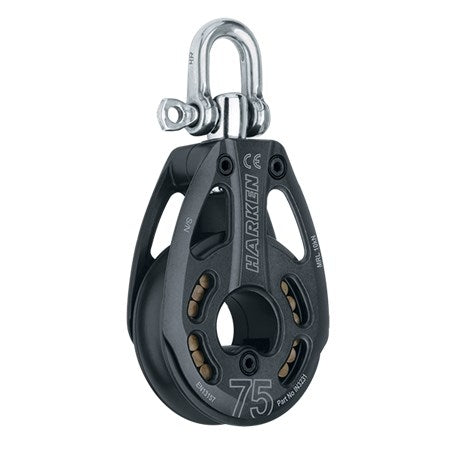

Harken 75mm Black Magic Single Pulley - Swivel

Harken 75mm Black Magic Single Pulley - Swivel

Black Magic Air pulleys excel in managing high dynamic and static loads, particularly in scenarios with friction challenges, thanks to their remarkable strength-to-weight ratios and free-rolling, high-load roller bearings. The versatile pulley shackle offers dual-direction locking or swiveling to prevent rope twisting. Maintenance is a breeze due to their simple construction, requiring no lubrication—just flush with fresh water to ensure the bearings roll freely. Rest easy with CE certification.

Specification:

• Sheave Diameter:
• 75 mm
• 2 15/16 in
• Length:
• 129 mm
• 5 1/8 in
• Weight:
• 331 g
• 0.73 lb
• Shackle Pin Diameter:
• 8 mm
• 5/16 in
• Maximum Line Diameter:
• 14 mm
• 9/16 in
• Maximum Rated Load:
• 10 kN
• 2248 lb
• Rope Type:
• Fiber

Certification

CE certified to EN13157 for hand-operated lifting equipment.
