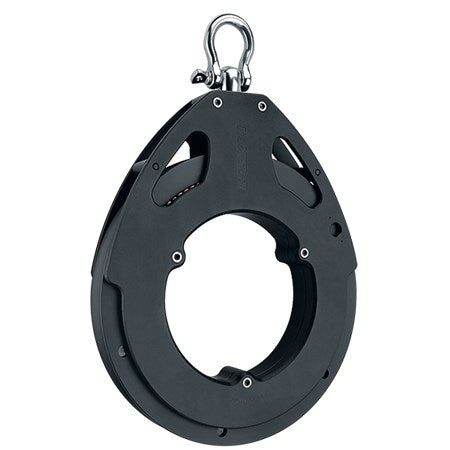

Harken 500mm Oceanic Cable Block - 8mm Cable

Harken 500mm Oceanic Cable Block - 8mm Cable

The Harken 500mm Oceanic Cable Block - 8mm Cable, a remarkable solution by Harken Industrial™. This cable block balances lightweight design with robust strength for reliable performance.

The Oceanic Cable Block is designed for ease of use, even by a single operator, thanks to its lightweight materials. Its reduced weight ensures seamless cable payout alignment, boosting overall efficiency.

With a sheave diameter accommodating large-bend radii, this block prioritizes cable protection and performance. The wide throat allows wire terminals to pass through effortlessly, ensuring unhindered operation.

Our chosen materials offer durability, low corrosion, and high strength. They're self-lubricating and anti-static, ensuring performance in challenging environments.

The Oceanic Cable Block's sideplates are hardcoat-anodized 6061-T6 aluminum, offering strength, durability, and corrosion resistance. They're also PTFE-coated, minimizing friction for smooth cable movement.

Rest assured, the Oceanic Cable Block meets UNOLS Research Vessel Safety Standards, ensuring safety in research vessel operations.


Specification:

• Sheave Ø (mm):
• 500 mm
• Sheave Ø (in):
• 20 in
• Weight:
• (lb) 42 lb
• Maximum rated load:
• (kN) 84.5 kN
• (lb) 19000 lb
• Weight (kg):
• 19 kg
• Cheek gap Ø (mm):
• 57 mm
• Cheek gap Ø (in):
• 2.25 in
• Cable Ø (mm):
• 8 mm
• Cable Ø (in):
• 0.315 in
• Root Ø (mm):
• 448.62 mm
• Root Ø (in):
• 17.662 in
