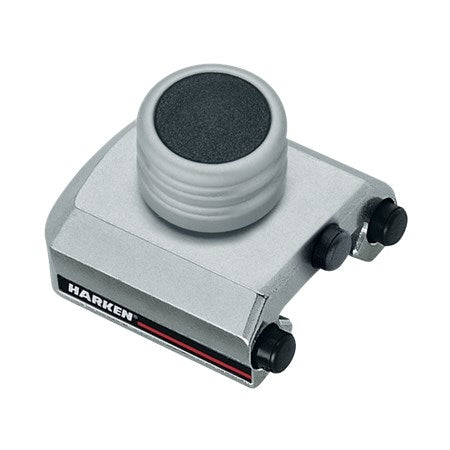

Harken 27 mm Clear-Anodized Access Rail Endstop - Pinstop
Product No. IN1642.CLEAR
Regular price
$216.60 USD
Shipping calculator
Please enter correct zip code
Payment methods
Product details
Harken 27 mm Clear-Anodized Access Rail Endstop - Pinstop
The Harken 27 mm Clear-Anodized Access Rail Endstop, your essential solution for absorbing shock loads and safeguarding trolleys from damage. Impeccably designed, these endstops act as your protective shield, ensuring optimal trolley performance.
- Crafted to Last with Corrosion Protection: Choose between black hardcoat or clear-anodized finishes for your endstop, ensuring top-tier protection against corrosion. If you're looking for something unique, special-order options in different colors are also available.
- Seamless Integration Guidelines: For mounting this endstop on the INR27.LS long-span rail, simply drill and tap a hole for M8 threads on the rail. Following these instructions guarantees a seamless and secure fit for enhanced safety.
Harken 27 mm Clear-Anodized Access Rail Endstop - Pinstop Specification:
- Length:
- (mm) 59 mm
- (in) 2 5/16" in
- Width:
- (mm) 49 mm
- (in) 1 15/16 in
- Weight:
- (g) 136 g
- (oz) 4.8 oz
- Use with track/rail: IN1643
- Height above track:
- (mm) 33 mm
- (in) 1 5/16 in
Certification
The 27mm Access Rail system is tested for safety and can be used for human suspension. The rails meet EN795.2012 Type D, ANSI Z359, and OSHA standards. Trolleys are CE certified under EN795.2012 Type B, and also meet ANSI Z359 and OSHA requirements. Remember, for CE certification, use the full 27mm Access Rail System with CE certification.
