Product details

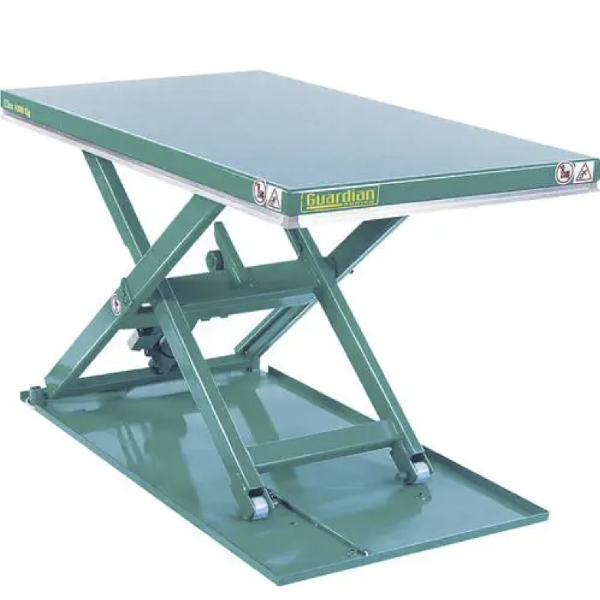

Guardian Low Profile
The Guardian Series represents the ultimate in lift table safety with features that are optional or not available on other lift tables.
Guardian Series Low Profile models have a lowered height of only 3.25". The low profile feature provides greater flexability for tall pallet applications and operator height differences. Installation costs are reduced since the need for a floor pit is eliminated.
All "Guardian" Series lift tables meet and exceed both U.S. (ANSI) and European safety standards for lift tables.
Guardian Series lift tables are designed as a work station to provide improved ergonomic conditions to ensure the health, safety and comfort of the operator together with improved productivity.
Standard Features
-
Meets and exceeds both U.S. (ANSI) and EU safety standards
-
Upper platform fitted with safety perimeter which prevents descent on contact
-
Low-tension (24V) control box with up-down buttons
-
Electric circuit reset button in case the safety perimeter is actuated
-
External power pack equipped with a relief valve against overloading
-
Compensated flow valve for controlling lowering speed
-
External power pack is supplied with 8' long hoses
-
Upper limit switch
-
115 voltage single phase standard
-
230/460 voltage three phase available
-
Single acting cylinders with drainage system
-
Check valve to stop the lift table lowering in case of hose burst
-
Safety clearance between scissors to prevent trapping during operations
-
Mechanical blocks for safe maintenance operations
-
Self-lubricating bushings on pivot points
-
Removable lifting eye(s) to facilitate installation of the lift table
Options
- Ramps
- Hinged Ramps
- Stainless Galvanized
- Foot Controls
Specifications
| Model | Vertical Travel |
Capacity | Height | Platform Size |
Base Frame |
Up Speed |
|
|---|---|---|---|---|---|---|---|
| Lower | Upper | ||||||
| LPBL-10-1 | 30.75" | 1,100 lbs | 3.25" | 34" | 31.5" x 55" | 29.5" x 52.75" | 10 sec |
| LPBL-10-2 | 30.75" | 1,100 lbs | 3.25" | 34" | 39.5" x 55" | 29.5" x 52.75" | 10 sec |
| LPBL-20-1 | 30.75" | 2,200 lbs | 3.25" | 34" | 31.5" x 55" | 29.5" x 52.75" | 18 sec |
| LPBL-20-2 | 30.75" | 2,200 lbs | 3.25" | 34" | 39.5" x 55" | 29.5" x 52.75" | 18 sec |
| LPBL-30-1 | 29.5" | 3,300 lbs | 3.63" | 33.13" | 31.5" x 61" | 29.5" x 52.75" | 25 sec |
| LPBL-30-2 | 29.5" | 3,300 lbs | 3.63" | 33.13" | 39.5" x 61" | 29.5" x 52.75" | 25 sec |
