Lift Products Inc Guardian Lift-N-Spin
Product No. LPBL-20-2-LS
🎄 Due to the busy Christmas period, please note that orders placed between Monday 16th December and Thursday 2nd January may take longer than usual to be delivered.
Shipping calculator
Payment methods
Product details

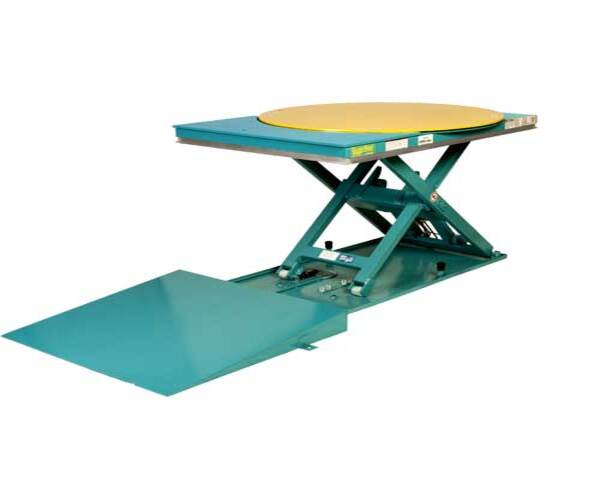

Guardian Lift-N-Spin
With a lowered height of only 4.25", The Lift-N-Spin can be loaded with a manual or electric pallet truck. This is accomplished by the exclusive auto-transition plate which provides a smooth surface from the ramp onto the rotating top. Once the lift is raised 1/4" the plate automatically lowers to allow the spinning of the rotating top. When the table is fully lowered, the plate automatically raises again to provide a smooth surface to load the next pallet.
The Lift-N-Spin has a raised height of 35" providing an ideal height for work positioning applications. The rotating top avoids the need to walk around or reach across.
The Remote Power Unit features a 1 HP motor. This is a highly efficient and quiet pump motor combination. A three-button control box has 115-volt single phase and runs on a 20 amp circuit. 230/460 3 phase is optional.
Standard Features
- Meets and exceeds both U.S. (ANSI) and European safety standards
- Upper platform safety perimeter bar prevents descent on contact
- Electric circuit reset button in case the safety perimeter is actuated
- Low-tension (24V) control box with up-down buttons
- External power pack equipped with a relief valve against overloading
- Remote Power Unit supplied with 8' long hoses
- Compensated flow valve for controlling lowering speed
- Mechanical blocks for safe maintenance operations
- 115 voltage single phase standard
- Upper limit switch
- Single acting cylinders with drainage system and check valve
- Safety clearance between scissors to prevent trapping during operation
- Self-lubricating bushings on pivot points
- Removable lifting eye(s) to facilitate handling and installation
Options
-
Ramps
- Square Top
- Swing Gate
- Steel-It Paint
| Base Model |
Vertical Travel |
Capacity | Height | Platform Size |
Up Speed |
Base Frame |
Motor | Voltage | |
|---|---|---|---|---|---|---|---|---|---|
| Lower | Upper | ||||||||
| LPBL-20-2-LS | 30.75" | 2,000 lbs | 4.25" | 35" | 45" Dia. | 18 sec | 29.5" x 52.75" | 1HP | 115 |
