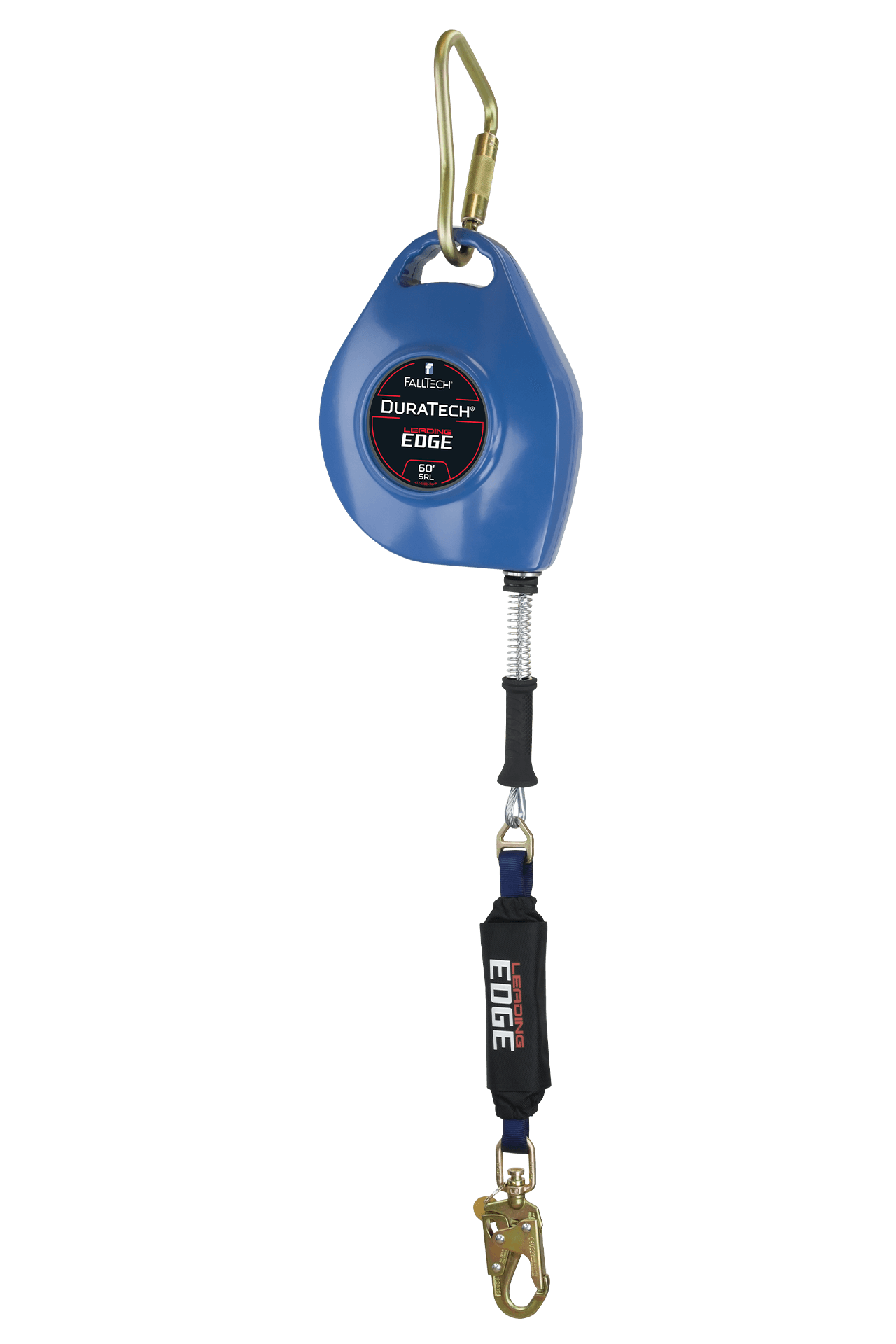

DuraTech® Leading Edge SRL with 60' Galvanized Steel Cable and Aluminum Housing
Product No. 7265CLE
Regular price
$960.31 USD
Shipping calculator
Please enter correct zip code
Payment methods
Product details
DuraTech® Leading Edge SRL with 60' Galvanized Steel Cable and Aluminum Housing
FEATURES
- 7/32" galvanized steel cable lifeline with load-indicating swivel snap hook
- Internal inertial braking system with dual disc brakes provides superior deceleration.
- Integrated external ViewPack® energy absorber enhances braking system and preserves lifeline integrity
- Side-payout housing design and lifeline recoil spring deliver smooth operation and help reduce nuisance lock-up
- Integrated lifeline hand-grip simplifies dorsal connection
- Stackable aluminum housing design and handle provide easy installation and storage
- Includes extra large anchorage carabiner with 2-1/4" gate opening
- Complies with ANSI Z359.14-2021 Class 2 SRL. Learn more and download White Paper
MATERIAL SPECIFICATIONS
Cable: 7/32" galvanized steel; 3,600 lb min. static strength
Energy Absorber: Polyester tear-away
Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
PERFORMANCE SPECIFICATIONS
Static Strength: 3,600 lb min.
ANSI SRL Class/Type: Class 2 SRL
Avg. Arrest Force: 1,350 lb
Max. Arrest Force: 1,800 lb
Max. Arrest Distance: 42"
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 310 lb max.
SIZES & PART NUMBERS
- 7226CLE - 15'
- 7227CLE - 20'
- 7232CLE - 30'
- 7268CLE - 50'
- 7265CLE - 60'
DOWNLOADS
COMPLIANT WITH:
ANSI Z359.14-2021
OSHA 1926.502 and 1910.66
